Modify Settings | Global Settings | Barcode Settings | Barcode

Configuration

Barcode Configuration is used to define the relationship of barcodes and how they are

grouped together for transmitting to the host. It also defines the formatting of no read,

multiple reads, partial reads and duplicate messages.

To edit the Barcode Configuration:

1. In the menu tree under Modify Settings, navigate to Global Settings | Barcode

Settings | Barcode Configuration. The Barcode Configuration window opens.

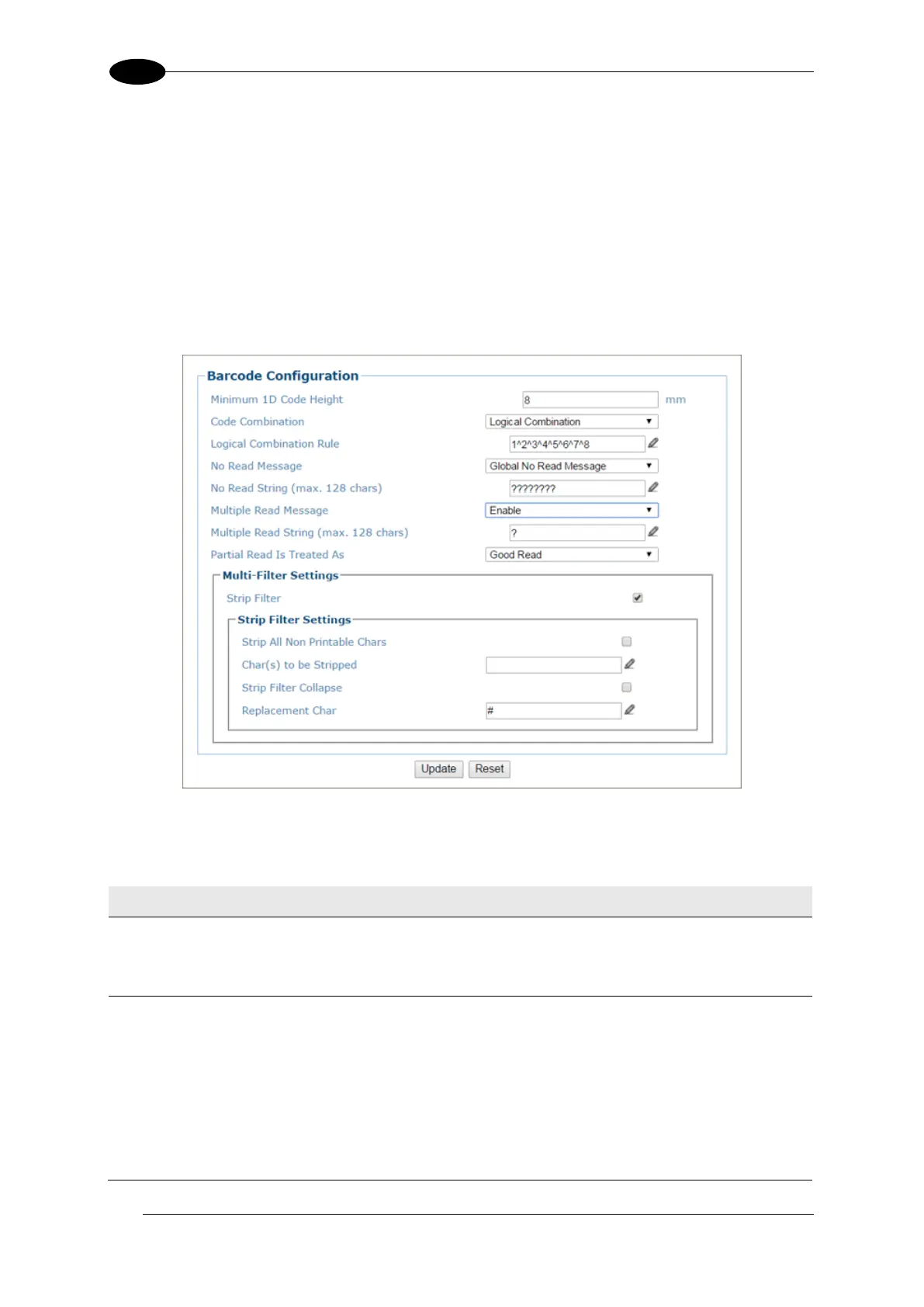

2. Enter the appropriate information in the form as described below:

Field Name

Action/Definition

Minimum 1D

Code Height

Enter the minimum height of codes the system is expected to read. This parameter

defines the minimum height of the barcode the AV7000 will read.

The minimum height is 6 mm [.25 in].

Code

Combination

Select Single Label, Standard Multi Label, Logical Combination, or Code

Collection from the drop-down list. The Code Combination parameter selects the

decoding mode for the barcode reader. Follow these links for each type of Code

Combination to view its specific inputs: Barcode Configuration | Single Label,

Barcode Configuration | Standard Multi Label, Barcode Configuration | Logical

Combination, Barcode Configuration | Code Collection

 Single Label: In Single Label mode only one barcode can be read in each

reading phase; however it can be determined automatically from up to 10

enabled codes. The barcode reader stops decoding as soon as a code is read.
