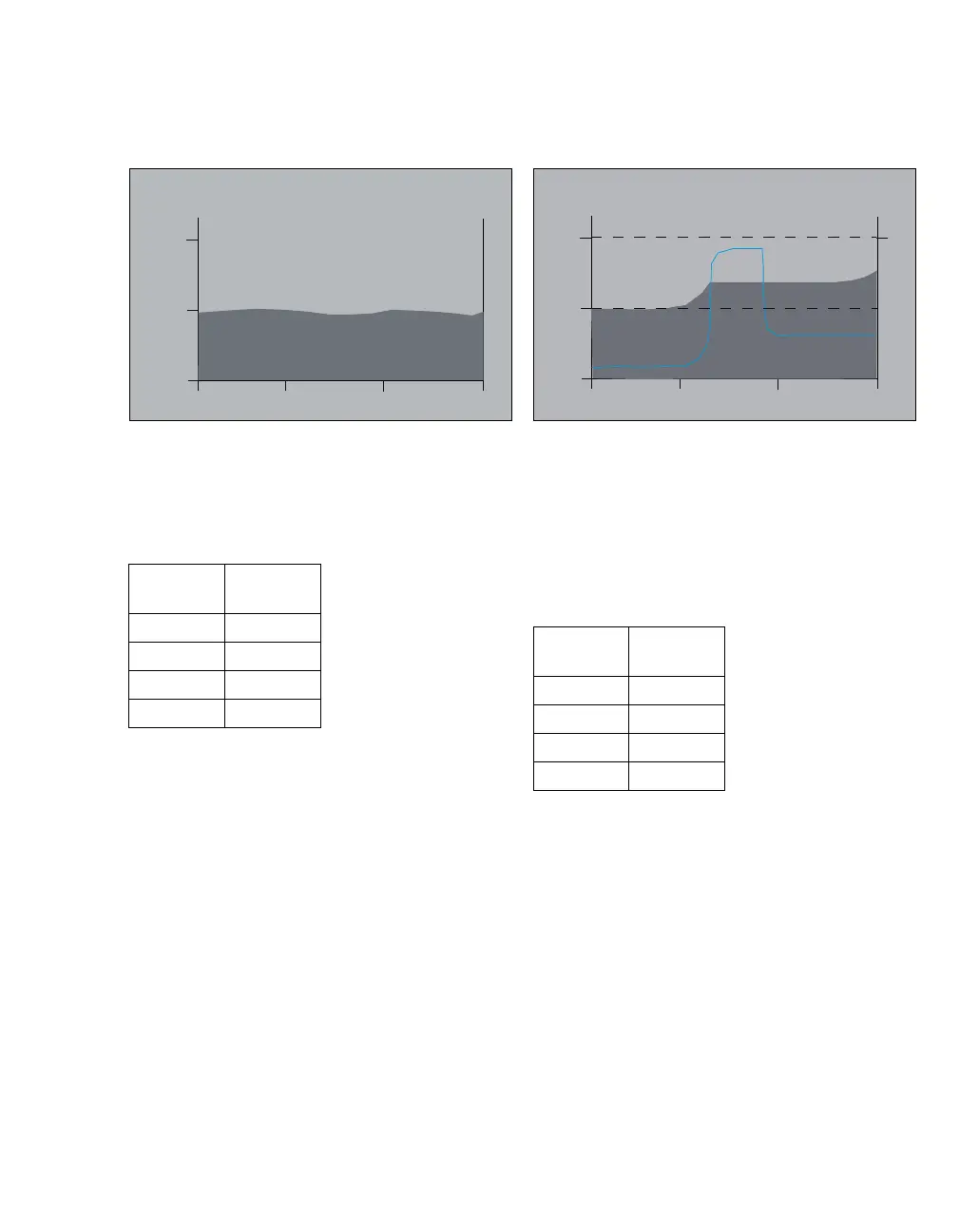

Mini trend for O2 uptake
This mini trend displays the difference between the
inspiratory and the expiratory oxygen concentration
over 15 minutes.
The scaling depends on the expiratory tidal volume
VT and is automatically adjusted.
Mini trend for CPAT/PEEP
This mini trend displays the parameters PEEP and
CPAT over 15 minutes.
PEEP is displayed as a line, patient compliance
C
PAT as filled curve.
The scaling for PEEP is set to 20 mbar.
The scaling for C
PAT depends on the expiratory
tidal volume V
T and is automatically adjusted.
