Instructions for use Primus Infinity Empowered SW 4.5n 57
Assembly and preparation
Primus Infinity Empowered as a wall/ceiling device (optional)
Characteristics – wall device
The wall device is permanently installed and can be
delivered as a left swiveling or right swiveling ver-
sion.
Optionally, a shelf can be mounted above the an-
esthesia device, which, if required, can be addition-
ally supplemented by a drawer.

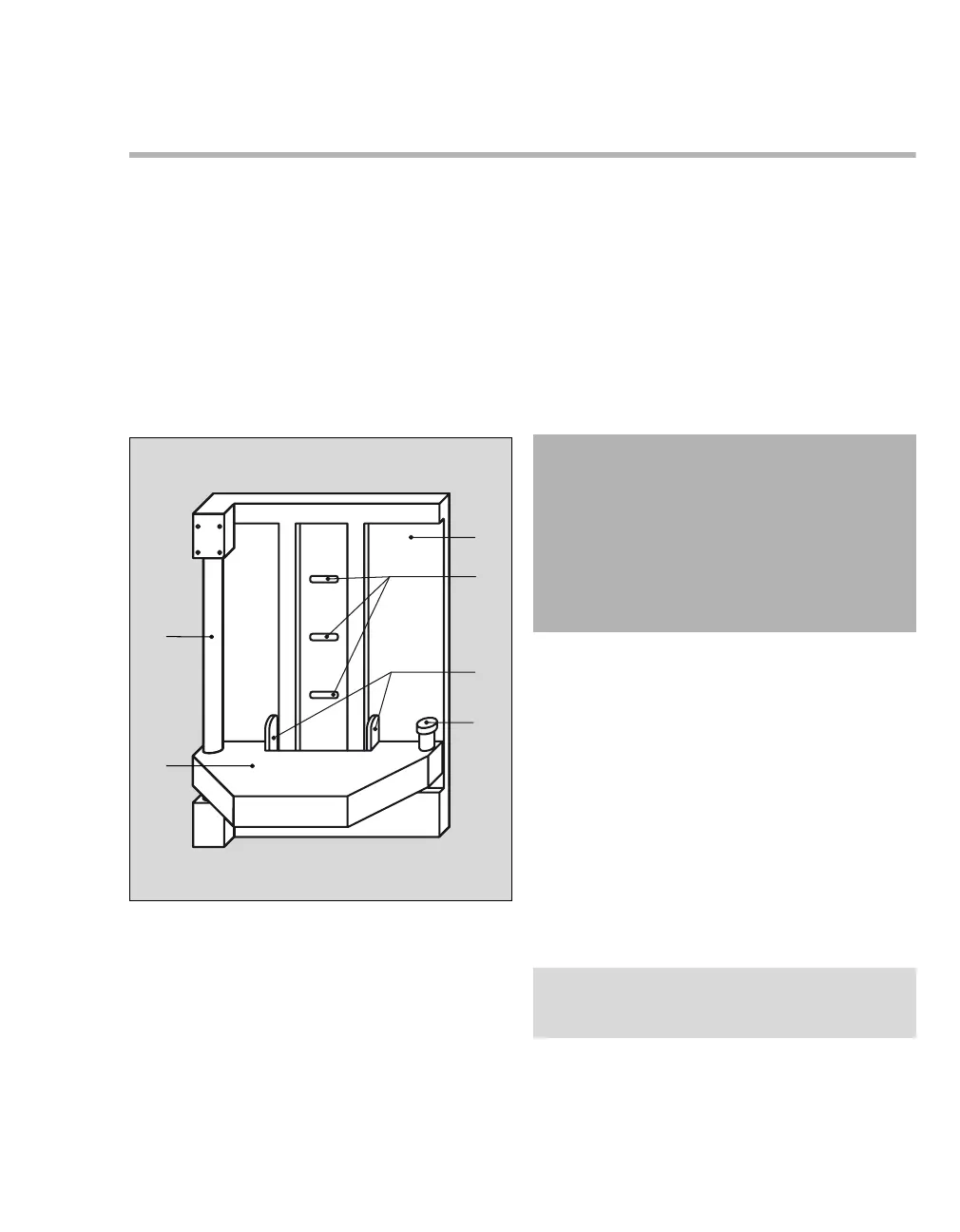

Structure of wall holder:
A Wall plate
B Cable rest
C Angle brackets
D Release knob
E Swivel shelf
F Swiveling axis
Access to the back of the device
z The Primus Infinity Empowered can be
swiveled up to 90° from the wall.
Pull the release knob (D) and swivel the an-
esthesia device up to a maximum of 90° using
the handle of the Primus Infinity Empowered.
Depending on which side of the wall mount sup-
port the swiveling axis (F) is on, the release
knob (D) can be found on the left or right side.
z Connect the gas supply and the electrical con-
nections, see page 59 and page 70.
z Connect potential equalization cable.
z To route the cable, use the cable rest (B) on the
wall mount.
After work is completed on the back of the de-
vice
z Swivel the device to the wall again until the re-
lease mechanism clicks into the locked position.
z Make certain that Primus Infinity Empowered is
securely fixed to the wall by pulling slightly.
008
F
E
A
B
C
D
CAUTION
Risk of collision
Options or accessories mounted on the side
swivel arm may collide with other objects or per-
sons in the operating theater during positioning
and/or operation.
Take special care when positioning the anesthe-
sia machine.
NOTE
Always place the device in the wall position – this
is space-saving and a protection against damage.
