Assembly and preparation
56
Instructions for use Primus Infinity Empowered SW 4.5n

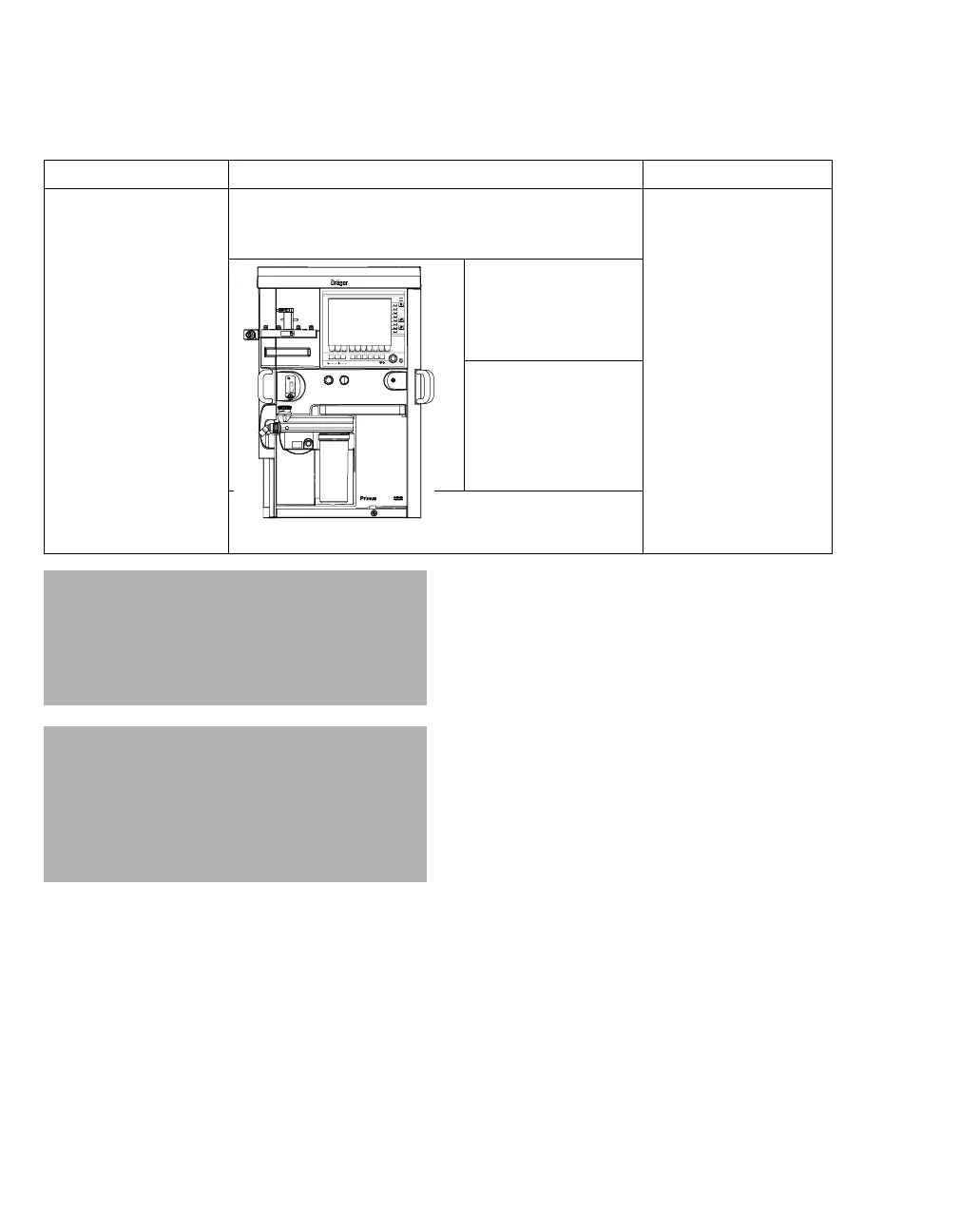

Wall device and ceiling device
Left side Top, front and rear of device Right side
The maximum permis-
sible weight of acces-
sories is 25 kg (55 lbs).
The maximum permissible weight of accessories on
the top cover of the device is 20 kg (44 lbs).
The maximum permis-
sible weight of accesso-
ries is 25 kg (55 lbs).
The maximum load on
the pull-out writing ta-
ble is 10 kg (22 lbs).
A maximum load of
15 kg (33 lbs) may be
applied with a clear-
ance of max. 40 cm
(16 in) in the upper po-
sition on the lateral
mounting rail.
A maximum load of
15 kg (33 lbs) may be
applied with a clear-
ance of max. 40 cm
(16 in) in the upper po-
sition on the lateral
mounting rail.
The maximum load on
the lateral standard
rail is 5 kg (11 lbs).
The remaining weight
must be applied at a
distance of 10 cm
(4 in) max.
The remaining weight
must be applied at a
distance of 10 cm (4 in)
max.
If required, other accessories must be attached to the
wall rails.
CAUTION
Risk of injury
If mounting accessories exceed the approved lim-
its, the anesthesia machine may tip over.
Maximum weight per arm = 15 kg (33 lbs).
CAUTION
Risk of inadvertent movement
If not properly secured, the device may move in-
advertently during operation.
Apply the brakes on the device to ensure it cannot
be moved accidentally.
