Getting started
86
Instructions for use Primus Infinity Empowered SW 4.5n
A APL valve
B AGS
C PEEP/P
MAX valve
D P
AW sensor
E Exp. valve
F Exp. flow sensor
G Insp. flow sensor
H Mechanical pressure gauge (optional)
I Insp. valve
J Piston pump ventilator
K Fresh-gas decoupling valve
L CO
2 absorber
M Vaporizer
N Fresh gas
O Breathing bag

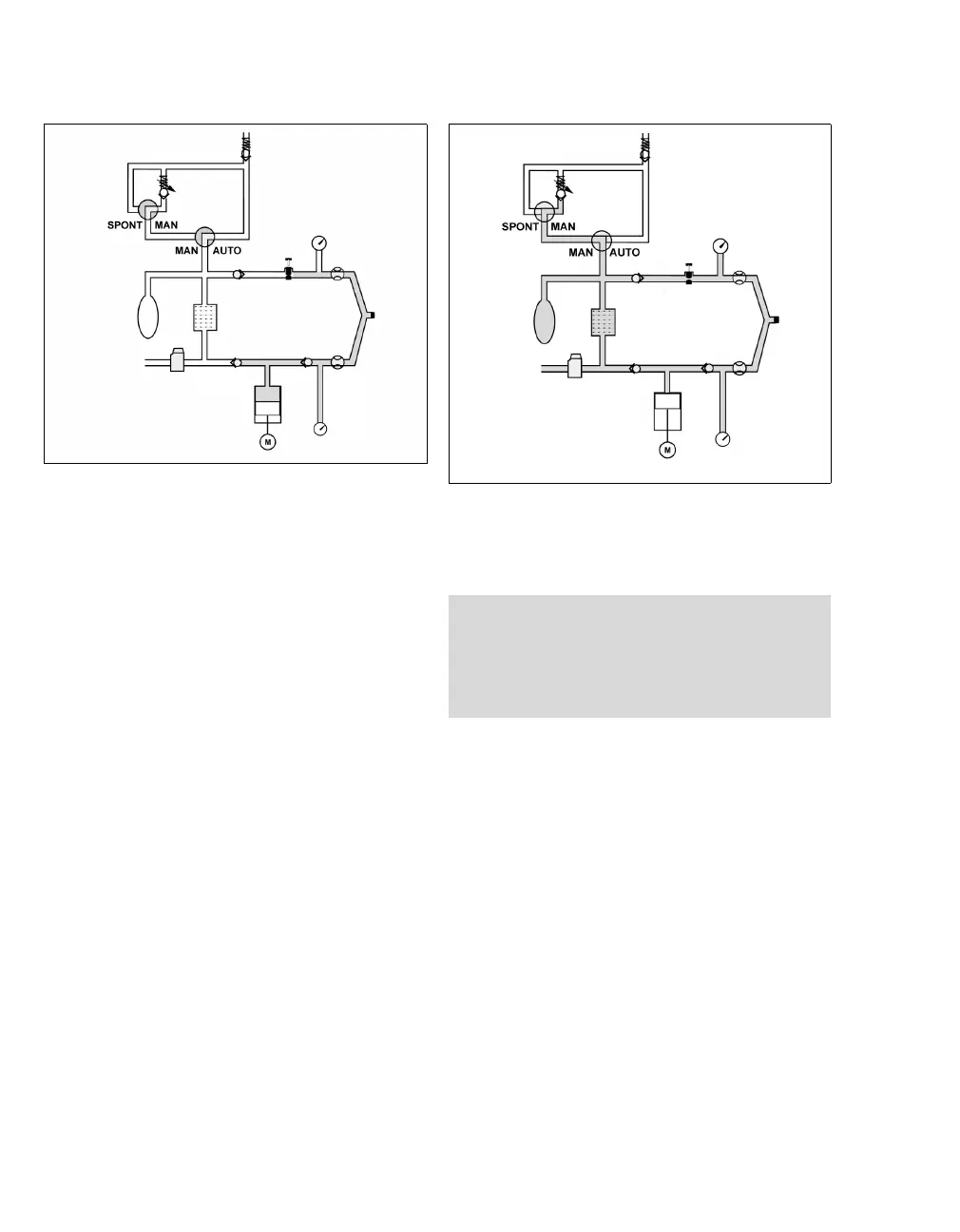

Leakage Man. Spont.
– Leak test in the complete system.
– Indication of leakages >150 mL/min and with
red/yellow/green test result indicator.
Primus Infinity Empowered determines the current
leakage of the breathing system and breathing
hoses. The system tolerates leaks of up to 150 mL/
min.
Locating and eliminating leakages
The self test incorporates a leak test. If this test is
not passed, the leaks must be remedied before
continuing the test by pressing the rotary knob.
A leak test can also be carried out later in Standby
with the leak test key, see page 123.
094
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
095
NOTE
For leaks of more than 150 mL/min:
Check the components of the breathing system
and the breathing hoses. Repair any leaks and re-
peat the leak test.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
