Connecting the electrical connections
Connecting auxiliary devices
The Primus Infinity Empowered has two auxiliary
outlets on the rear of the machine. Each outlet is
rated 3 amps and protected by safety fuses.
There is also a dedicated auxiliary power outlet for
a Desflurane vaporizer on the side of the machine,
above the vaporizer mount (see item V on
page 20). This outlet is protected by safety fuses.
In addition there is a 4 amp automatic circuit
breaker for the outlet for a Desflurane vaporizer.

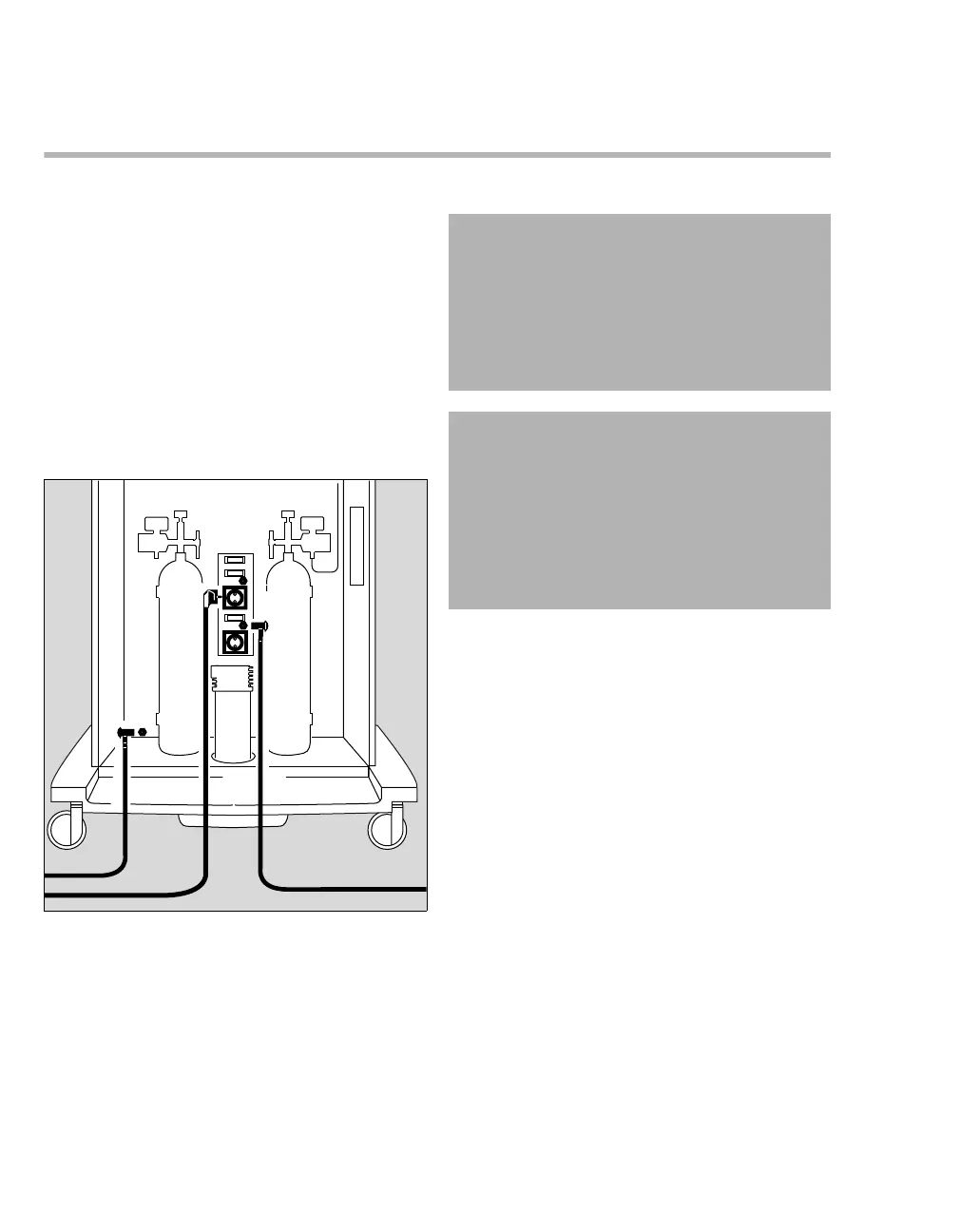

1 Connect to auxiliary outlets (A) at the back of
the workstation.
2 Install the Desflurane vaporizer in its mount and
connect it to the outlet on the side of the ma-
chine, see page 79.
Make sure the maximum power consumption of the
auxiliary systems does not exceed permissible val-
ues: See the corresponding instructions for use.
101
A
CAUTION
Risk of device failure
In the event of a power failure, any devices con-
nected to auxiliary power outlets will not be pow-
ered by the UPS.
Pay special attention to all power indicators of
connected devices.
CAUTION
Risk of device failure
If HF surgical devices are connected to the auxil-
iary outlets, the leakage current may influence the
electronics of the anesthesia machine causing it
to fail.
Do not connect HF surgical equipment to the an-
esthesia machine’s auxiliary outlets.
