20 Instructions for use Primus Infinity Empowered SW 4.5n
Overview

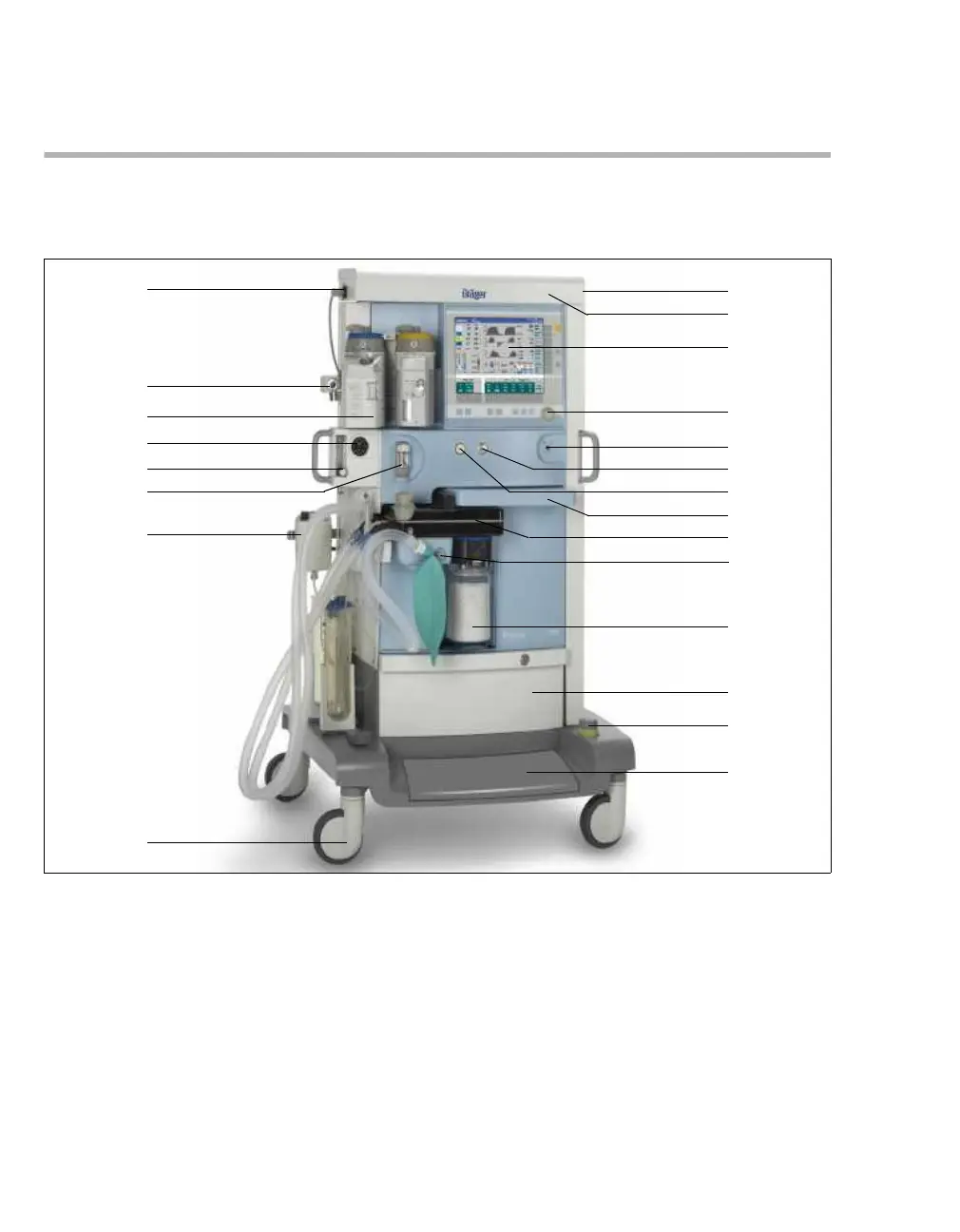

Components
Front
A Lighting control (dimmer)
B Top shelf (for external monitors)
C Screen with user interface
D Rotary knob
E System power switch
F O
2 emergency delivery
G Button for O2 flush O2+
H Writing table
I Breathing system
J Release button for ventilator module
K Disposable absorber Drägersorb CLIC
(or reusable absorber)
L Drawer
M Central brake
N Footrest
O Castors
P Endotracheal aspiration system (optional)
Q Water trap with sample line connection
R Auxiliary oxygen flow tube (optional)
S Mechanical pressure gauge (optional)
T Vapor units with Interlock system
U Ext. fresh-gas outlet (optional)
V Auxiliary power outlet (for desflurane vaporizer)
001
C
D
E
F
G
H
I
J
K
V
U
T
Q
P
O
L
M
S
R
A
B
N
