Instructions for use Primus Infinity Empowered SW 4.5n 229
Cleaning, disinfection and sterilization
Assembly
Visual inspection
z Inspect all parts for damage and wear, e.g.
cracking, embrittlement or major hardening and
residual soiling.
z If necessary, use a dry cloth to remove residual
cleaning agent and disinfectants from the valve
plate, the ventilator module, and the pins of the
breathing system heating.

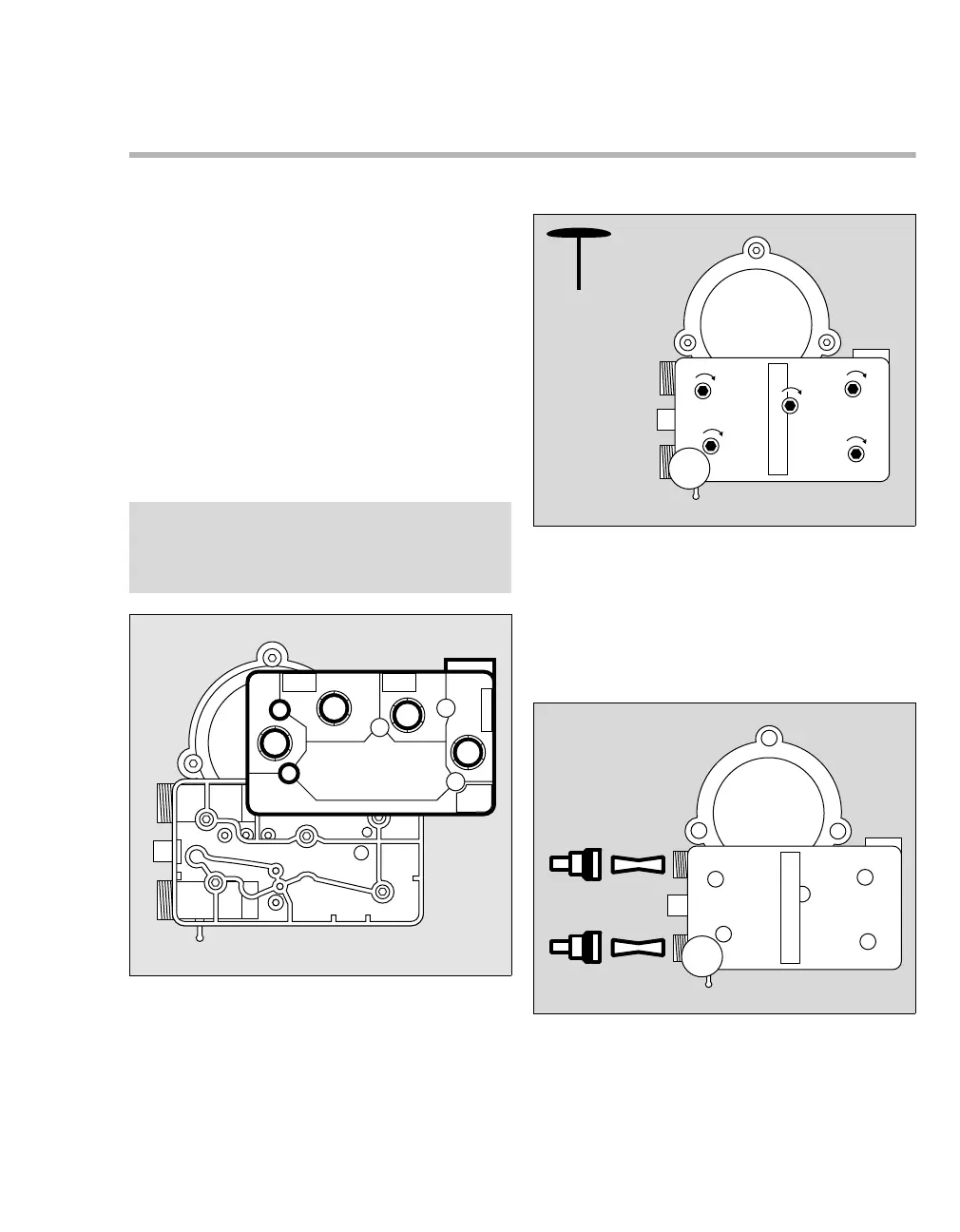

Installing the breathing system
1 Place the metal valve plate (breathing system
block) (A) on a flat surface.
2 Fit the metal valve plate (B) onto the bottom
section.
3 Tightly fit the cover.
4 Tighten all five sealing screws (C) a quarter turn
clockwise using the key (D) supplied.
Inserting the flow sensors
1 Insert the flow sensors (A) with the electric con-
nection in the slot.
2 Push in the expiratory and inspiratory ports (B),
with the nose of the port in the slot.
NOTE
Make sure that all blue rubber seals are correctly
fitted in the bottom section of the breathing sys-
tem.
074
A
B
081072
C
D
C
C
C
C
AB
