22 Instructions for use Primus Infinity Empowered SW 4.5n
Overview

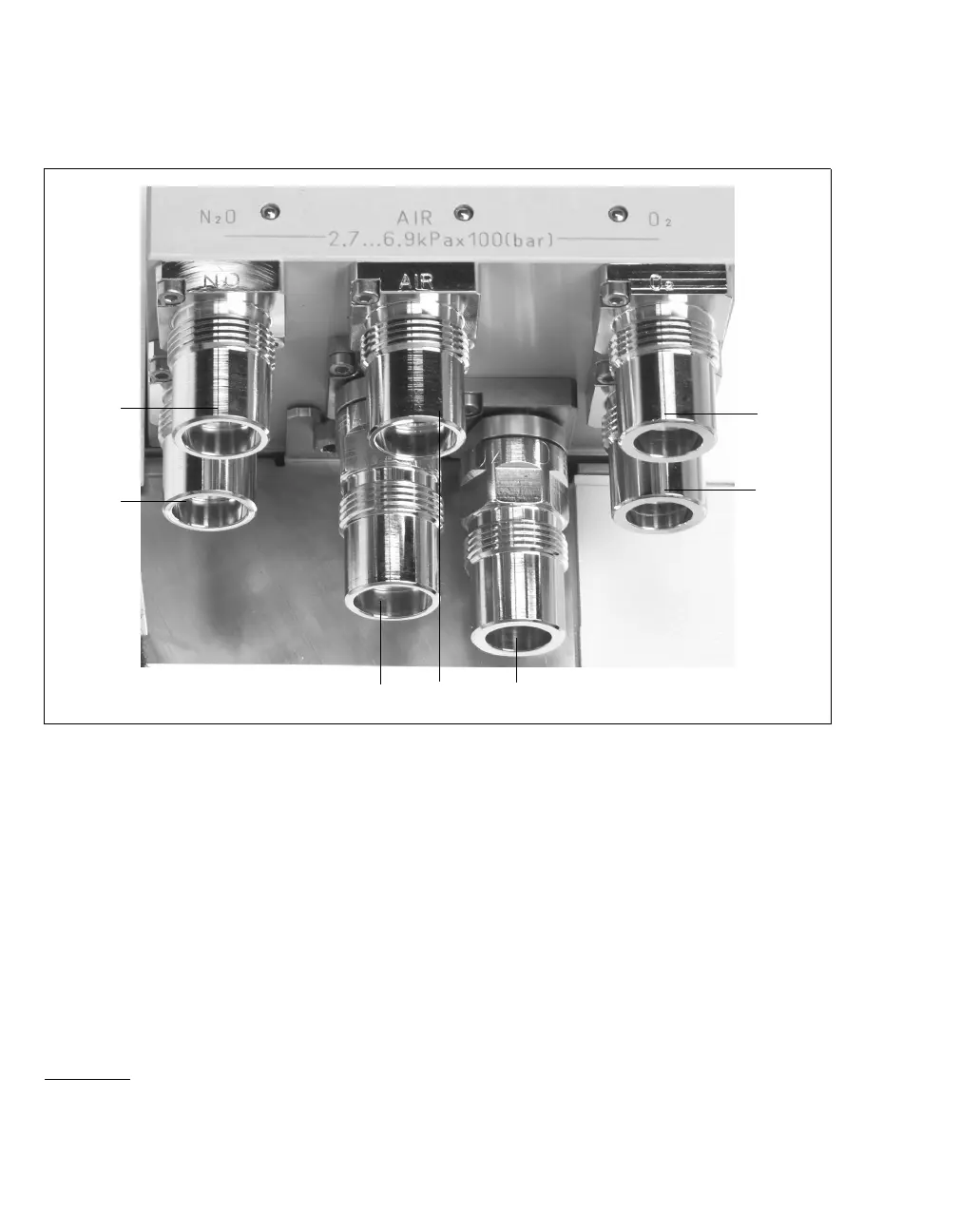

Gas inlets
A Connection for central gas supply O2
B Connection for O2 cylinder
C O2 outlet for external O2 flow tube (optional)
D Connection for central gas supply AIR
E AIR outlet for endotracheal aspiration system
(optional)
F Connection for N
2O cylinder*
G Connection for central N
2O gas supply*
003
A
B
F
ED C
G
* This connection is not available with the "Operation with-
out nitrous oxide" option.
