Instructions for use Primus Infinity Empowered SW 4.5n 69
Assembly and preparation
Connecting the flexible arm for the breathing bag (optional)
The flexible arm connects the breathing bag to the
breathing system. It is used to define the position of
the breathing bag.

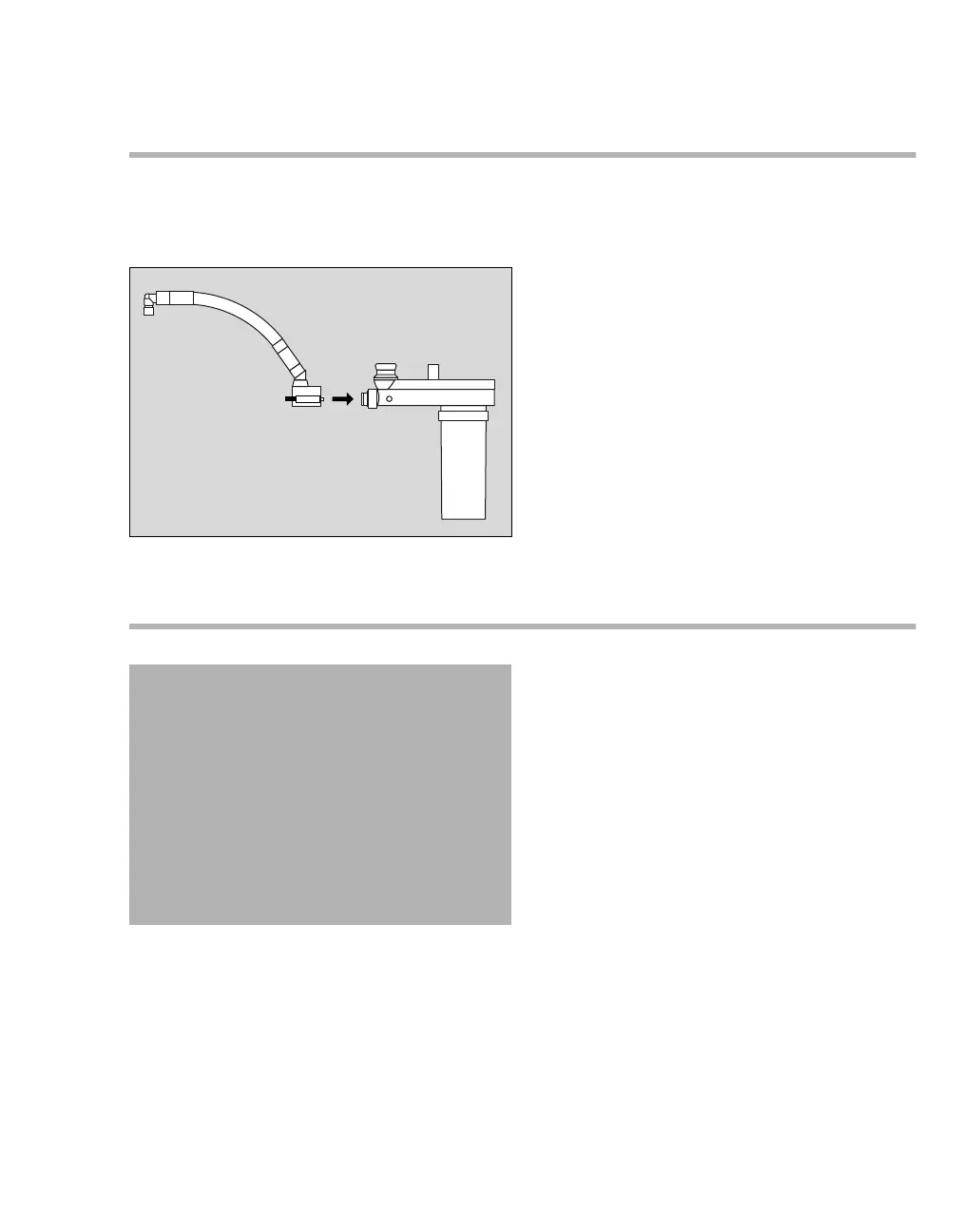

Positioning the flexible arm and the breathing
bag
1 If fitted: Remove the connection port (A) for the
breathing bag from the breathing system.
2 Position the attachment piece of the arm (B) on
the breathing system and tighten it with the two
knurled screws. Check that the arm is fixed se-
curely!
3 Attach the 90° elbow (C) to the end of the flexi-
ble arm.
4 Attach the breathing bag to the other end of the
elbow.
Park holder for vaporizer units (optional)
009
B
A
C
CAUTION
Risk of ambient environment contamination and
patient injury
The parked vaporizer may be mistakenly opened
if the parking holder is positioned immediately
next to the vaporizer mount on the anesthesia
machine.
To avoid contaminating the ambient environment
and endangering the patient, always double-
check to make sure the correct vaporizer is being
opened before doing so.
