Operating concept
LED indicators of the device

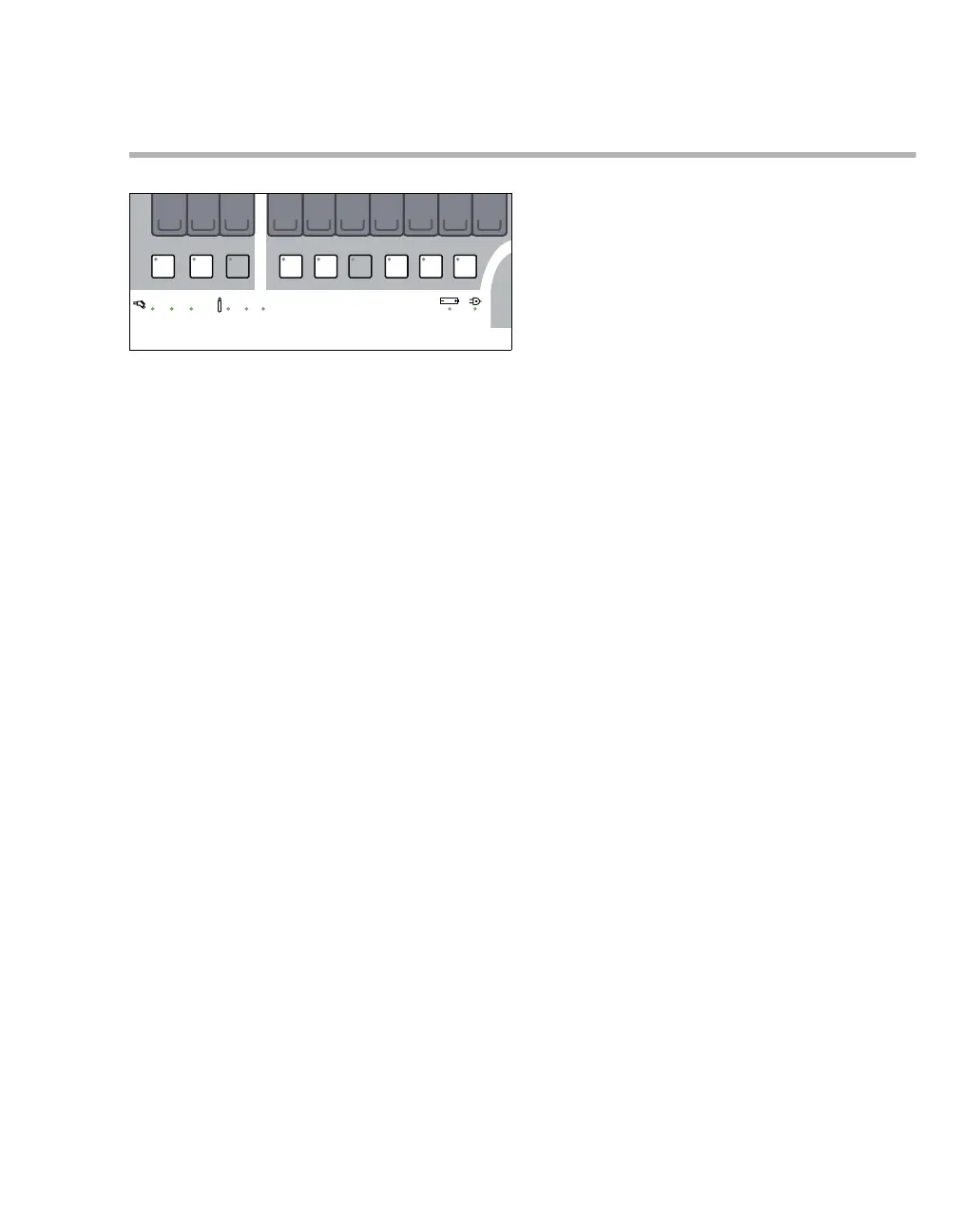

To display the status of the gas and power supply of
the Primus Infinity Empowered, several LED indica-
tors are located at the bottom of the screen.
A Central gas supply (CS)
B Reserve gas cylinders
C Power supply
Primus Infinity Empowered can be supplied via
the mains power or via a battery. The LED of the
active power supply lights up green.
370
LED lights up
green
CS line is connected and the
pressure is within the specified
range
LED off The pressure is not within the
specified range or no CS line is
connected
LED flashes
green
Malfunction of the corresponding
input pressure reducer
O 2 Air N 2 OO 2 Air N 2 O
AB C
LED lights up
green
Reserve gas cylinder is con-
nected and the pressure is within
the specified range
LED flashes
red
Reserve gas cylinder is con-
nected, but the pressure is not
within the specified range and no
central gas supply is connected.
LED off Reserve gas cylinder is con-
nected, but the pressure is not
within the specified range,
the central gas supply is con-
nected and within the specified
range.
Or
no reserve gas cylinder con-
nected.
