Battery charging system
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_6_2.26.1.html[11/12/2015 18:40:20]
Important

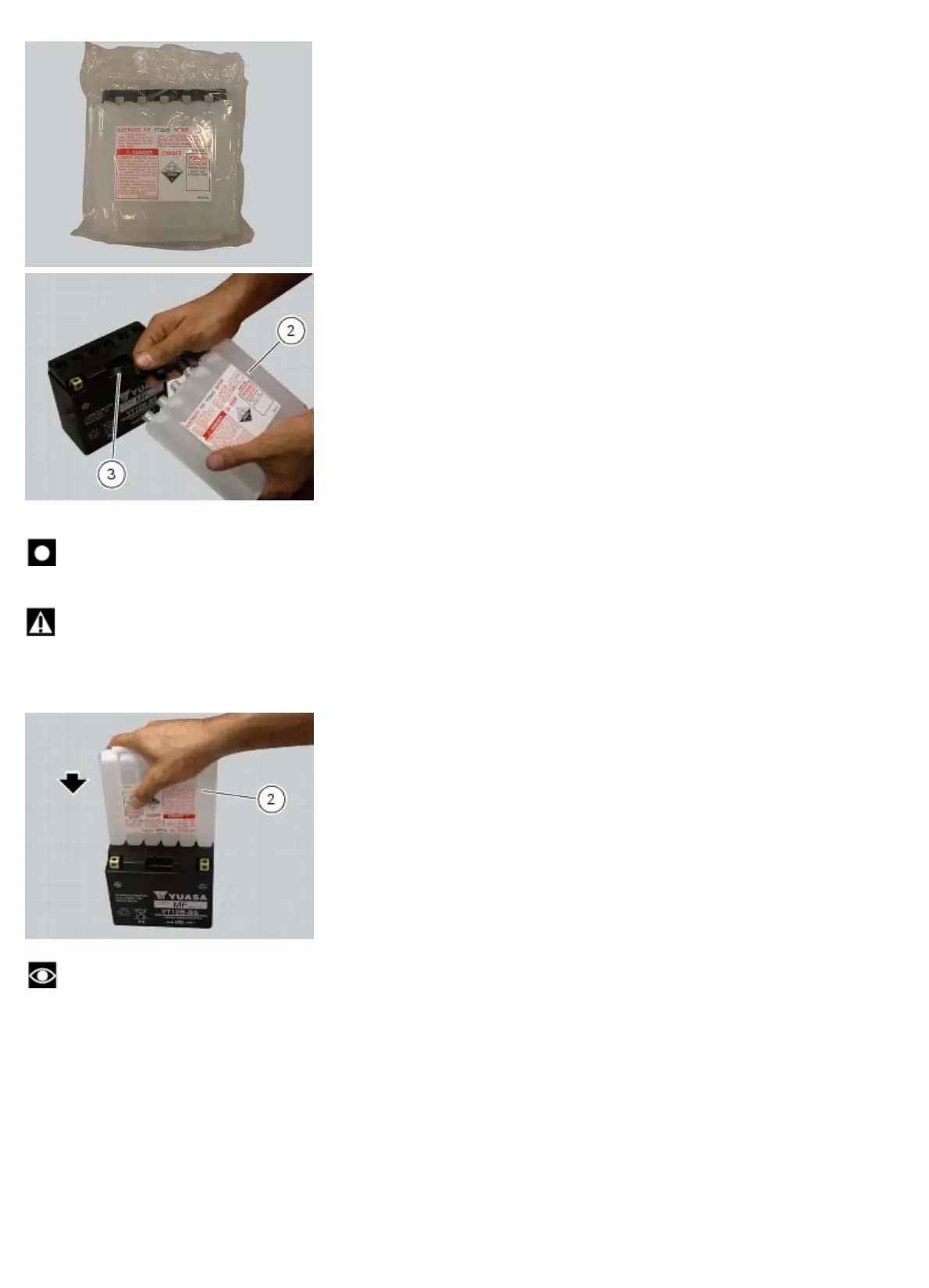

Keep the cap strip (3) to hand because it will be used later as plugs for the battery cells.
Warning
Do not peel or perforate the sealed areas.
Place the electrolyte container (2) upside down. Align the six sealed elements with the six filler holes on the battery.
Push the container (2) downwards with sufficient force to break the seals and allow the liquid to flow out.
Note
Do not tilt the electrolyte container as this could interrupt the flow temporarily or even permanently.
Make certain that air bubbles emerge from all six filler holes. Leave the container in this position for at least twenty
minutes. If no bubbles emerge from one of the holes, tap gently on the bottom of the respective container.
