Protection and safety devices
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_6_6.30.1.html[11/12/2015 18:40:23]
Note
The same test may be done using the “DDS” tester (Sect. 6 - 13, DDS diagnosis instrument).

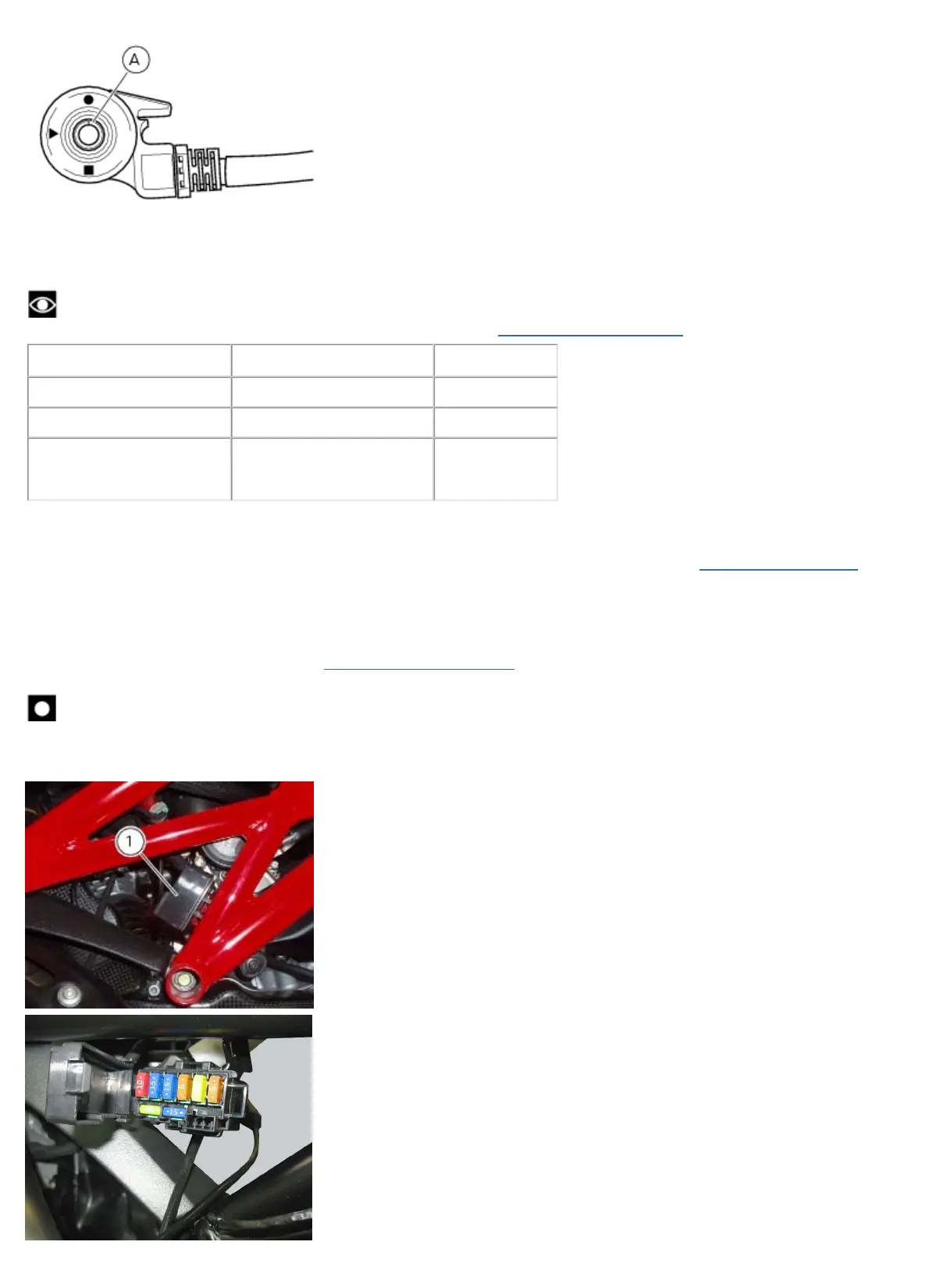

Pos. pin (A) El. item Rating.
l - s 0 X
s - n X 0
Multimeter pos. Green/
Green
White
Green/
Yellow
Black
0 = Open contact
X = Closed contact
Refit switch (1) to side stand and tighten the screw (2) to a torque of 5 Nm ±10 (Sect. 3 - 3,
Frame torque settings).
Checking the fuses
The main fuse box (1) is located on the right-hand side of the frame.
The fuses are accessed by removing the cover, which shows the ampere ratings and mounting locations.
For ampere ratings, refer to the chapter “
Routing of wiring on frame”, Sect. 6 - 1.
Important
Before replacing a damaged fuse with a new one of the same rating, identify the cause of the problem.
A blown fuse can be identified by the breakage of inner filament (A).
