7 -Instruments
Instrument panel

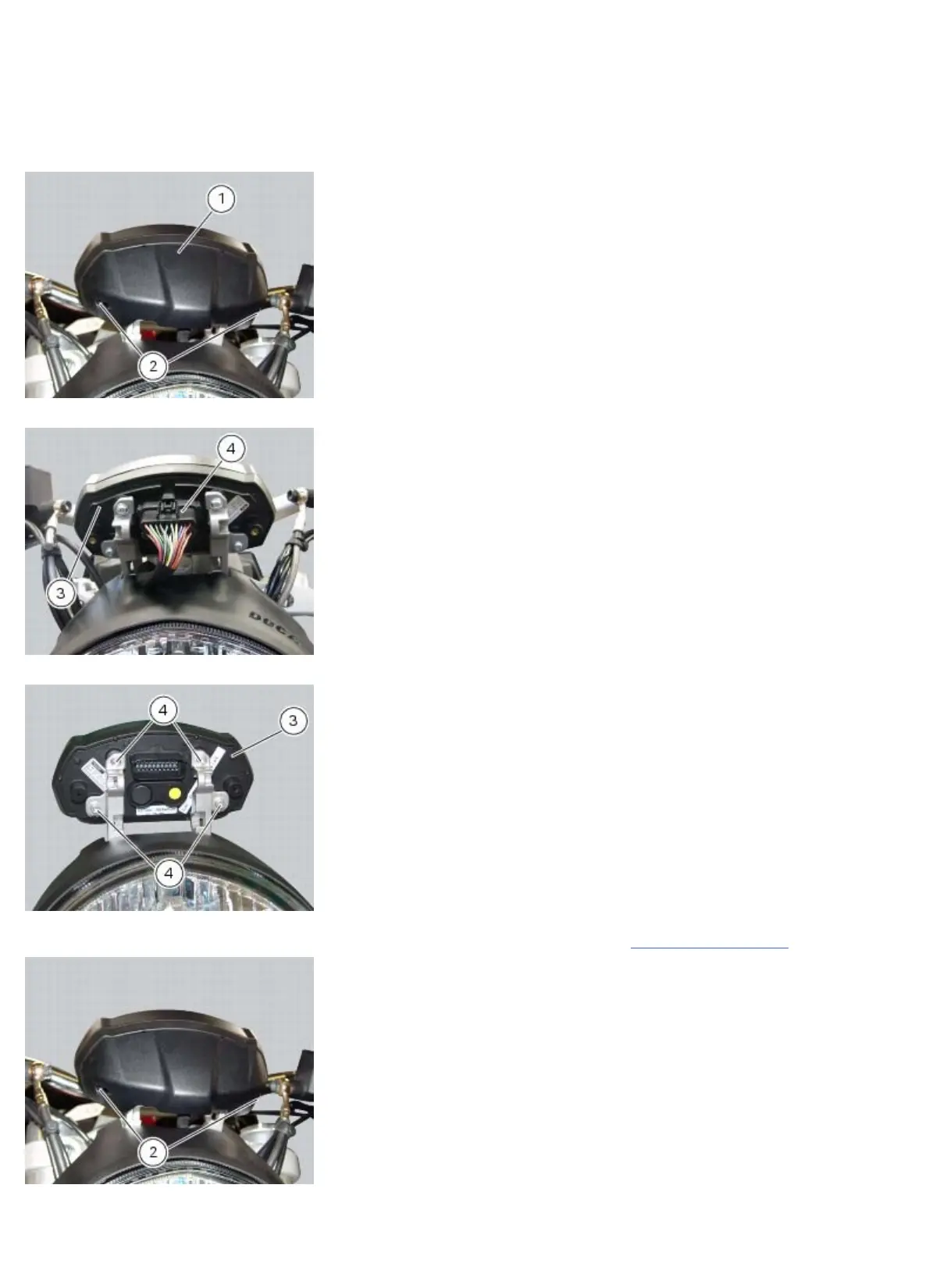

Undo the screws (2) and remove the instrument panel shroud (1).
Disconnect the wiring (A) from the instrument panel (3).
Undo the screws (4) and remove the instrument panel (3) from the front lights assembly support.
For reassembling perform the disassembling operations in the reverse order, in particular tighten the screws (4) to a
torque of 3 Nm ±10% and the screws (2) to a torque of 1.5 Nm ±10% (Sect. 3 - 3,
Frame torque settings).
Instrument panel system
The instrument panel comprises an LCD digital display unit.
