Instruments
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_6_7.31.1.html[11/12/2015 18:40:23]

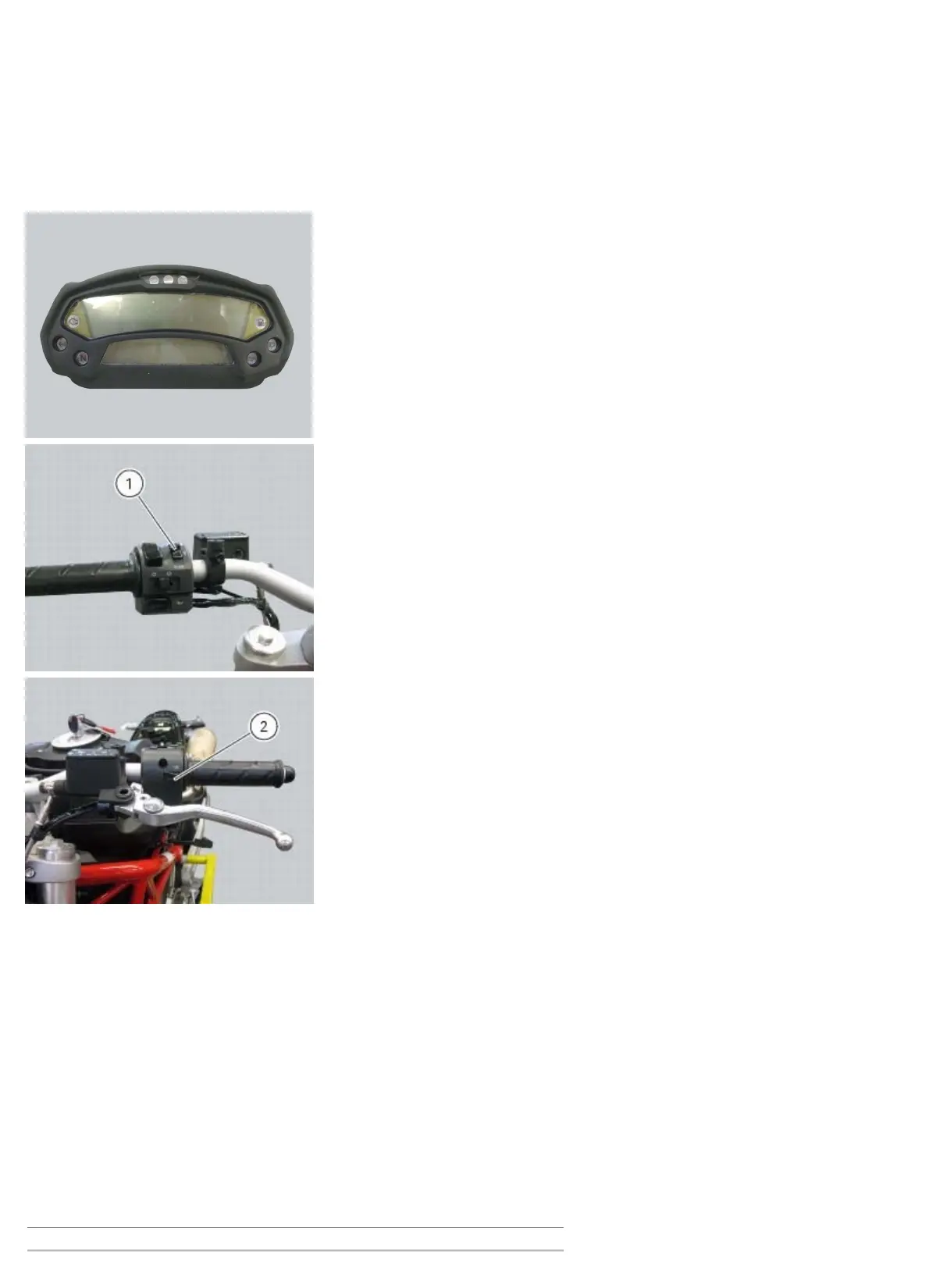

The information on the display can be accessed using a 2-position rocker switch (1) and the headlight flash button (2) on
the left-hand handlebar switch.
Underneath the digital display there are six indicator lights (three per side) and a further auxiliary light that illuminates
when the engine rpm exceeds the rev limiter threshold.
The instrument panel is equipped with a sensor that detects the intensity of the ambient light. The instrument panel
automatically switches its backlighting on or off according to the intensity of light detected. The instrument panel also has
an internal temperature sensor which, if the temperature rises above 70 °C, switches off the backlighting to prevent
possible damage.
The instrument panel also houses the atmospheric pressure sensor: the engine ECU acquires this signal via the CAN
(Controller Area Network) serial communication line.
Indicator lights
The following indicator lights are mounted on the instrument panel:
3) NEUTRAL LIGHT N (GREEN): illuminates when the gearbox is in neutral.
4) FUEL WARNING INDICATOR (AMBER YELLOW): illuminates when there are approximately there are about 3 litres of
fuel left in the tank.
5) TURN SIGNAL LIGHTS (GREEN): illuminate and flash when the corresponding turn signal is in operation.
If a turn signal does not work (e.g. burnt out bulb) its incorrect operation is signalled by making the light flash twice as
fast as in comparison to correct operation.
6) ENGINE OIL PRESSURE LIGHT (RED): Illuminates when engine oil pressure is too low. This light should come on when
the ignition is switched to ON and normally goes out a few seconds after engine starts. The case may occur that the light
turns on briefly if the engine is very hot; it will turn off as the engine rpms increase.
7) HIGH BEAM LIGHT (BLUE): illuminates when the high beam headlight is on.
8) “ENGINE/VEHICLE DIAGNOSIS - EOBD” INDICATOR (AMBER YELLOW): It turns on in the case of an engine or
motorcycle error; in some cases the engine will be locked.
9) OVER REV. WARNING LIGHT: It comes on steady when the first rev limiter threshold (*) is reached. Starts flashing
when the rev limiter is reached.
10) ABS LIGHT (AMBER YELLOW).
Engine off / speed below 5 Km/h
