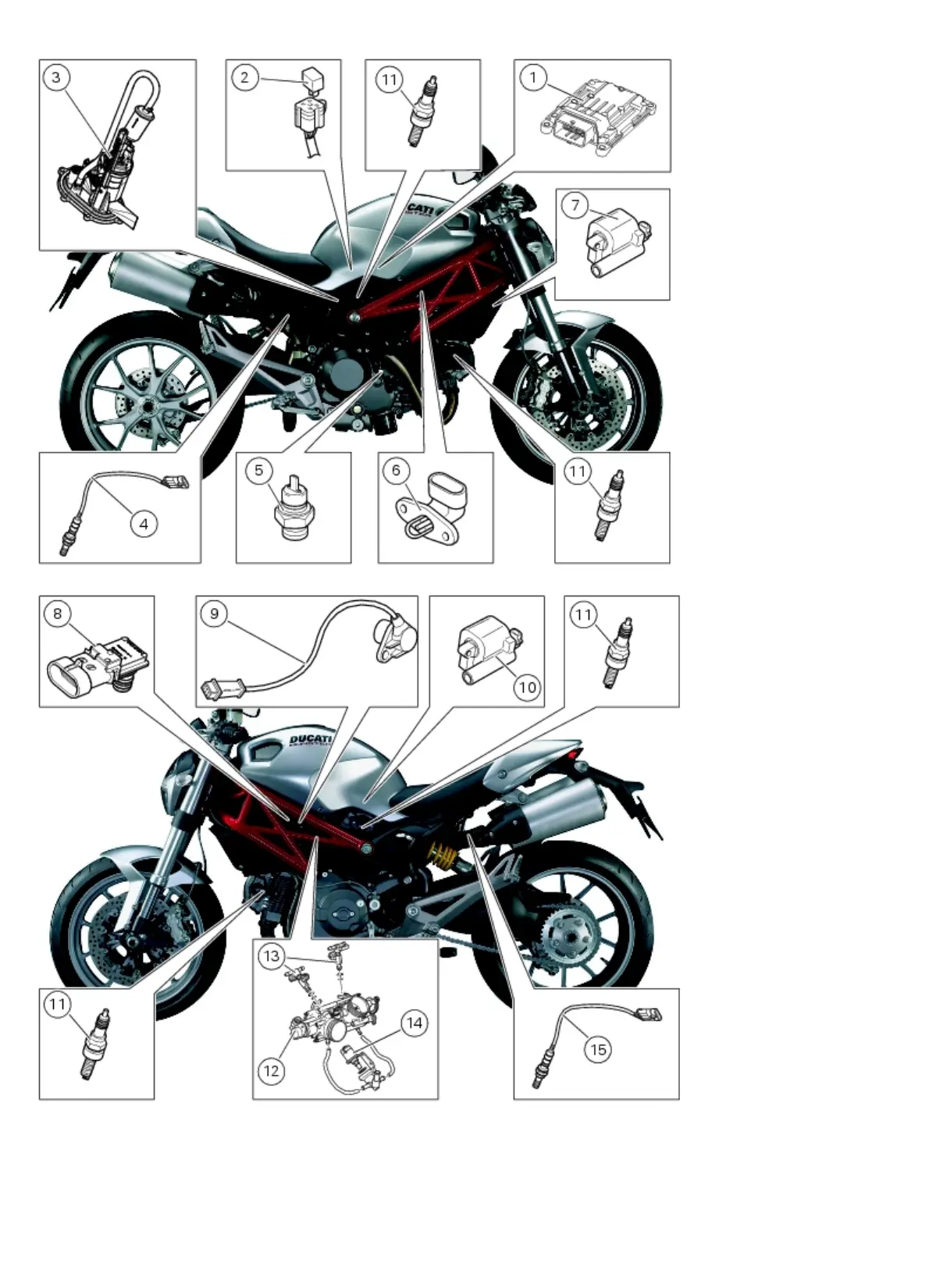

Description of the system
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_6_10.33.1.html[11/12/2015 18:40:25]
Fuel circuit
A pump located on a flange at the bottom of fuel tank pumps fuel into delivery tube (OUT) and toward injectors. The
flange also fits the pressure regulator controlling fuel feed and keeping it constant at a value higher than engine-
generated vacuum. Fuel that is not injected in the intake hoses returns to the flange and then to the tank by way of a
return hose (IN).
