Diagnostic instruments
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_6_13.36.1.html[11/12/2015 18:40:27]
-Power and diagnostic cable complete with fuse
-CD containing DDS installation software for PC
-USB cable
-Belt tension sensor
Tester power supply

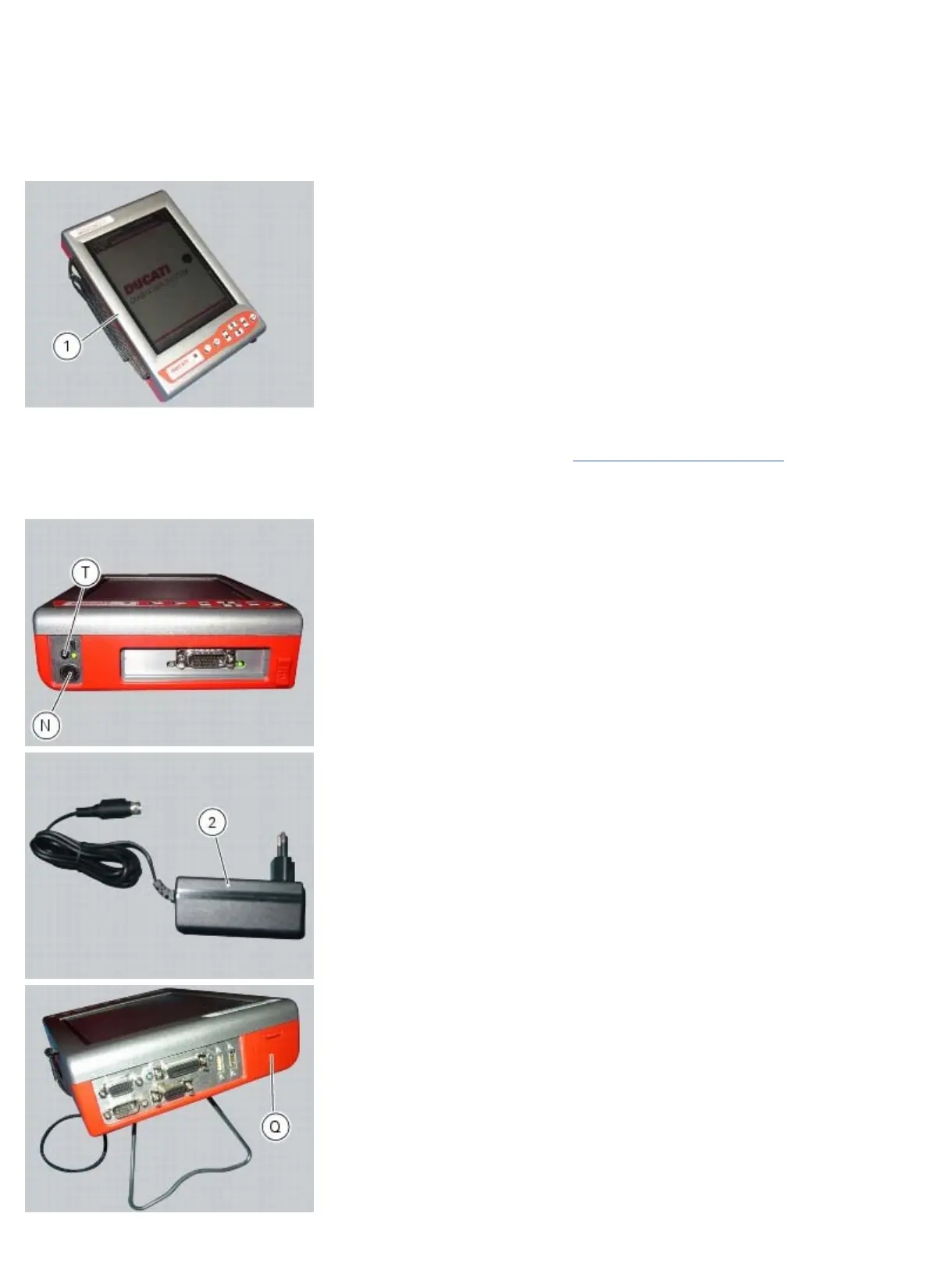

The DDS diagnosis instrument (1) tool part no. 97900.0215 may be powered in any of the following ways:
-from the mains power supply: by connecting the mains adapter (2) to the power connection socket (N) part no.
97900.0224;
-from the motorcycle: connecting the corresponding cables (see paragraph “
Connection to the motorcycle”);
-from the tester's internal battery: the battery (Q) is housed in the top part of the tester. To operate the tester (1) using
the internal battery and to recharge the battery, refer to the “User Manual” supplied with the DDS diagnosis instrument.
To switch on the display, press the button (T).
Connection to the motorcycle
