Diagnostic instruments
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_6_13.36.1.html[11/12/2015 18:40:27]

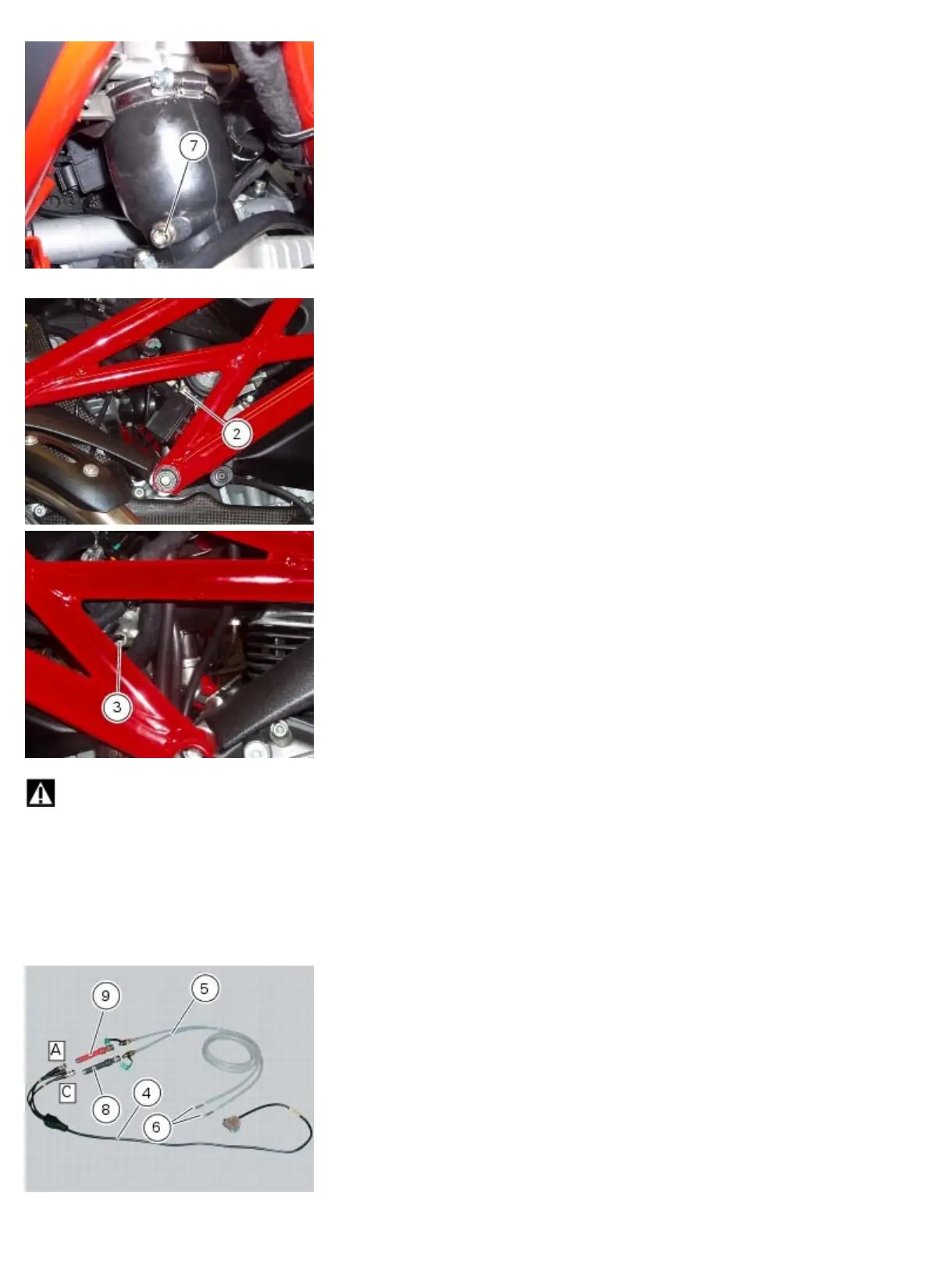

Take both by-pass screws (2) and (3) one turn open, from fully closed position.
Warning
Press the “Reset“ icon (G), then connect the sensors (8) part no. 97900.0218 and (9) part no. 553.1.039.1A to the
connectors (A) and (C) of the cable (3) and to the depression/pressure pipes (6).
Press the “Start” icon to begin the cylinder pressure measurement procedure.
The on-screen indicator light (E) will turn red when the function is active.
Start the bike.
The values may be displayed in two different ways: in numerical form or in graphic form; to select the desired display
type, press the “Value display” icon (F).
The values can be reset by pressing the “Reset” icon (G).
