Diagnostic instruments
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_6_13.36.1.html[11/12/2015 18:40:27]

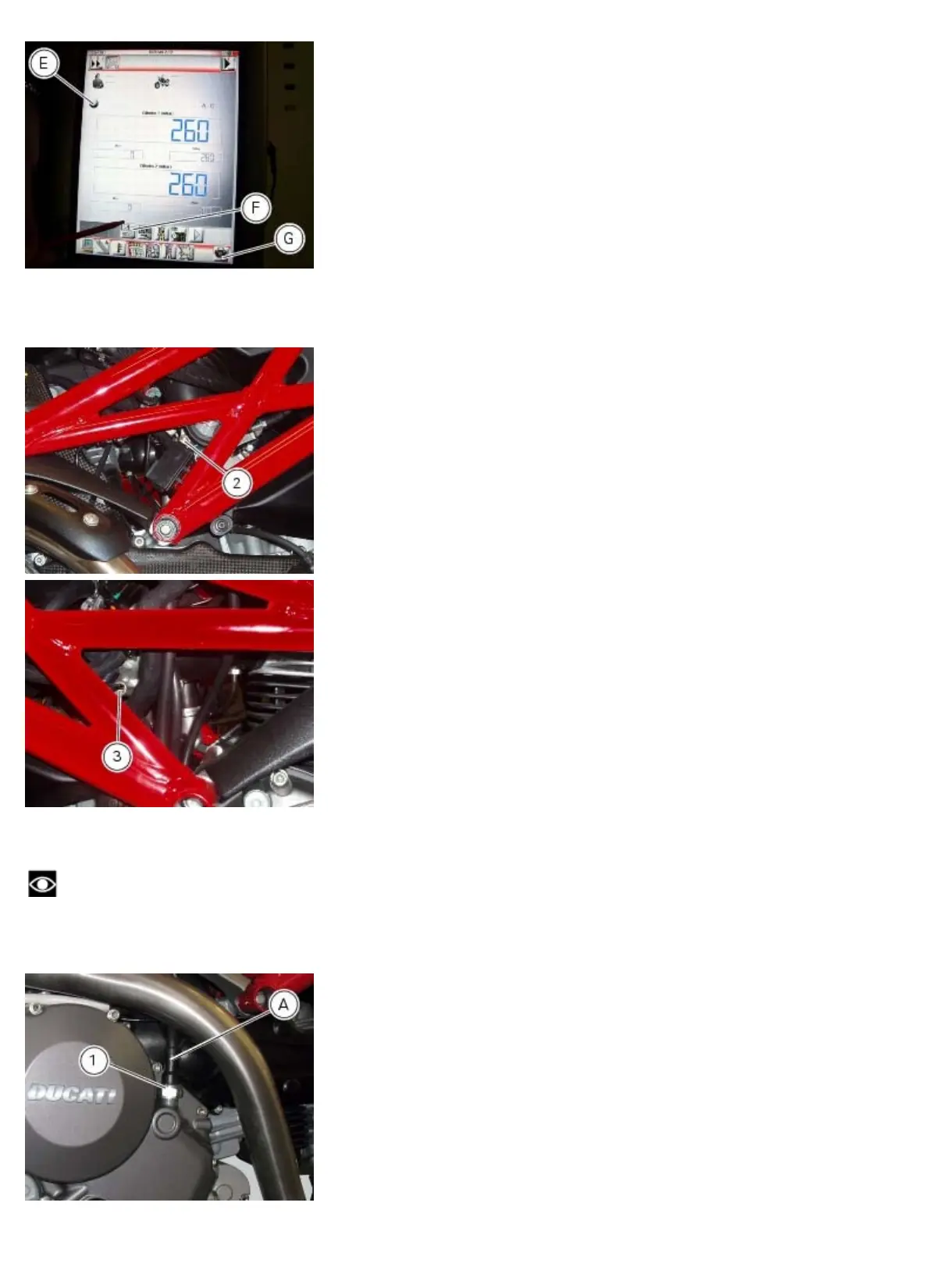

To adjust the balance (consider a tolerance between 260 and 270), turn the by-pass screws (2) and (3) until the two lines
on the graph coincide, if in graphic mode, or until identical numerical values are displayed, if in numerical mode.
Balance is obtained when the two lines of the graph nearly coincide or when the two indicated values are within the
tolerance range.
Check the engine oil pressure
Note
The on-screen icons used during this procedure are explained in a table at the end of this section.
To measure the pressure of the lubrication circuit, use the engine oil pressure test point (21) as described below.
Disconnect the wiring connector (A) and remove the pressure switch (1), taking care to recover the seal.
Introduce the fitting (3) part no. 814.1.114.1A into the connection on the hose (2) part no. 875.1.065.1A, placing two
copper sealing washers in between (4). Screw the fitting (3) of the hose (2) into the threaded hole (M10x1 mm) in the
RH cover fully home. Refit the pressure switch (1) on the fitting (3) along with its seal, and reconnect the wiring
