Rear brake control
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_7_4.41.1.html[11/12/2015 18:40:30]
Spare parts catalogue
796
REAR BRAKE
796 ABS
REAR BRAKE
Important
Bold reference numbers in this section identify parts not shown in the
figures alongside the text, but which can be
found in the exploded view diagram.
Removal of the rear brake lever
Warning
The brake master cylinder manufacturer advises against servicing the brake master cylinder due to the safety critical
nature of this component. Incorrect overhaul of this component could endanger rider safety.
Maintenance operations on these units are limited to replacing the following parts: control lever, reservoir unit, reservoir
fasteners and master cylinder fasteners.
Operations Section reference
Drain the braking system 4 - 3,
Draining the brake circuit
Note
For the ABS front braking system, also refer to Sect. 7 - 5, ABS system operating information, Sect. 7 - 6, System
components, Sect. 7 - 7, ABS components maintenance.

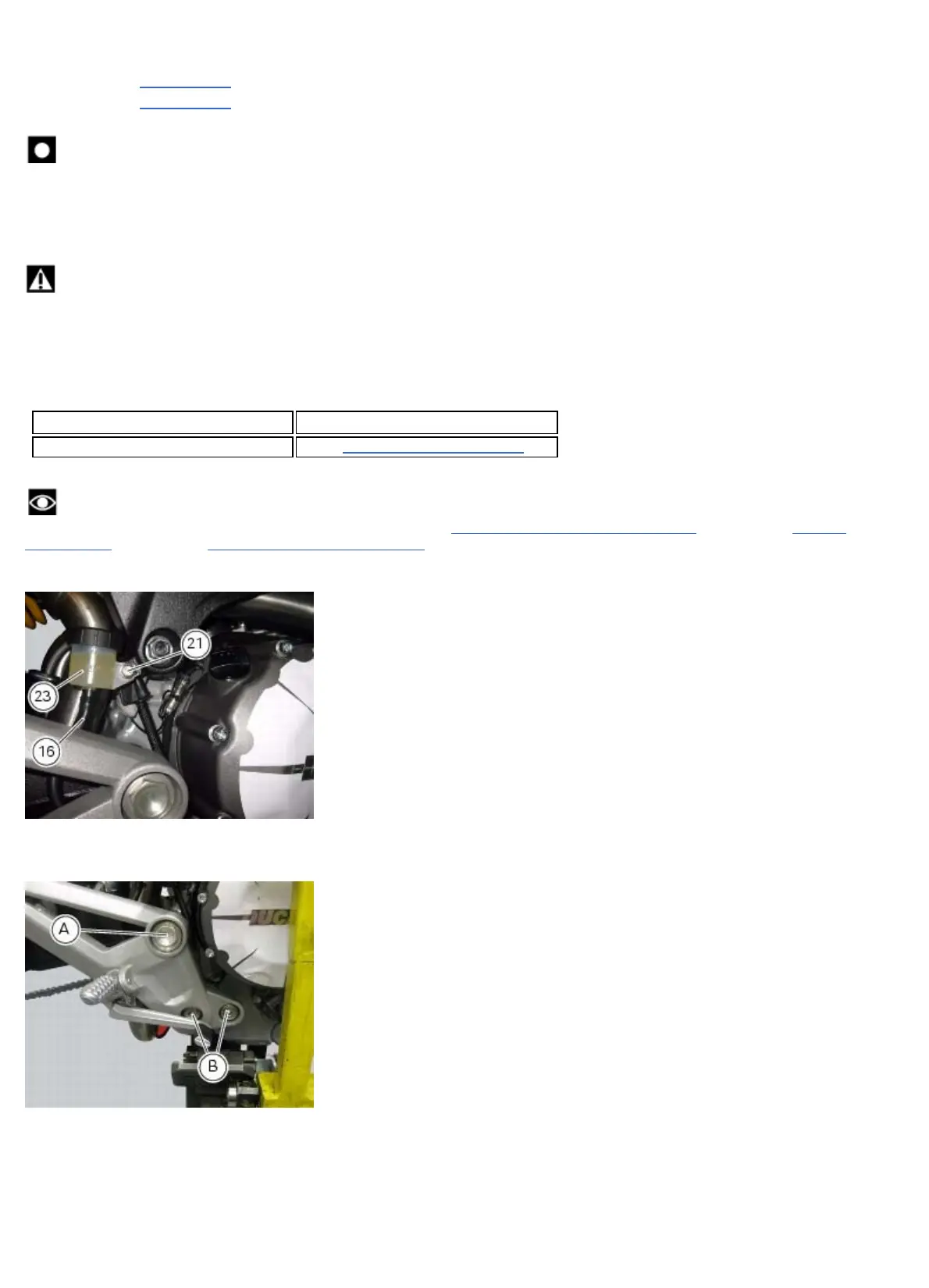

Undo the screw (21) and remove the reservoir (23) complete with the hose (16).
Unscrew the upper screw (A) securing the RH bracket to the swingarm.
Remove the washer between the bracket and the frame.
Unscrew the lower retaining screws (B) from crankcase.
Unscrew the screws (18) securing the rear brake master cylinder (17) to the footrest bracket (D).
Unscrew the banjo bolt (1) from the master cylinder (17), recovering the two sealing washers (2).
Remove the clamp (C).
