Rear brake control
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_7_4.41.1.html[11/12/2015 18:40:30]

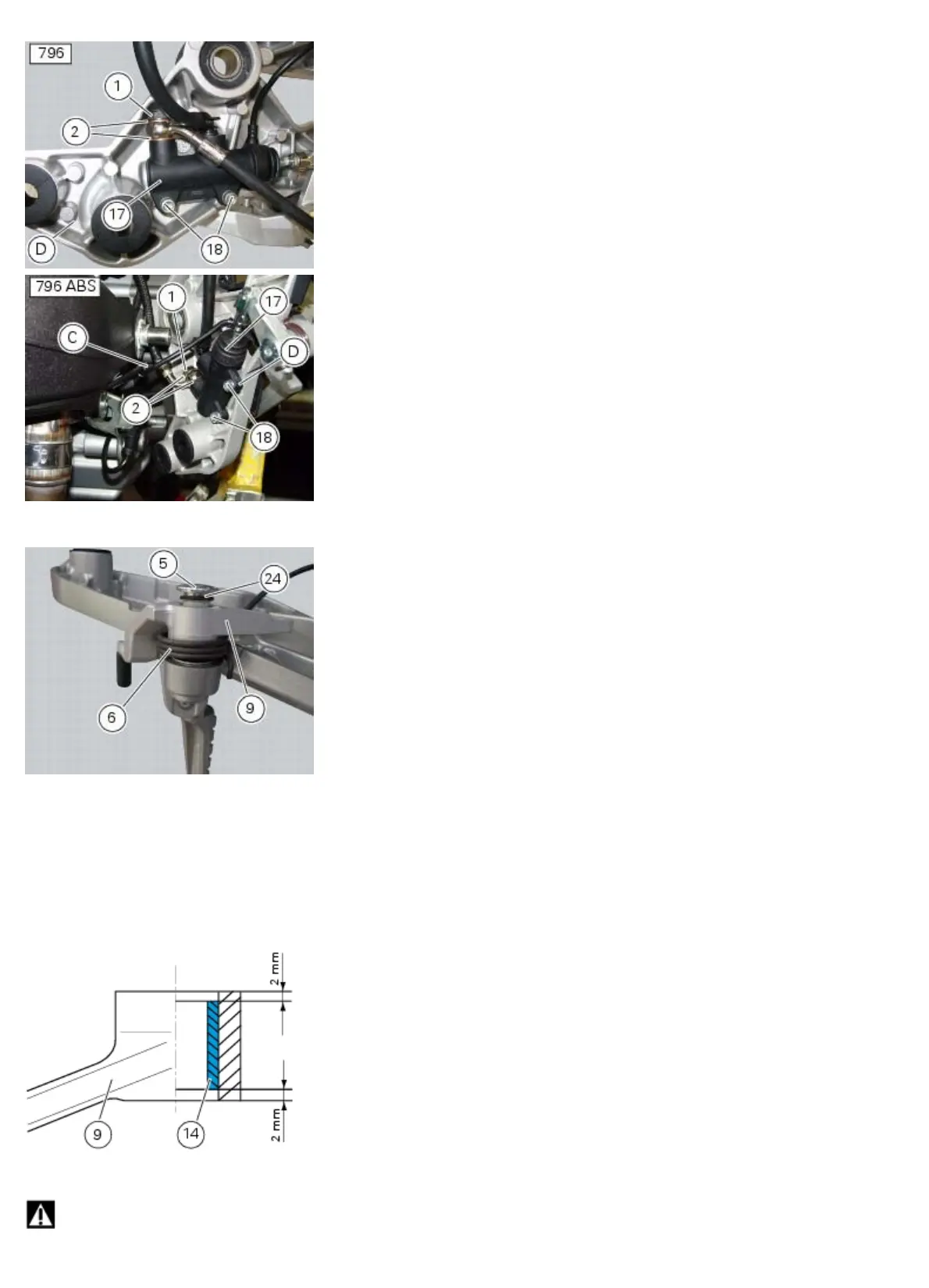

Unscrew the pin (5) securing the rear brake pedal lever to the footrest bracket and remove the spring (6), the complete
pedal lever (9) and the O-ring (24).
Disassembly of the rear brake control
The brake master cylinder is supplied only as a complete unit; internal components cannot be replaced.
To disassemble master cylinder external components, follow the indications given in the exploded view at the beginning of
this section.
If the brake pedal (9) inner bushing (14) needs to be renewed, fit the new bushing using a suitable press and position it
so that it is set in 2 mm from the outer face of the pedal.
To disassemble the various parts of the system, refer to the exploded view at the beginning of this chapter.
Warning
After performing an operation on the rear brake control, check the brake pedal position following the instructions detailed
