Rear brake control
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_7_4.41.1.html[11/12/2015 18:40:30]

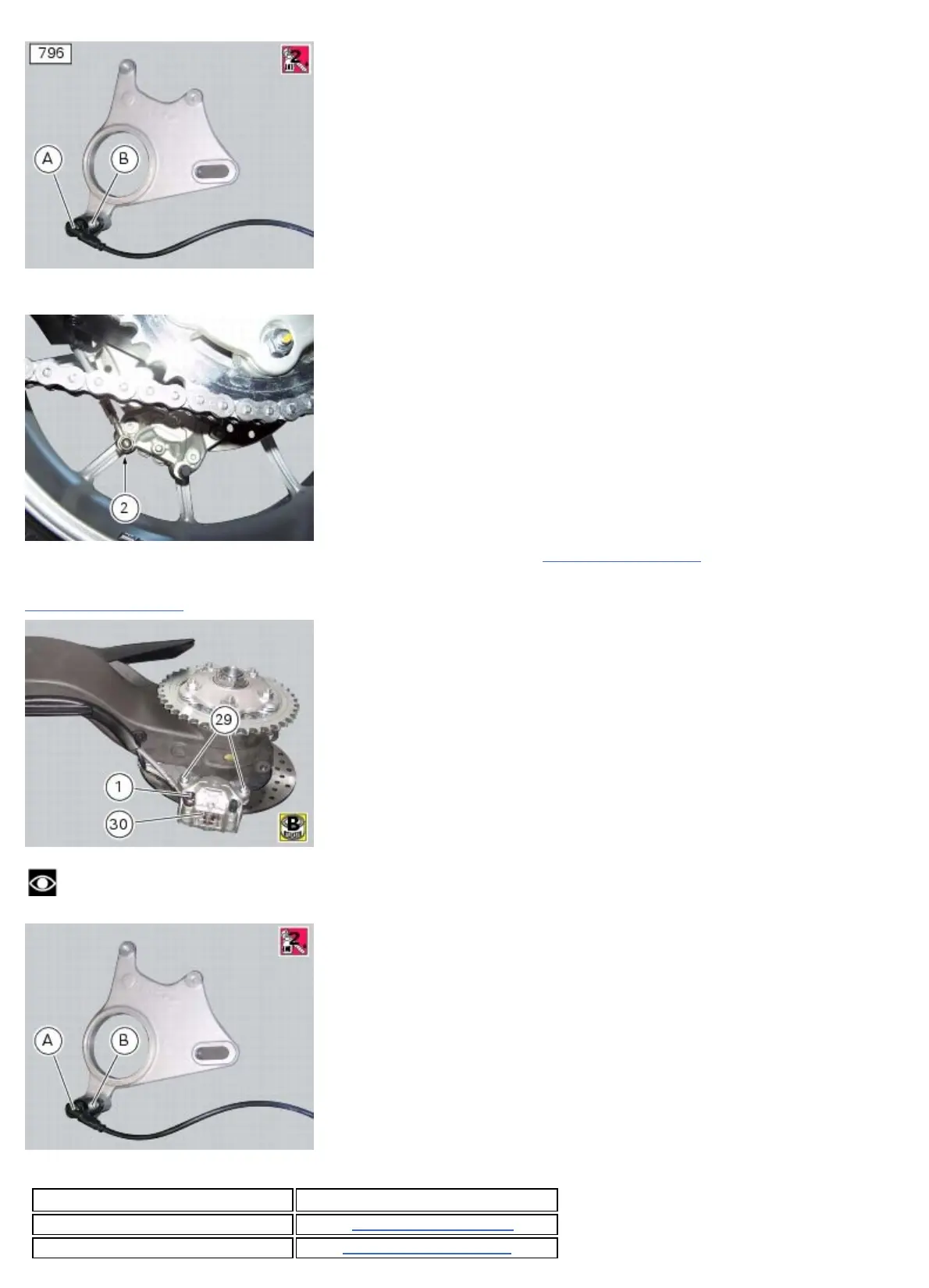

Fit the copper sealing washers (2) to either side of the hose end fitting when connecting the brake hose to the brake
calliper. Orientate the end fittings of the hose (6) on the calliper as shown in the photo.
Tighten the special screws (1) to a torque of 23 Nm ±10% (Sect. 3 - 3, Frame torque settings).
Fit the rear brake calliper (30) over the brake disc, aligning it with the holes in the calliper mounting bracket. Grease the
threads and undersides of the heads of the screws (29). Tighten the screws (29) to a torque of 25 Nm ± 5% (Sect. 3 - 3,
Frame torque settings).
Note
The gap between the sensor (A) and the brake disc fixing screw (B) must be within 0.6 to 2.2 mm.
Operations Section reference
Refit the lower fairing protections 7 - 13, Refitting the swingarm
Refit the rear wheel 7 - 2,
Refitting the rear wheel
