Fork - steering head: Steering
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_7_10B.49.1.html[11/12/2015 18:40:34]
Important
Once disturbed, the oil seals (8) and (18) and bearings (5) and (6) must not be refitted.

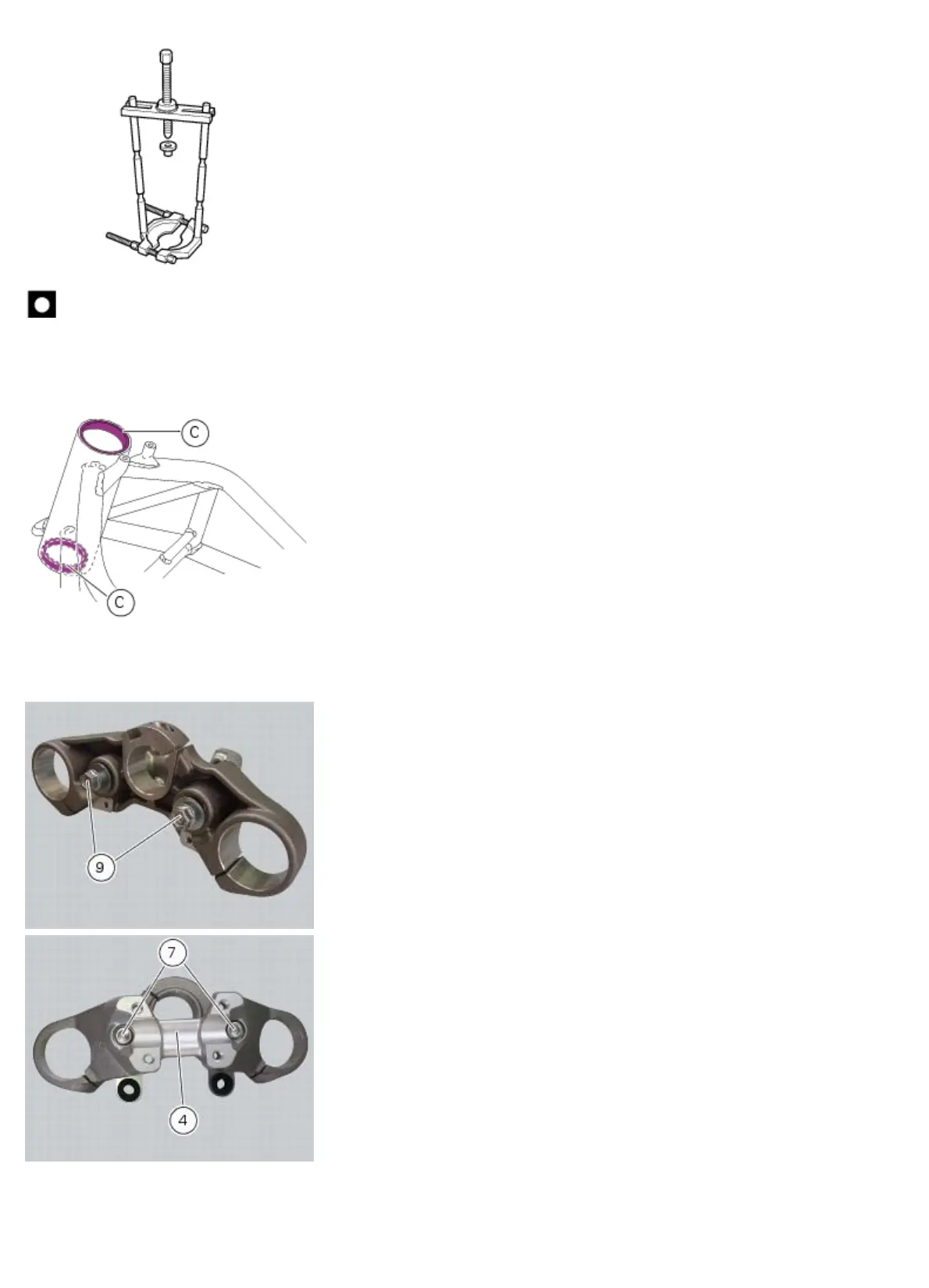

Using a suitable drift, remove the outer bearing races (C) from the steering head. Proceed with extreme care to avoid
damaging the seats.
Disassembly of the steering head
While holding the nuts (9), unscrew and remove the screws (7), washers (11) and the lower clamp (4) from the steering
head.
Unscrew the screws (23) and remove the guide (20).
Recover the washers (22) and the headlight support bracket (21).
