Fuel tank
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_8_2.58.1.html[11/12/2015 18:40:39]

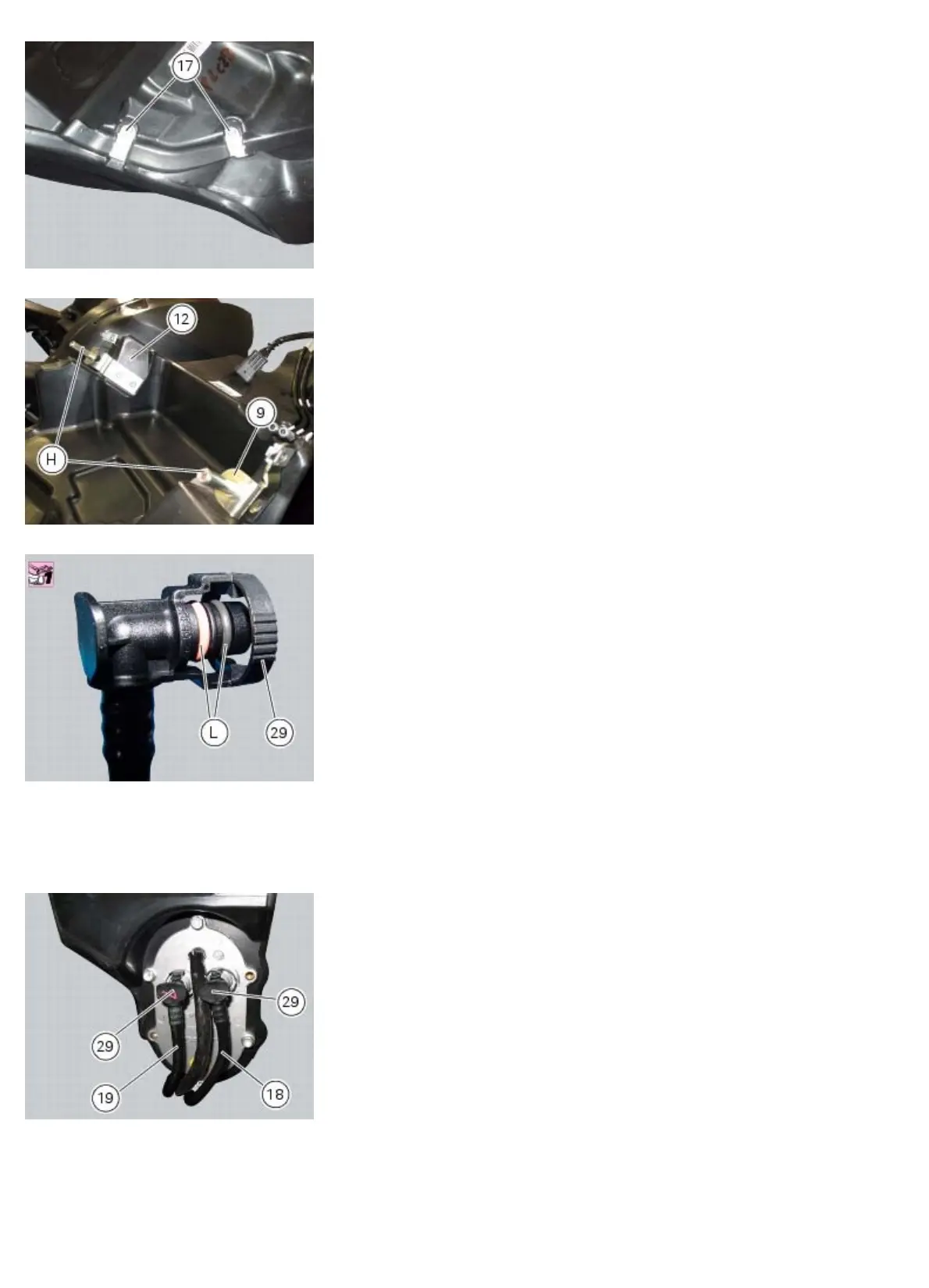

Refit the tank by engaging pins (H) on mounting brackets (9) and (12) into their seats on the frame.
Smear the O-rings (L) installed on fuel hose couplings (29) with rubber lubricant.
While holding the tank in the raised position, connect the quick–release fittings (29) of the fuel outlet hose (18) and
return hose (19) to the flange:
fit the fuel outlet hose (18), orienting it as shown in the figure, inserting the fitting (29) in its union in the flange
(identified with the word “OUT”), until you feel a click;
fit the fuel return hose (19), orienting it as shown in the figure, inserting the fitting (29) in its union in the flange
(identified with the word “IN”), until you feel a click;
Attach the fuel hoses (18) and (19) to the clips (16).
