Fuel tank
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_8_2.58.1.html[11/12/2015 18:40:39]

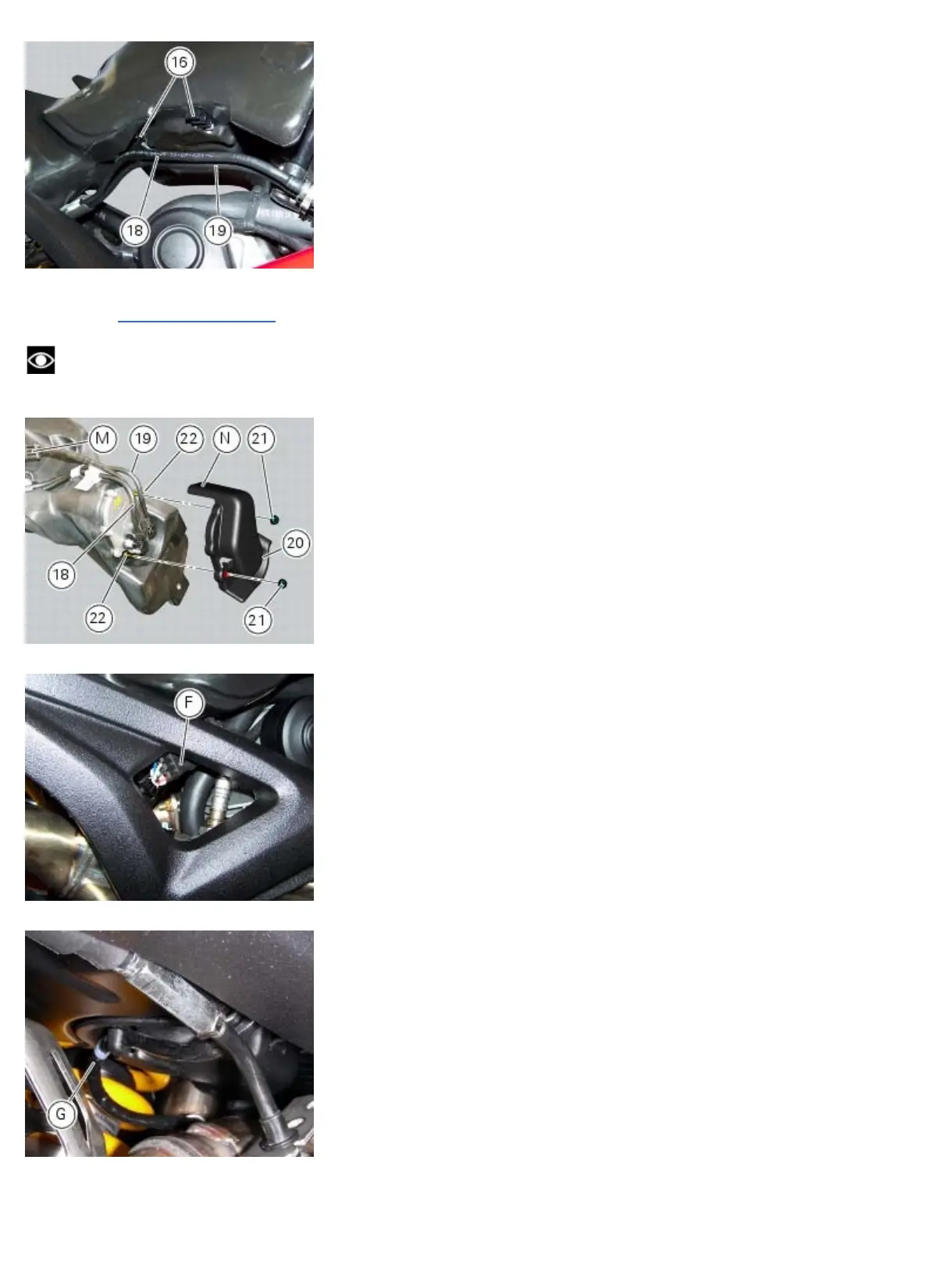

Refit the cover (20) and start the two nuts (21) onto the two screws (22) then tighten the nuts to a torque of 3 Nm
±10%
(Sect. 3 - 3,
Frame torque settings).
Note
When installing cover (20), ensure hoses (18) and (19) and wiring (M) on flange stay inside the cover jut (N).
Connect the fuel sensor (F) to the main wiring harness.
Route the lambda sensor cable (G) in the relevant rear tab available on the tank flange cover.
With the fuel tank lowered, the fuel pump connector (O) should rest on the vertical cylinder head, as shown.
