Fuel tank
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_8_2.58.1.html[11/12/2015 18:40:39]

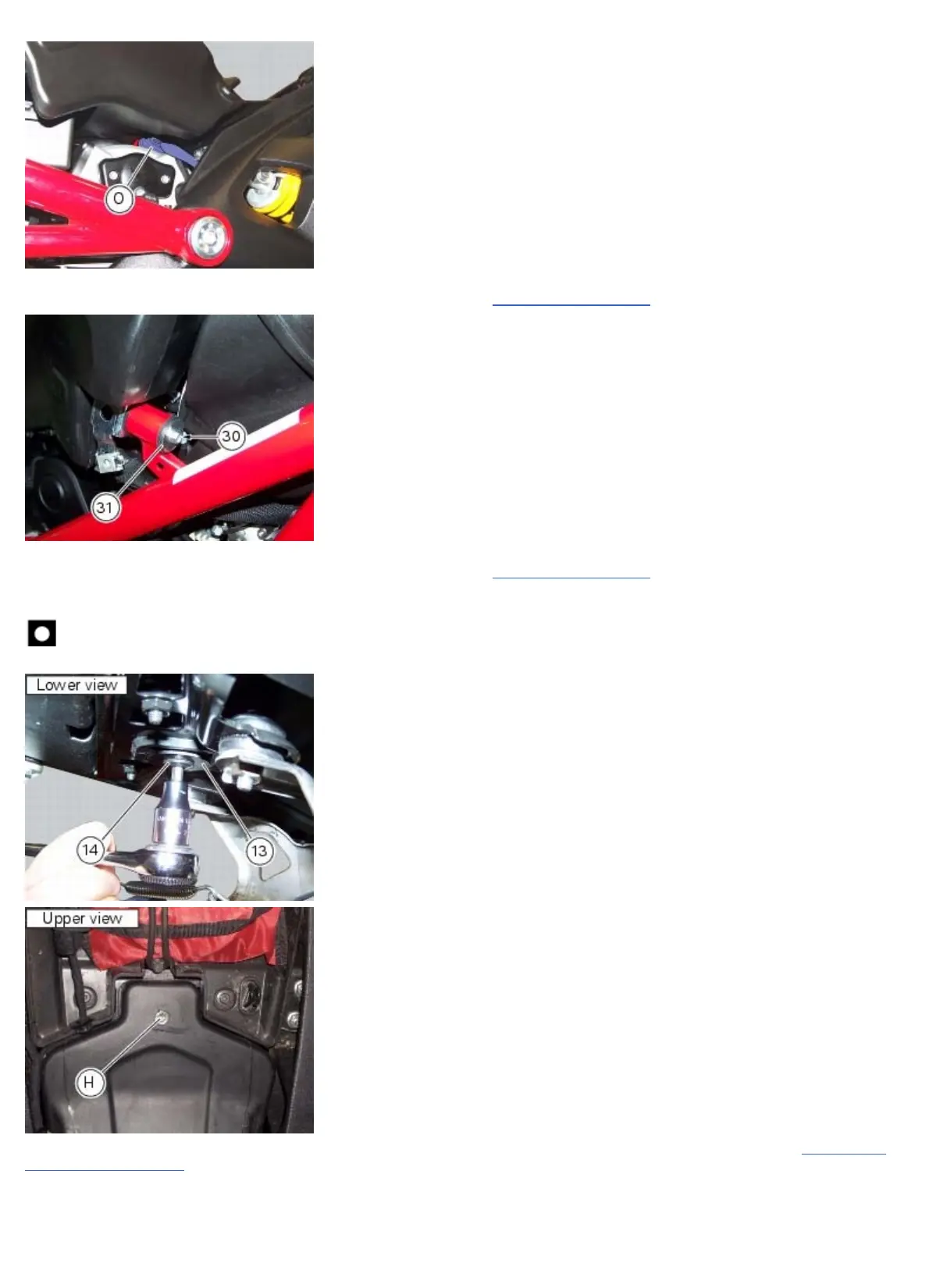

Secure the tank to the frame with the screw (30) and the washer (31).
Tighten the screw (30) to a torque of 10 Nm ±10% (Sect. 3 - 3,
Frame torque settings).
Secure the tank to the subframe with the screw (13) and the washer (14).
Tighten the screw (14) to a torque of 10 Nm ±10% (Sect. 3 - 3,
Frame torque settings), using a 5 mm Allen wrench to
counterhold the threaded insert (H) located on the upper part of the tank.
Important
The threaded insert (H) is not present in the USA version.
Locate the breather/drain hose (6) on the motorcycle and refit the cover (E) on breather hoses (Sect. 9 - 8, Reassembly
of the generator cover).
