Exhaust system
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_8_8.61.1.html[11/12/2015 18:40:41]

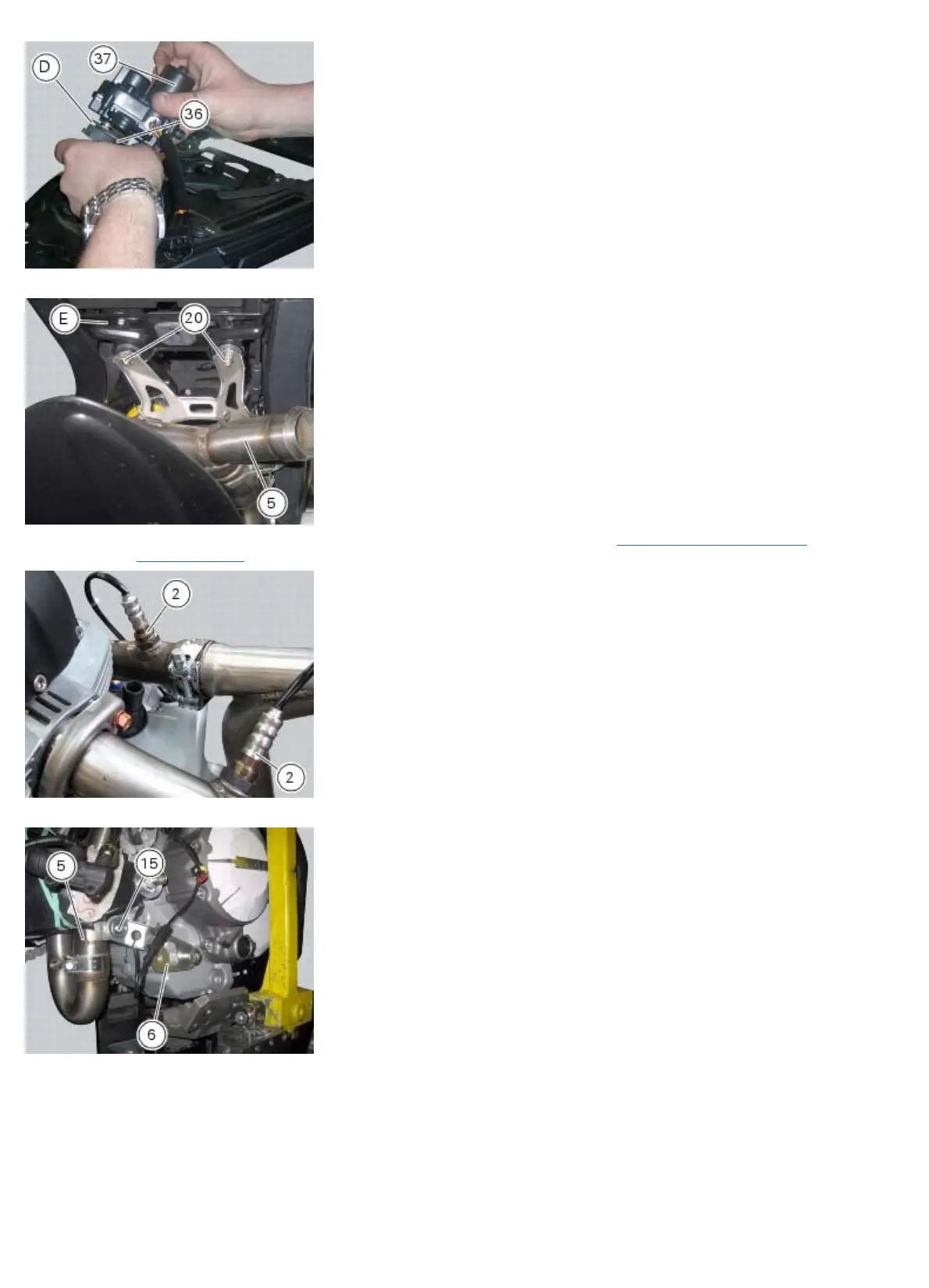

Loosen the two nuts (20) and take central exhaust pipe (5) off the mounting bracket for tank and exhaust (E).
Disconnect the two lambda sensors (2) from the main wiring harness (Sect. 6 - 1, Routing of wiring on frame). Refer to
Section 6 - 12,
Lambda sensor for details on lambda sensor.
Unscrew the screw (15) retaining the central exhaust pipe (5) to engine and remove the bottom plate (6).
Unscrew the clamp (16) and separate the centre exhaust pipe (5) from the horizontal cylinder exhaust pipe (3) and the
vertical cylinder exhaust pipe (4).
