Crankcase assembly: crankcase halves
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_9_9B.79.1.html[11/12/2015 18:40:53]

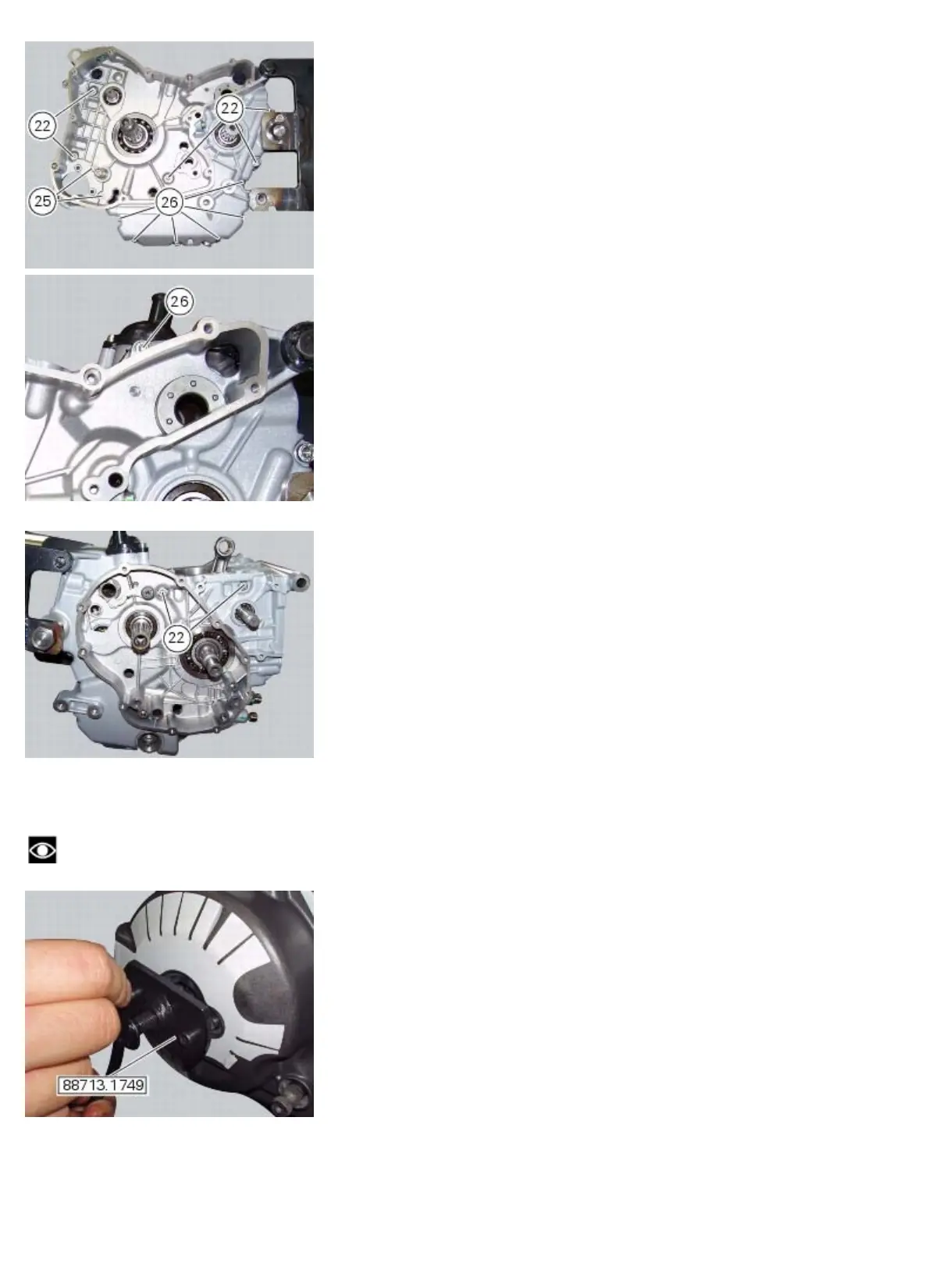

Unscrew the two screws (22) from clutch-side crankcase, near the vertical cylinder.
Reuse the generator cover or a service cover with puller 88713.1749 fitted. Secure cover to crankcase half with some of
the original screws and begin separation by turning the central pin of the tool.
Tap the end of the gearbox secondary shaft with a plastic mallet to separate the crankcase halves.
Note
Take care not to lose the shims on the shafts and on the selector drum.
