Maintenance operations
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_4_3.17.1.html[11/12/2015 18:40:14]
Operations Section reference
Remove the seat 5 - 3, Removal of the seat

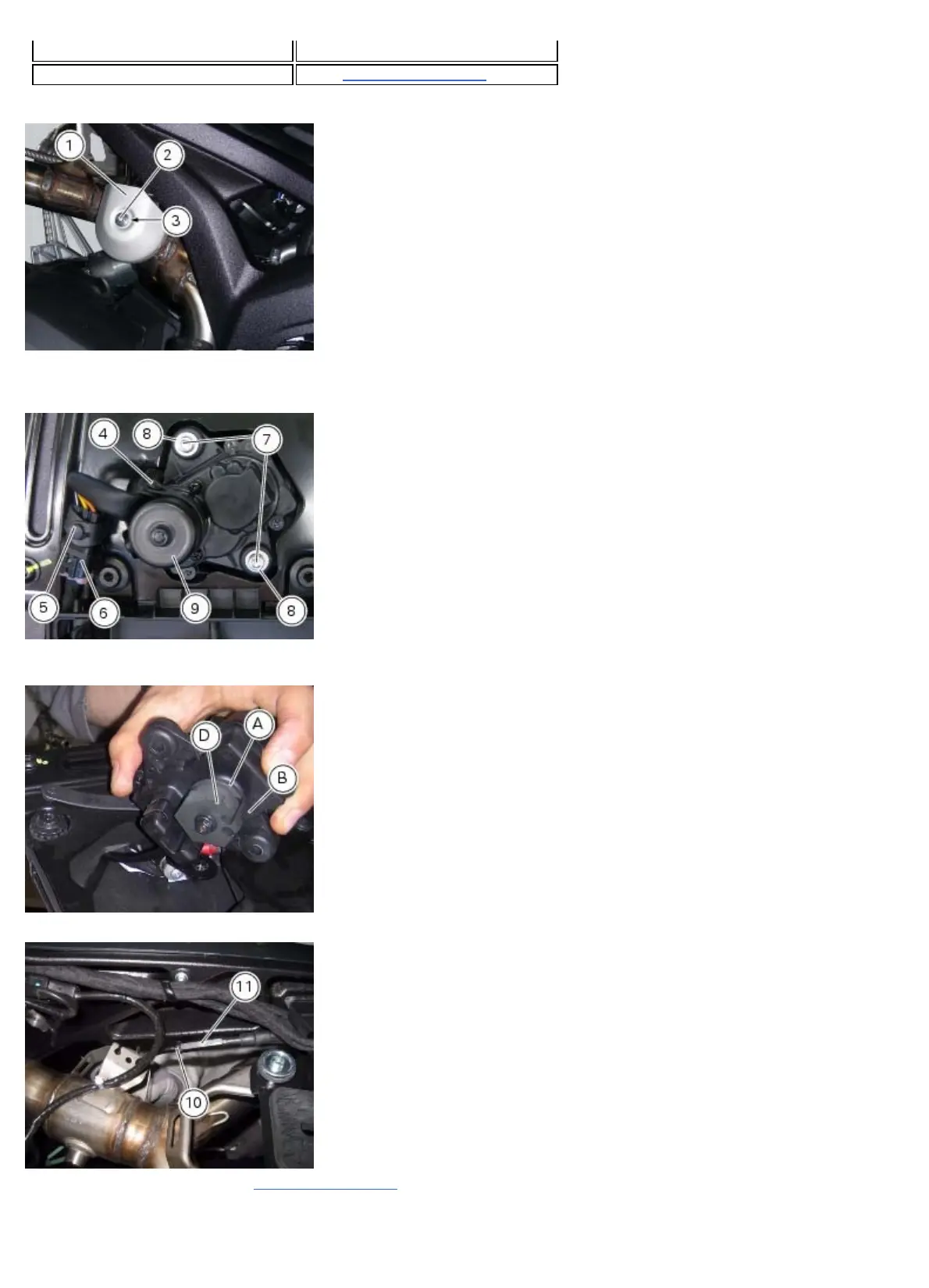

Remove the protection (1), unscrewing the screw (2) and recovering the washers (3) and corresponding spacer.
Remove the clamps (4), (5) and disconnect the exhaust valve motor wiring (6).
Loosen the screws (7), recover the washers (8) and remove the exhaust valve motor (9) from the rear number plate
holder.
For any position assumed by the vertex of the hexagon (D) flanked by the two cable end fittings, between the vertical
position (A) and the position corresponding to the notch (B).
Loosen lock nut (10) from adjuster and tighten the adjuster ring nut (11) at least by 4 turns.
Connect the DDS (Sect. 6 - 13, Tester power supply) and open the procedure “EXUP valve act.”.
