CNC 8060
CNC 8065
7
·145·
(REF: 1807)
JOG MODE. PART CENTERING
(MILL MODEL)
Part centering is available in the jog mode. This option is only available at the mill model.
To quit the part centering mode and return to jog mode, press the [ESC] key.
Requirements prior to the calibration.
To execute this cycle, the probe must be properly calibrated. Before executing the cycle, the
probe must be placed near the part and in front of the probing point, as centered as possible
and in the Z coordinate where probing will take place.
Requirements prior to the calibration.
To center the part, follow these steps.
1 Select the probe and the offset. If not selected, the probe to be used must be defined
in the parameters of the cycle.
2 Enter the data of the cycle.
3 Press the [START] key to start the cycle. The CNC makes the necessary moves to center
the part.
4 When done with the cycle, the CNC updates the corresponding parameters.

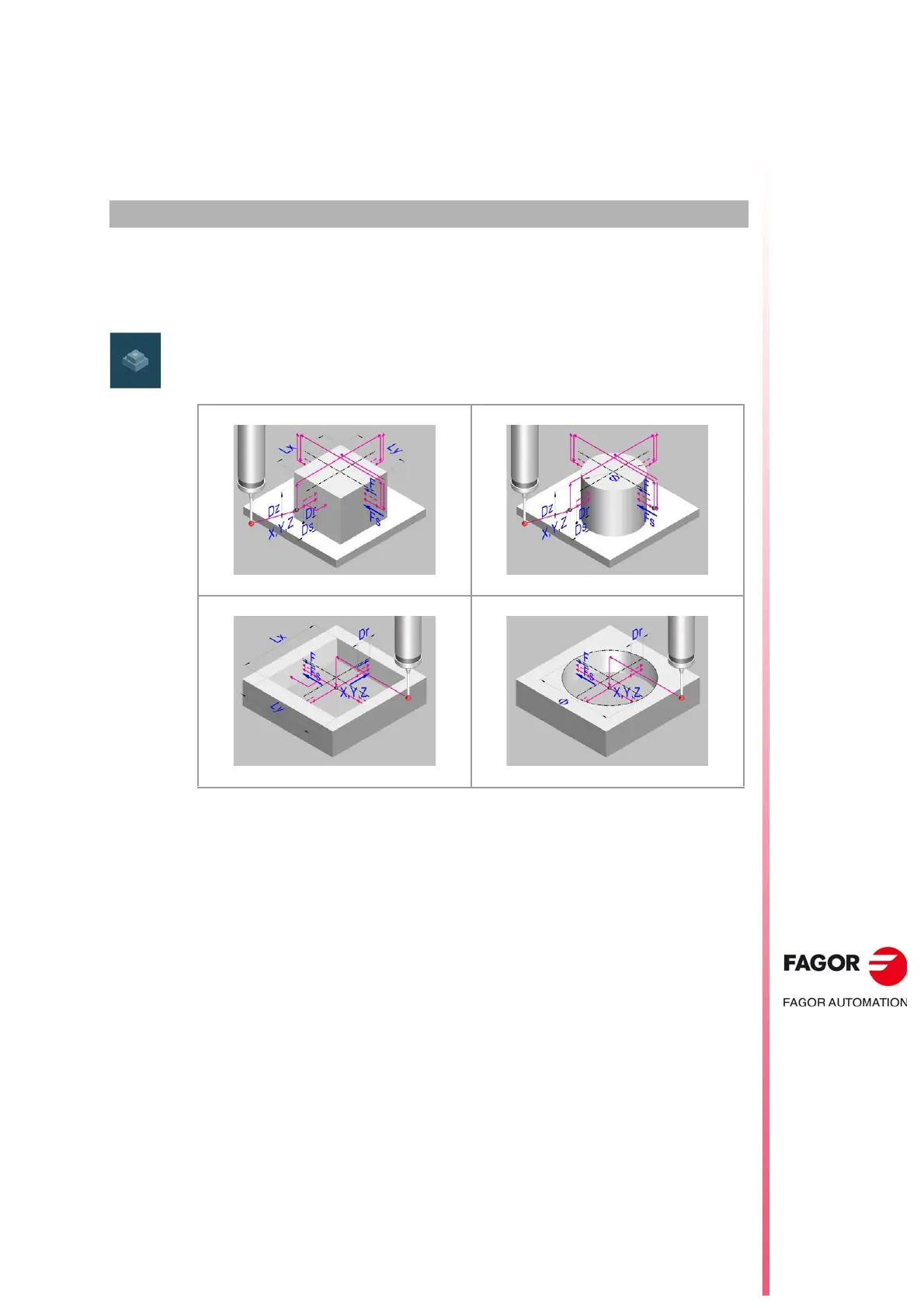

This mode may be used to calculate the center of a rectangular or circular part of known
dimensions as well as, in rectangular parts, the inclination of the part with respect to the
abscissa axis. The type of part to be centered is selected with the parameters of the cycle.
Rectangular boss. Circular boss.
Rectangular pocket. Circular pocket.
