Operating manual.
CNC 8060
CNC 8065
7.

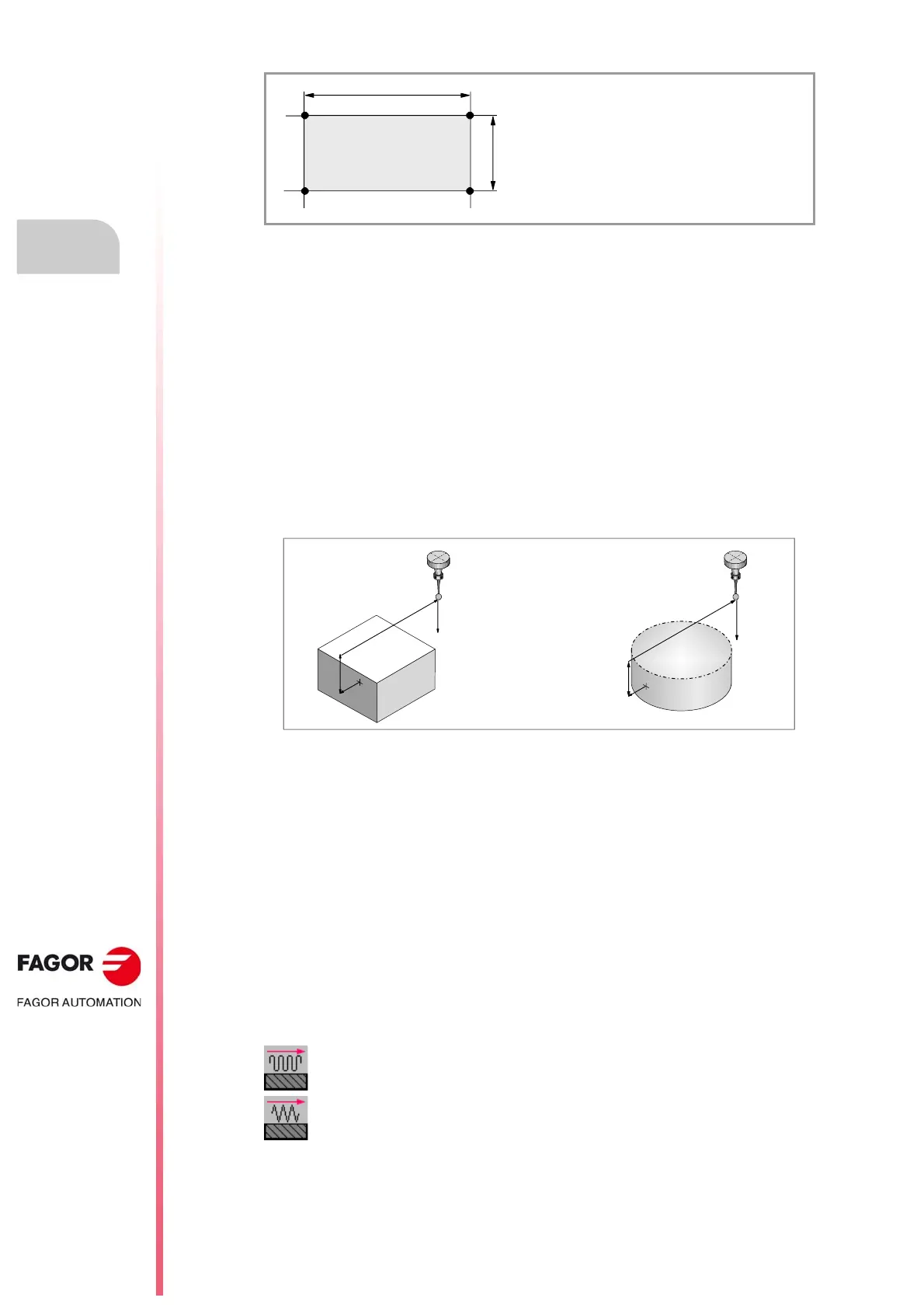

JOG MODE. PART CENTERING (MILL MODEL)
Data programming.
·150·
(REF: 1807)
·Ds· Safety distance.
Optional parameter; if not defined, it assumes the distance between the part and the probe
position when calling the cycle.
Distance with respect to the point to measure, to which the probe approaches before making
the probing movement.
·Dr· Withdrawal distance after initial probing.
This parameter sets the distance the probe withdrawals after the first probing movement.
Once it withdraws this distance, the CNC makes a second probing movement.
·Dz· Safety distance along Z.
Distance for the probe to go up from the probing coordinate (position) for its movements over
the part. This parameter must have enough value to prevent the probe from colliding when
moving over the part.
·Fs· Feedrate for the first probing movement.
Optional parameter; if not defined, the cycle assumes the value of machine parameter
PROBEFEED of the axis.
This parameter sets the feedrate for the first probing movement. Then, the CNC will repeat
the probing movement at feedrate ·F·.
·F·Probing feedrate.
Optional parameter; if not defined, the cycle assumes 10% of the value of machine parameter
PROBEFEED of the axis.
This parameter sets the feedrate for the second probing movement.
·icon·Feedrate for approach movements.
This parameter sets the type of feedrate for the movements to the approach points.
The movements are carried out in rapid.
The movements are carried out at work feedrate.
P1
70
P4P3
P2
P1 Lx=70
P2 Lx=-70
Ly=30
Ly=30
P3
P4 Lx=-70 Ly=-30
Lx=70 Ly=-30
30
