Frontier LP7500 - Page 102

2. Replacement and adjustment of parts
26510
4/4
26510
Paper advance unit 1
2. Execute Test Operation for the Paper Stop Position Correction via F: Functions of Paper Advance
Unit Correction.

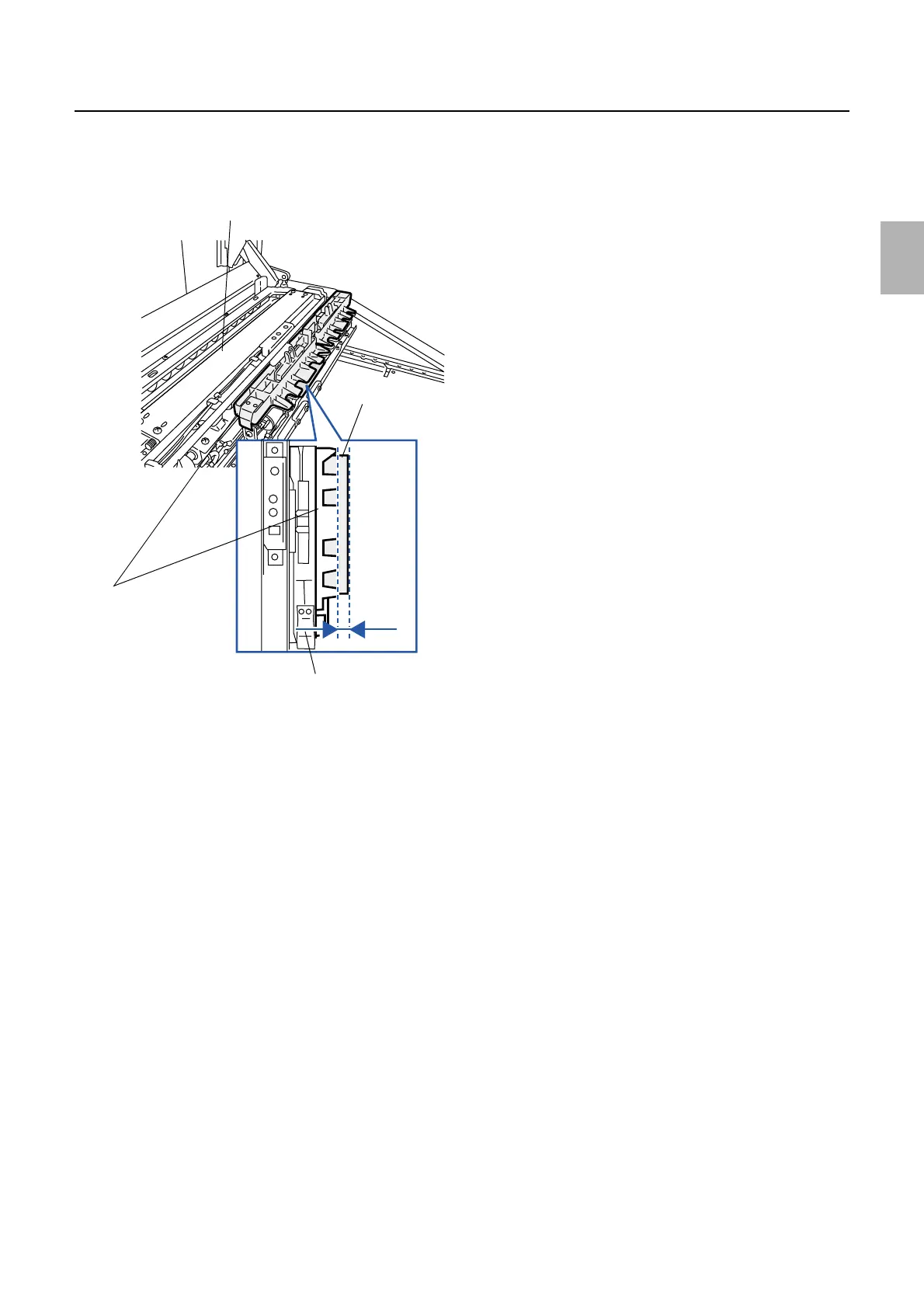

Confirm the dimension between the front ends of arm unit 2 and paper is from 3.0±0.5 mm.
3. If an adjustment is necessary, perform Paper Advance Unit Correction.
☞36010
3.0±0.5 mm
Paper advance unit 1
Arm unit 2
Paper
G068452
