Frontier LP7500 - Removing the Paper Advance Pressure Change Motors (Right and Left) and Adjusting the Pressure Timing for the Arm(S)

Paper advance unit 2
1/3
2. Replacement and adjustment of parts
26560
26560
Removing the paper advance pressure change motors (right and left) and
adjusting the pressure timing for the arm(s)
!
!!
! Procedure
1. Remove paper advance unit 2.
☞26550

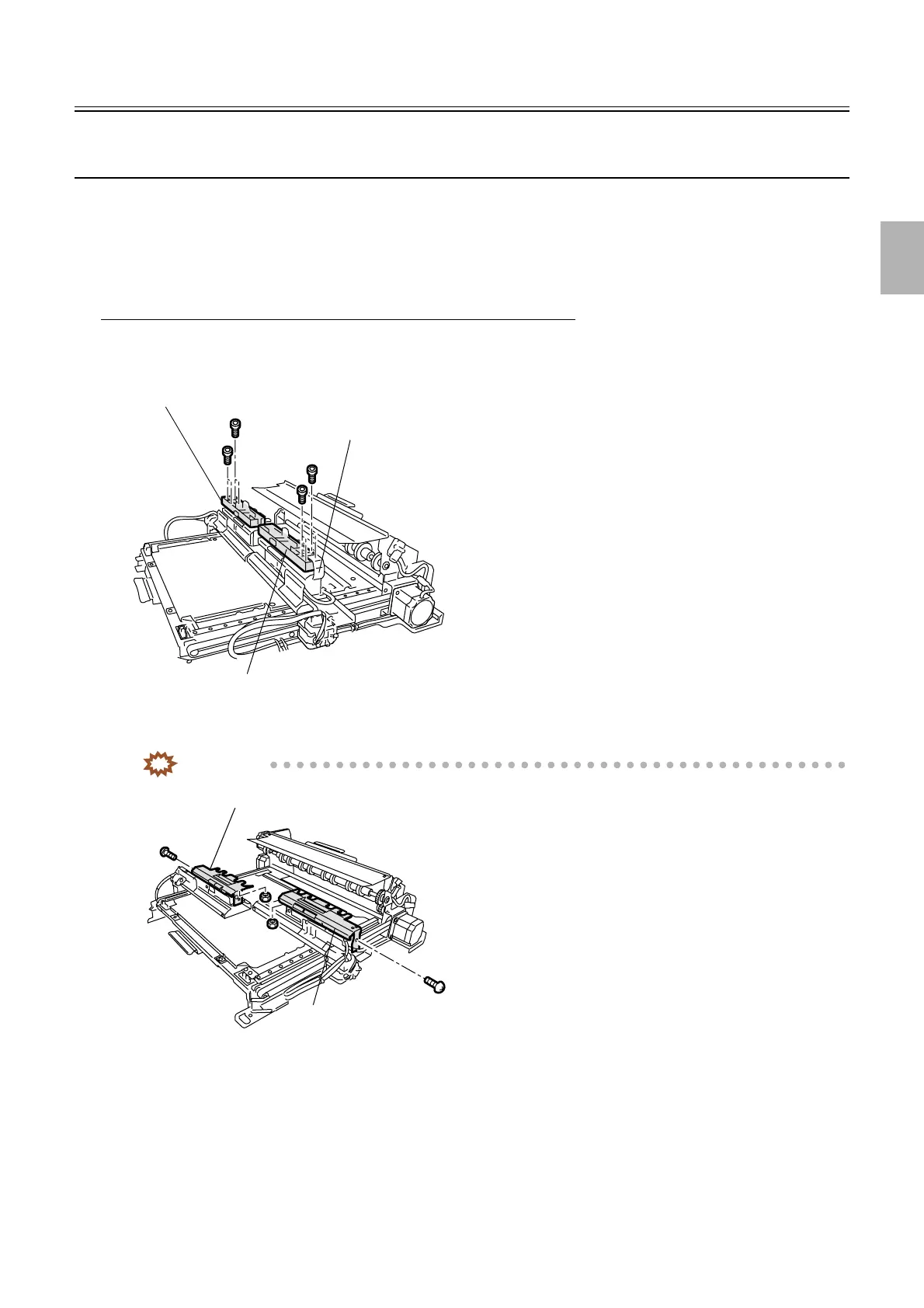

Removing the paper advance pressure change motors (right and left)
1. Remove the upper guide (right). (four screws, one plate)
2. Remove the upper guide (left). (four screws)
3. Remove the lower guides (right and left). (one screw and one nut each)
IMPORTANT
• If you remove the lower guides (right and left), adjustment will be needed.
Upper guide (right)
Upper guide (left)
Plate
G068549
Lower guide (left)
Lower guide (right)
G068550
