Frontier LP7500 - Paper Advance Unit 1; Removing Paper Advance Unit 1

Paper advance unit 1
1/4
2. Replacement and adjustment of parts
26510
26510
Paper ad vance unit 1
Removing paper advance unit 1
!
!!
! Procedure
1. Open the printer top cover.
2. Loosen screw(s) on paper advance unit 1. (Loosen four screws.)
3. Open paper advance unit 1.
4. Disconnect the connector(s).
J/P333 (Relay connector)
J/P334 (Relay connector)
5. Remove paper advance unit 1 in the arrow direction.

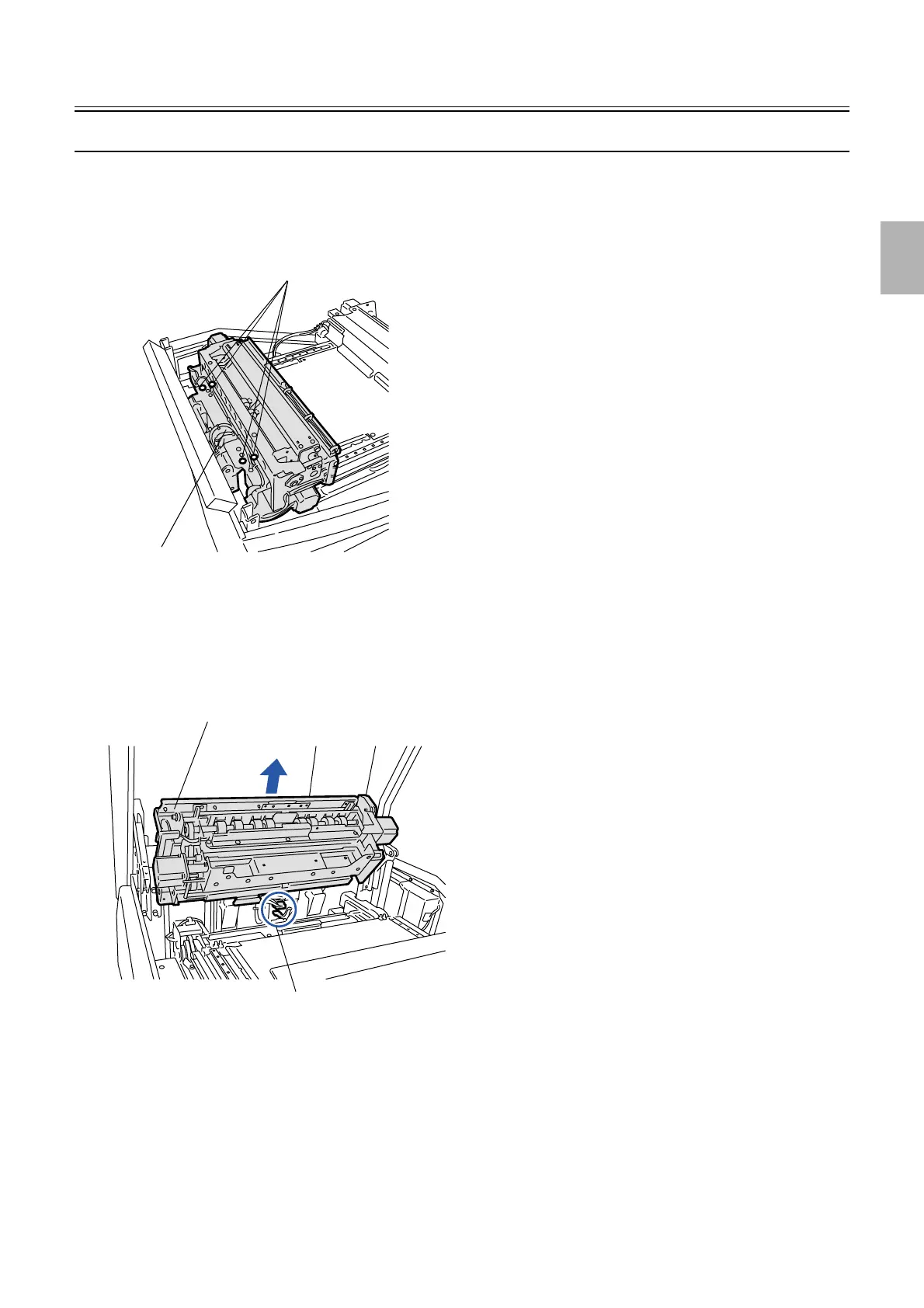

Paper advance unit 1
Loosen these screws.
G068506
Paper advance unit 1
J/P333 and J/P334
G068507
