Printer Mechanical Adjustment
1/3
3. Mode
36060
36060

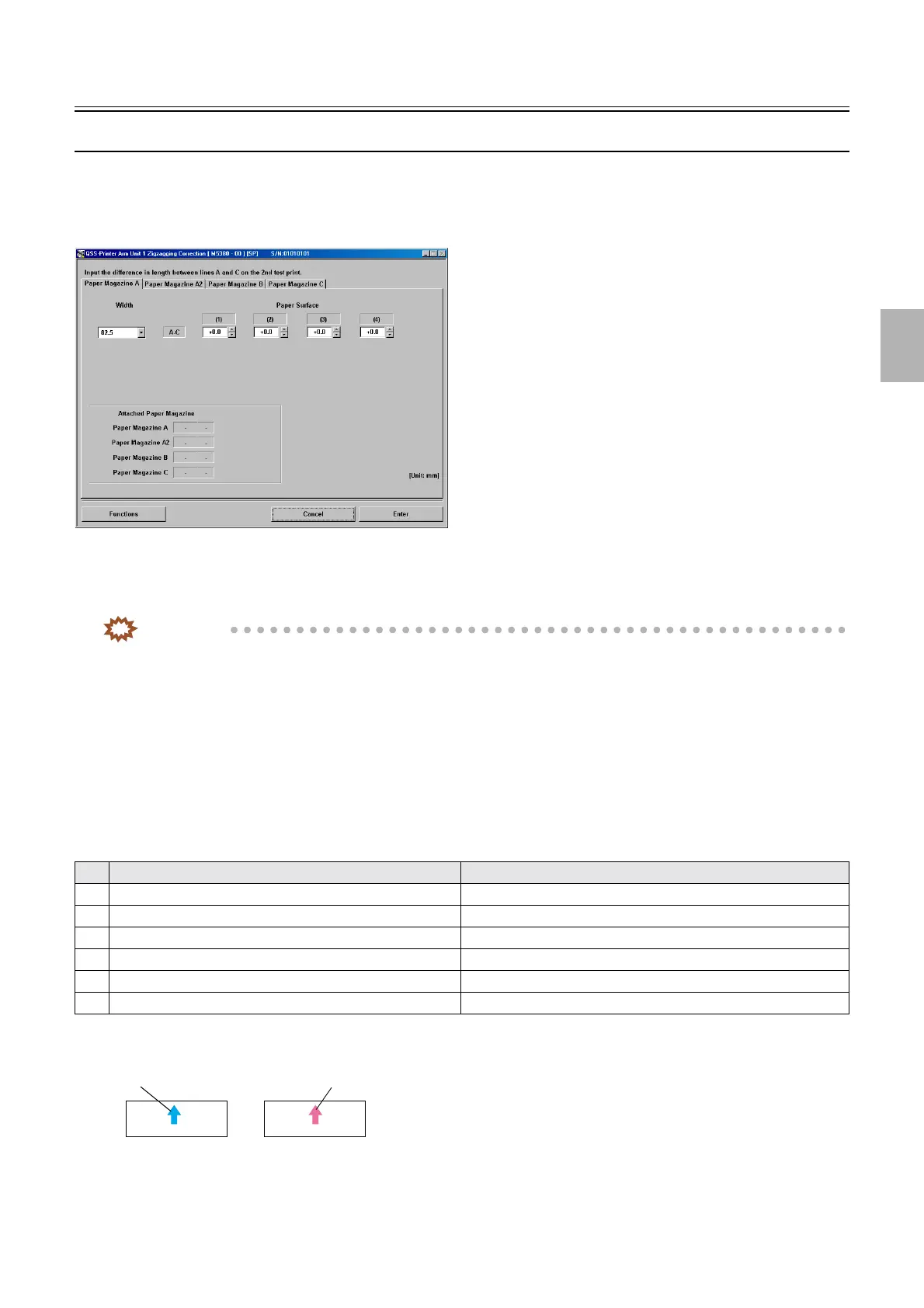

Arm Unit 1 Zigzagging Correction
Bringing up the display
Maintenance → Extension → Maintenance → Various Adjustment → Printer Mechanical Adjustment → Arm Unit 1 Zigzagging
Correction
!
!!
! Explanation
Correct if the image is exposed diagonally toward the paper because of the paper zigzagging.
IMPORTANT
• Perform arm unit 1 zigzagging correction for each paper magazine A, A2, B, and C.
• Perform the adjustments of all magazines to use for magazine mounts A, A2, B and C.
!
!!
! A − C (Initial value: 0.0 mm) (Input range: −2.0 to +2.0 mm)
The correction for each magazine (paper width and surface) is necessary.
!
!!
! Magazine A, Magazine A2, Magazine B, Magazine C
Paper magazine A/A2/B/C can be selected.
!
!!
! Functions
*1. A magenta arrow is shown on the Test Print Confirmation print.
The paper width, 〈A ###(#)〉 is printed in the CVP imprinting.
*2. The advance length of the test print is 457.0 mm.
*3. If the paper width is between 82.5 mm and 120 mm, two test prints whose advance length is 457.0 mm are output.
If the paper width is between 127 mm and 305 mm, two test prints whose advance length is 914.0 mm are output.
Functions Explanation
F Test Print 1 (Paper Magazine A/A2/B/C)
*2
The correction is invalid and two prints are output.
F Test Print Confirmation 1 (Paper Magazine A/A2/B/C)
*1*2
The correction is valid and two prints are output.
F Test Print 2 (Paper Magazine A/A2/B/C)
*3
The correction is invalid and two prints are output.
F Test Print Confirmation 2 (Paper Magazine A/A2/B/C)
*1*3
The correction is valid and two prints are output.
F Loading (Paper Magazine A/A2/B/C) The paper is loaded.
F Rewind (Paper Magazine A/A2/B/C) The paper which has been loaded is rewound.
S5380-00-UM01
Test print
Test Print (Confirmation)
G066121
