Frontier LP7500 - Replacing the Drum Drive Motor [J

Tablet replenishment section
1/2
2. Replacement and adjustment of parts
27630
27630

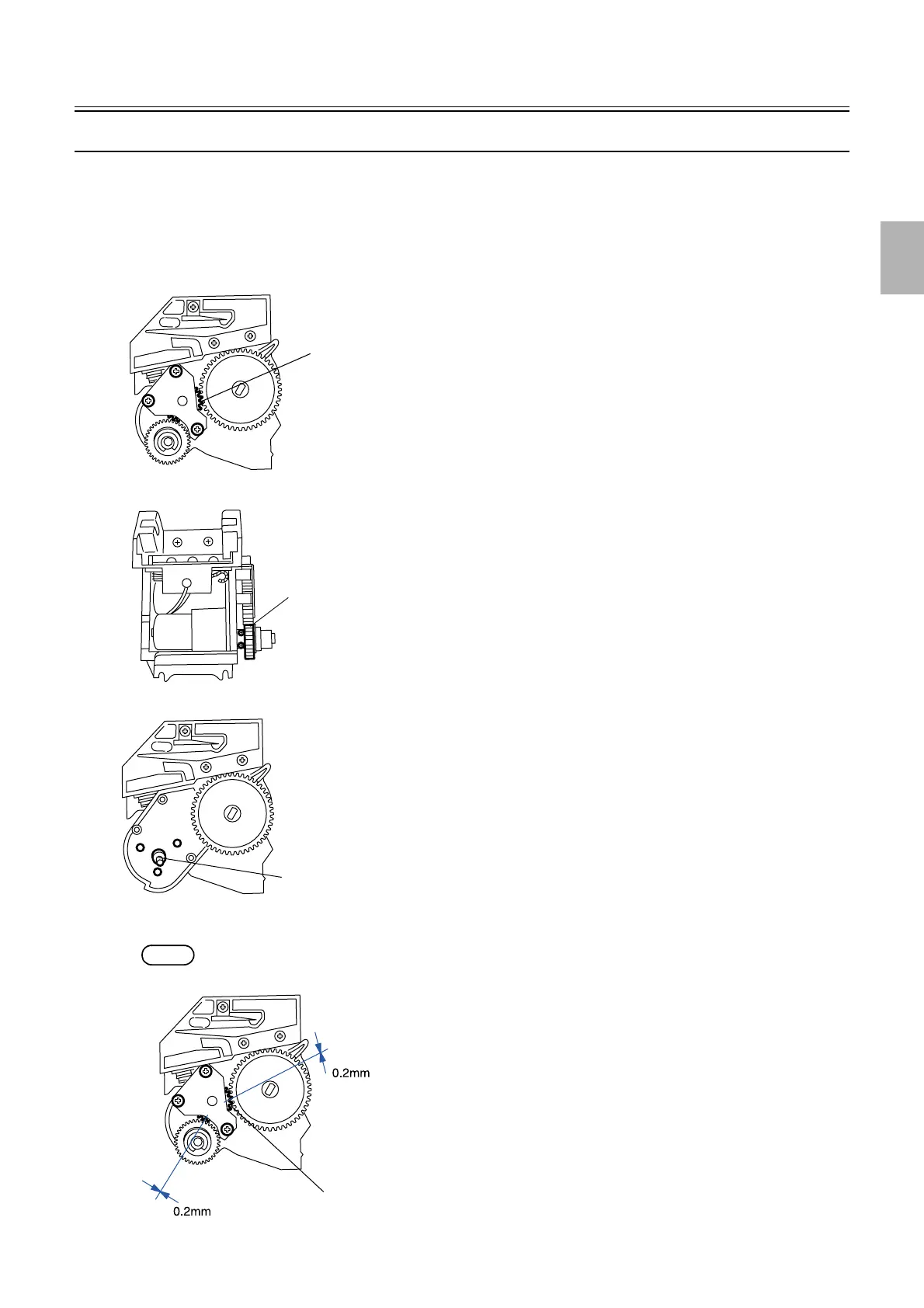

Replacing the drum drive motor [J]
!
!!
! Procedure
1. Remove the module.
☞27620
2. Remove the gear (32T).
3. Remove the drive gear. (two screws)
4. Remove the drum drive motor. (three screws)
5. Replace the drive motor and reassemble the parts.
NOTE
• When attaching the gear (32T), adjust the backlash by adjusting the attaching position of the gear (32T). (three screws)
Gear (32T)
G050712
Drive gear
G050713
Drum motor
G050732
Gear (32T)
G052554
