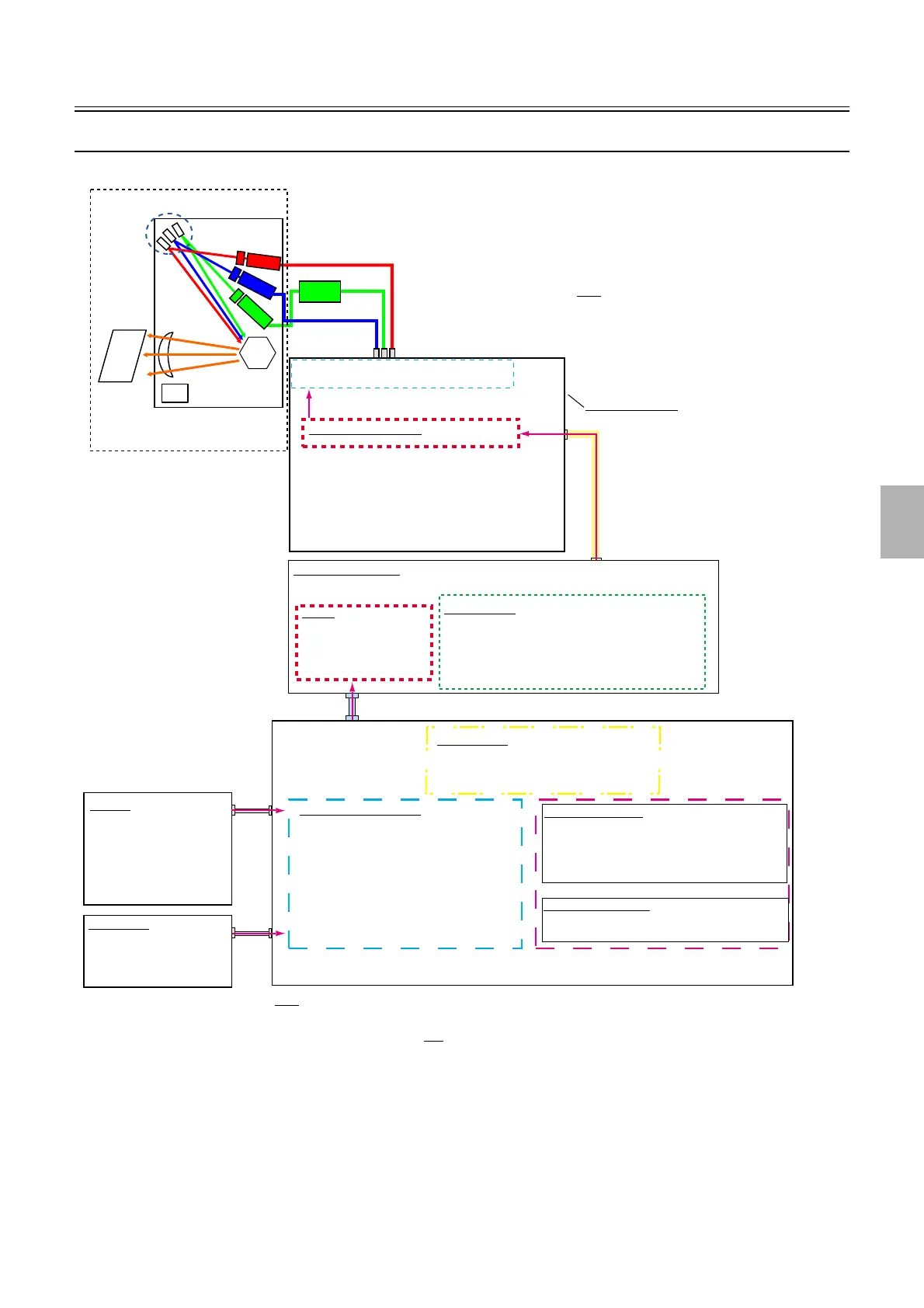

Data flow
1/1
5. Operation sequence
50710
50710
Data flow
B laser
G laser
R laser
G-AOM
driver
PC
Laser control PCB
Laser unit
Printer I/F main PCB
(PIC) or (EZ Controller)
• CMS process
• Cropping process
• Enlarging/reducing images
• Combining images
Flash memory
• L U T
• Correction Data for Brightness of the Edge of
Image Field
Printer profile
Buffer
• U p t o 4 M B
Scanner
• Scanning data
Input Media
• I m a g e d a t a
Buffer (up to 192 MB)
Note
• LUT and Correction Data for Brightness of the
Edge of Image Field are loaded to the laser
control PCB when the power supply is on.
A/D converter
LAN (8 bit) [Transfers the RAW file.]
LVPECL (Transfers the RAW file.)
Note
• On the FRONTIER-Printer, CMS process, rotation of images, and cropping process are performed
only when instructed by PIC
.
QSS-Printer software
FRONTIER-Printer
• CMS process
• R o t a t i o n
• Cropping process
G085222
