Frontier LP7500 - Printer I;O Pcb 2 (J)

Description of PCB (printer section)
1/1
6. Electrical parts
66030
66030

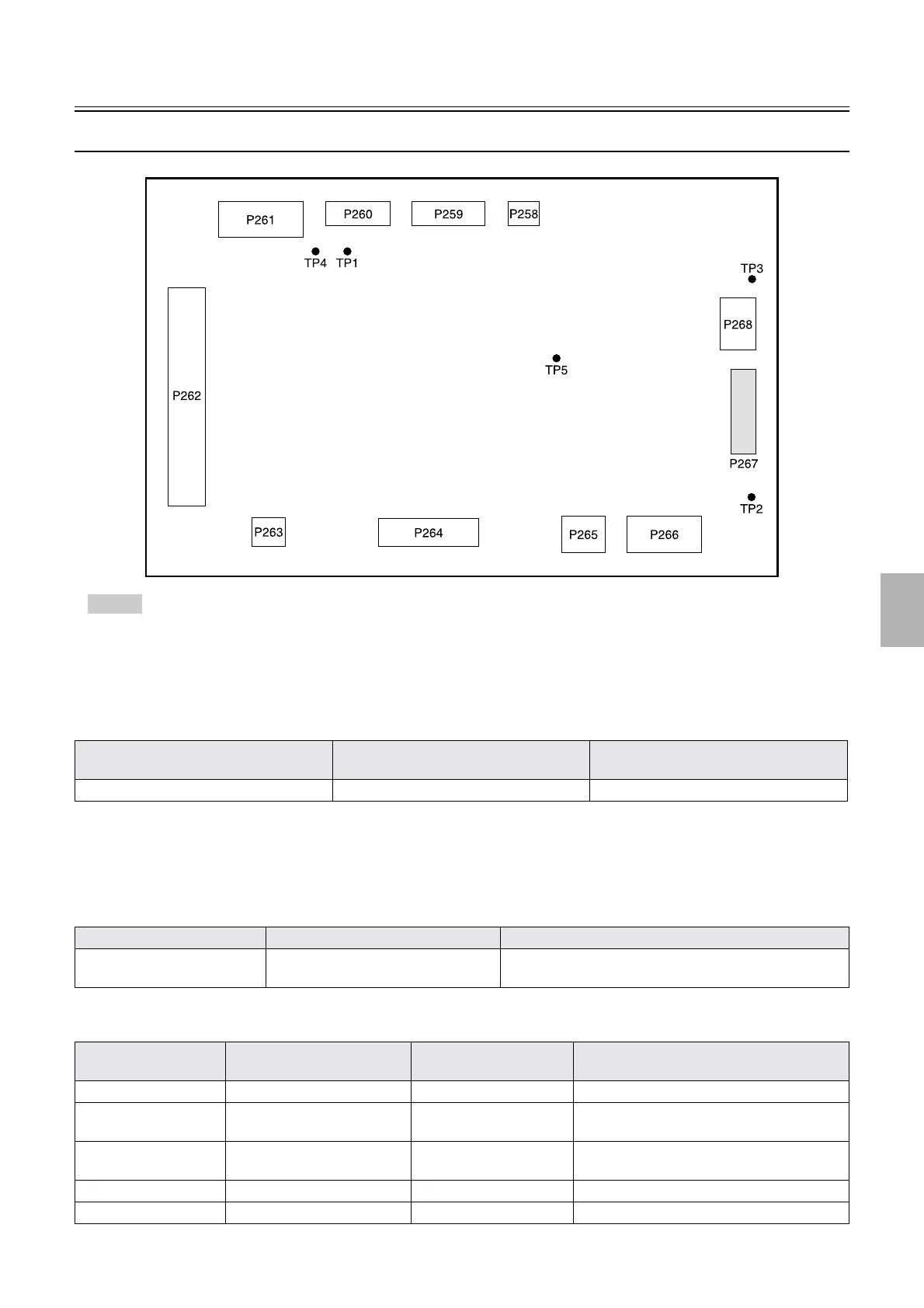

Printer I/O PCB 2 (J391256)
!
!!
! Function
• Controls the electrical parts of paper supply unit.
!
!!
! Reference
!
!!
! Adjustments and precautions for PCB replacement
• None
!
!!
! Unused connector
!
!!
! Component parts table
Layout diagram Symptom due to the poor connection of
wiring
Symptoms of fuse blowout
☞63000 ☞4202 -
Connector No. Purpose Remarks
P267 Triple magazine
Quad magazine
Option
Test point No. Purpose Measurement with
voltmeter
Remarks
TP1 DC+5 V voltage measurement Possible 0 V when interlock switch is off.
TP2 DC+36 V voltage
measurement
Possible 0 V when interlock switch is off.
TP3 DC+24 V voltage
measurement
Possible 0 V when interlock switch is off.
TP4 Ground Possible
TP5 Ground Possible
Unused depending on the conditions
G068358
