Adjusting belt tension
1/1
2. Replacement and adjustment of parts
20125
20125

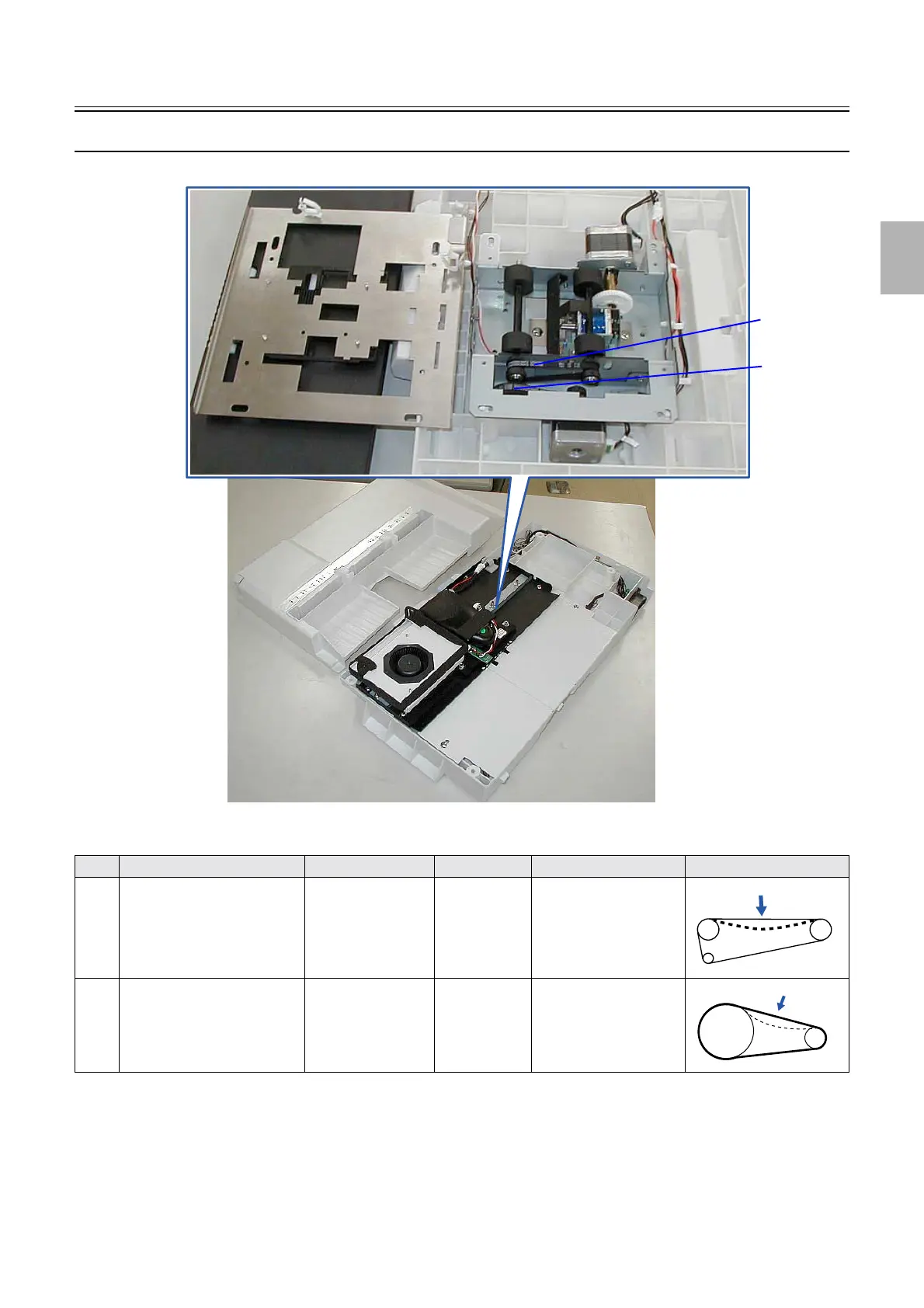

Adjusting the belt tension (colorimeter)
Colorimeter
No. Name Force Deflection Adjusting point Illustration
1 Paper advance motor belt 1 From 250 g to 300 g
(From 2.4 N to 3.0
N)
2.0 mm Attaching position of the
tension pulley
2 Paper advance motor belt 2 From 340 g to 400 g
(From 3.3 N to 4.0
N)
2.0 mm Attaching position of the
calibration plate advance
motor
2
1
G085256
