Paper advance operation
1/2
5. Operation sequence
55800
55800

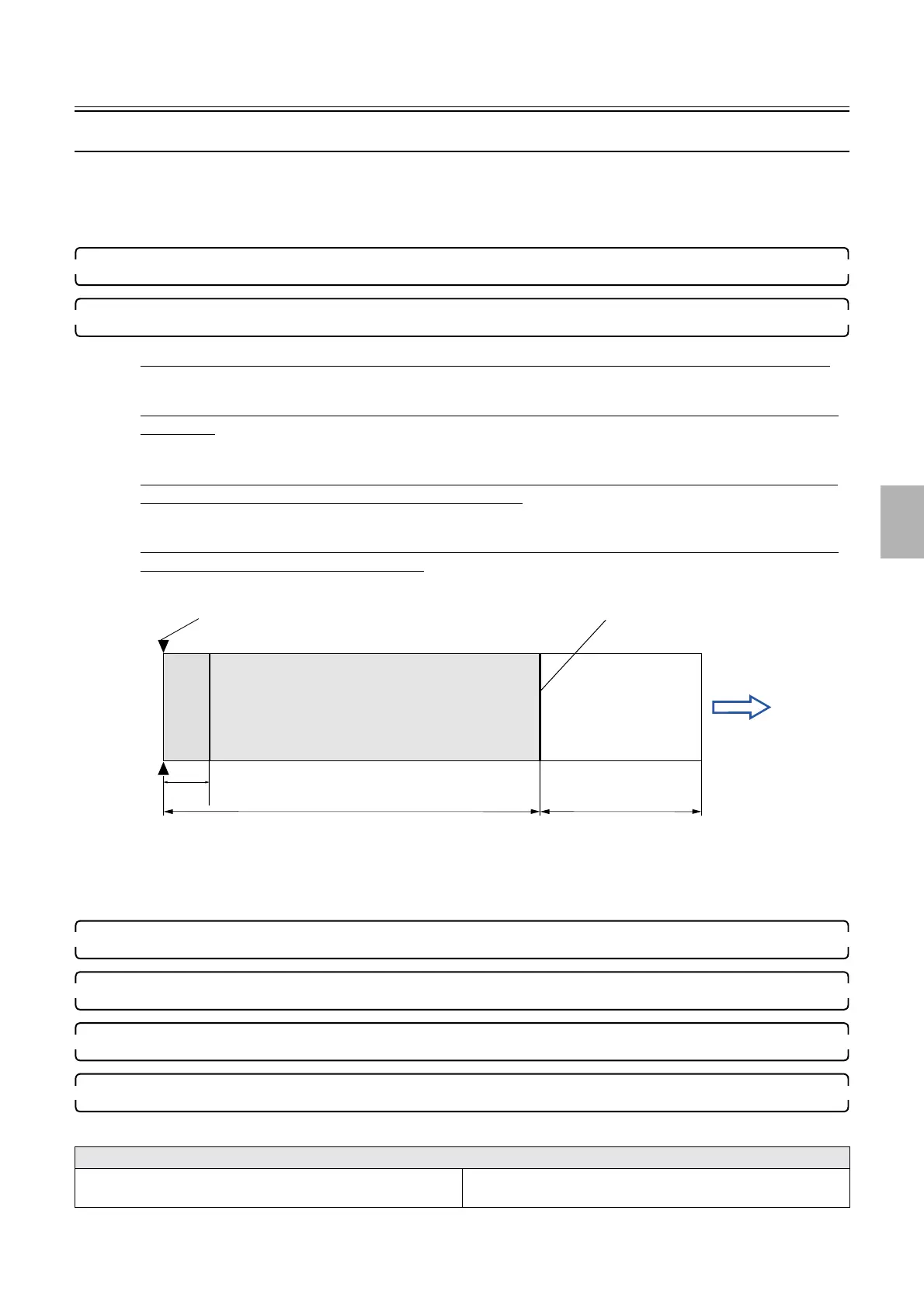

Paper end operation
This section explains the operation of paper end.
!
!!
! Flowchart
1. Paper is being processed.
2. The paper rear end passed through the paper end sensor.
When printable area is longer than the print setting advance length at the detection of the paper end.
• Proceed the operation.
When the length of printable + exposable area is shorter than the rest of print length at the detection of
paper end.
• The paper is not cut and the machine performs Step 5.
When the paper is in exposure and the length of printable + exposable area is equal to or longer than
the rest of the print length at the detection of paper end.
• Proceed the operation.
When the paper is in exposure and the length of printable + exposable area is shorter than the rest of
print length at the detection of paper end.
• The operation goes on but the print need to be made again.
3. The paper is advanced to the cut position.
4. Paper cut ☞ 55100☞ 55200
5. Advance all the paper to the exposure section.
6. The paper end processing is complete.
Error
• No. 01000, No. 01085, No. 01103, No. 01107
The Paper Magazine is out of paper. Paper Magazine A
• No. 01001
The Paper Magazine is out of paper. Paper Magazine B
Lane B: 174.9 mm
Lane A: 198 mm
Cut-forbidden area
Printable area
Paper advance direction
Paper cut position
Paper end sensor
Lane C: 174.9 mm
Exposable area
30 mm
Lane A2: 198 mm
G058720
