Order sorter section
1/3
2. Replacement and adjustment of parts
27430
27430

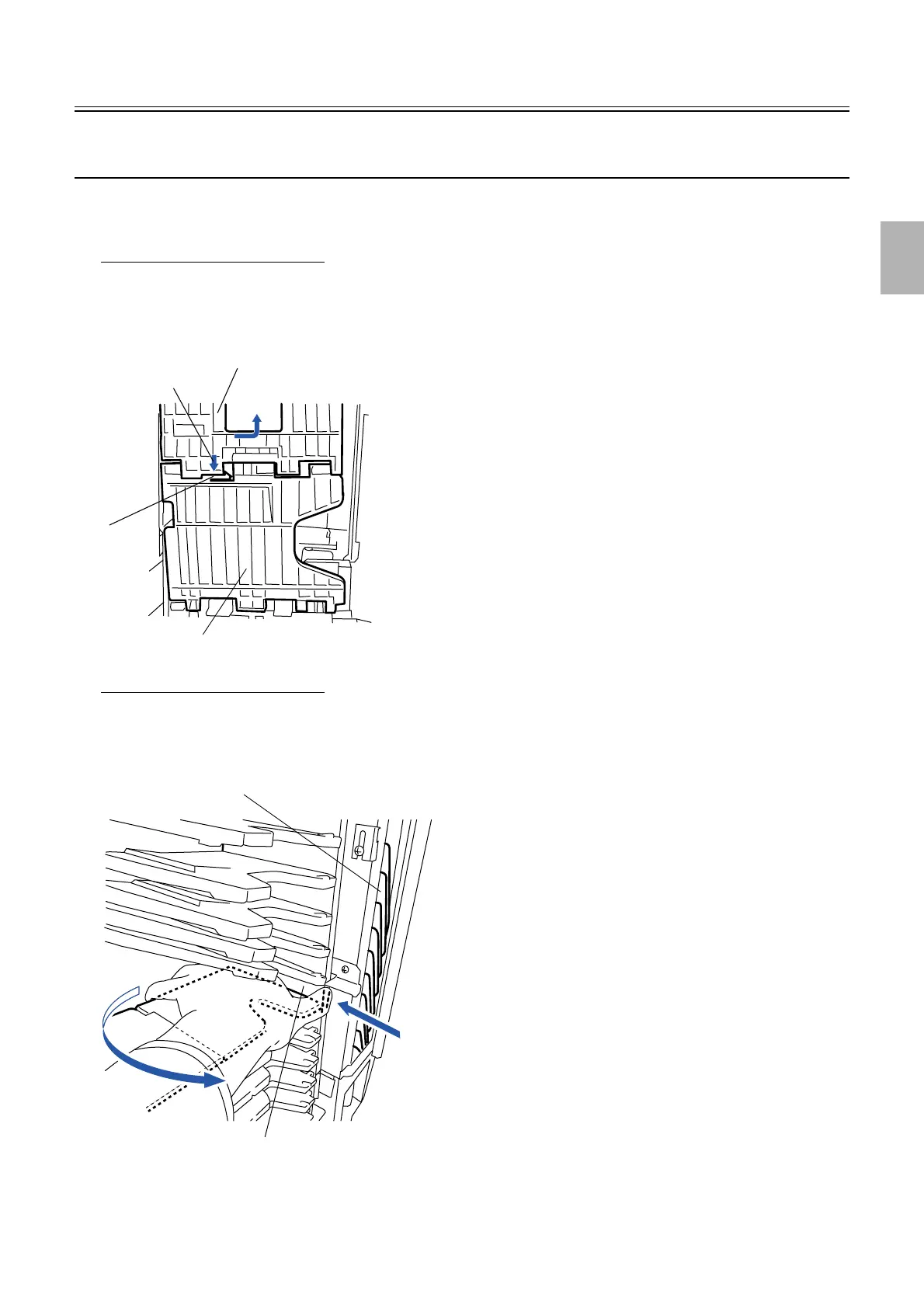

Replacing the print receiving tray [Print sorter unit (6-inch type, 17/14
orders)]
!
!!
! Procedure
Replacing print receiving tray (1)
1. Stop the print receiving tray to be replaced at the print receiving position.
2. Push the pawl of the print receiving tray (2) in the direction indicated by arrow A, then remove the print
receiving tray (1) in the direction indicated by arrow B.
Replacing print receiving tray (2)
1. Move the print receiving tray to be replaced to the intermediate position.
2. Press the end of receiving tray (3) with your thumb, and remove receiving tray (2) in the direction
indicated by the arrow.
Print receiving tray (2)
Pawl
B
A
Print receiving tray (1)
G050796
Print sorter unit
Print receiving tray (3)
G052543
