Order sorter section
1/2
2. Replacement and adjustment of parts
27410
27410
Orde r sorter sectio n
Adjusting the stop position of the print receiving tray [Print sorter unit (6-
inch type, 17/14 orders)]
!
!!
! Procedure
1. Remove the sorter cover.
☞20020
2. Loosen one screw on the sensor holder. Then adjust the stop position of the print receiving tray by
moving the sensor holder up and down.
3. Adjust the sorter home sensor holder position to stay the print receiving tray at the position dimension A
up from the top of receiving tray rail.
NOTE
• Dimension A=2 ± 1 mm

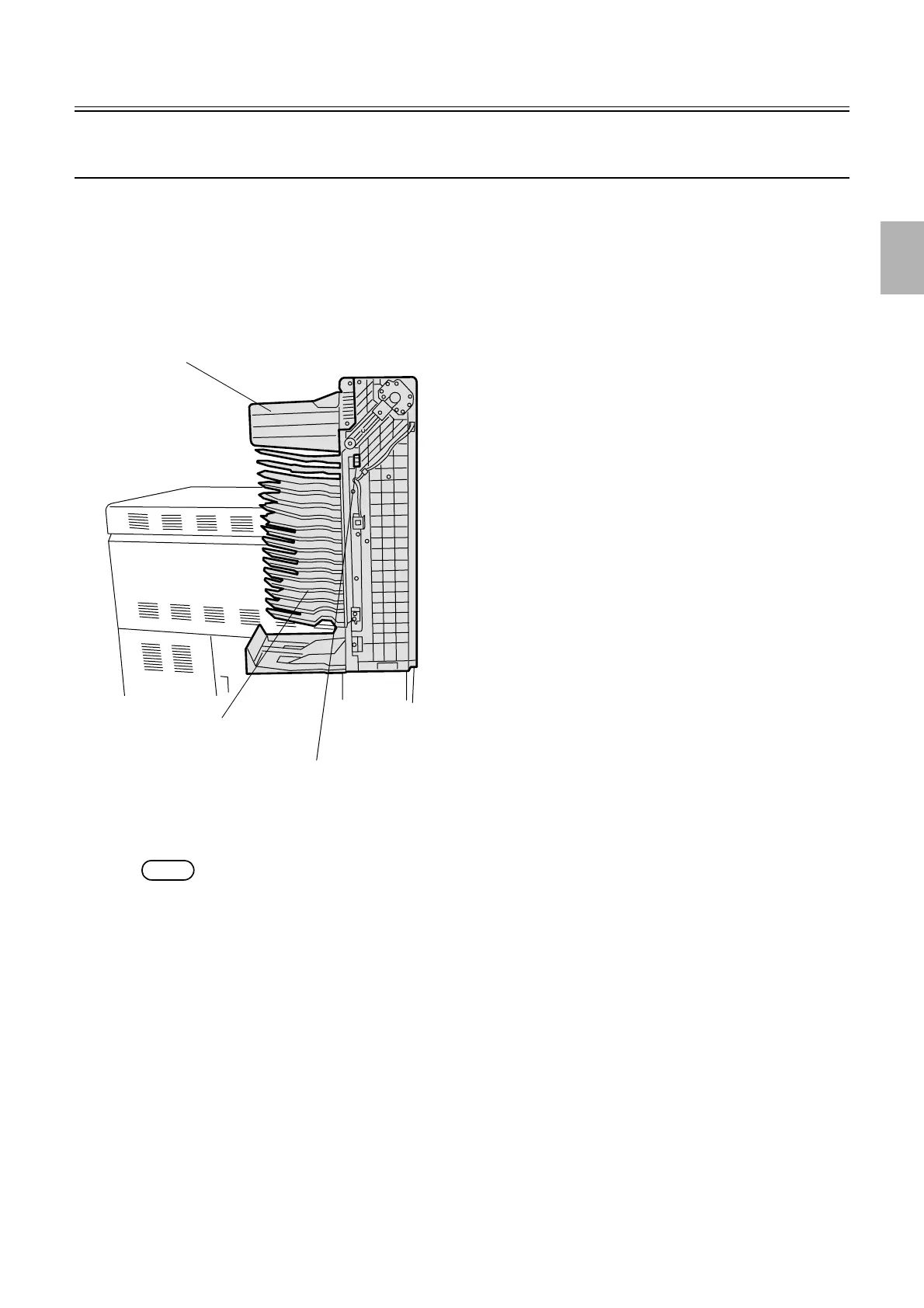

Print receiving tray
Sorter home sensor holder
Print sorter unit
G050752
