Paper advance operation
1/3
5. Operation sequence
55200
55200
Paper supply unit operation (the paper advance length is 165.5 mm or less)
• This section explains how arm unit 1 of the paper supply unit advances the loaded paper to the exposure advance unit.
• The advance operation (paper supply unit operation) varies depending on the paper advance length.
!
!!
! When the paper advance length is 165.5 mm or less
1. Arm unit 1 pressures the loaded paper.
• Paper hold motor: ON (pressured)/OFF
When the paper hold sensor does not turn dark:
• ☞ No. 06101-00001
Paper Hold Motor operation error.
2. Arm unit 1 advances paper to the exposure advance unit.
• Paper supply arm motors (right and left): ON (forward)/OFF
• Paper magazine motor A/A2/B/C: OFF
• Paper supply motor A/A2/B/C: OFF
• Paper advance motor 1: ON
When zigzagging correction sensors (right and left) do not turn dark:
• ☞ No. 06135-00001
Arm Unit 1 operation error.
IMPORTANT
• Arm unit 1 advances the paper at the same speed of loading until the paper passes through the paper
advance rollers.
Reference
• When the paper advance length is 165.5 mm
or less
☞55200 • When the paper advance length is between
395.6 mm and 466.5 mm
☞55220
• When the paper advance length is between
165.6 mm and 392.5 mm
☞55210 • When the paper advance length is 466.6 mm
or more
☞55230

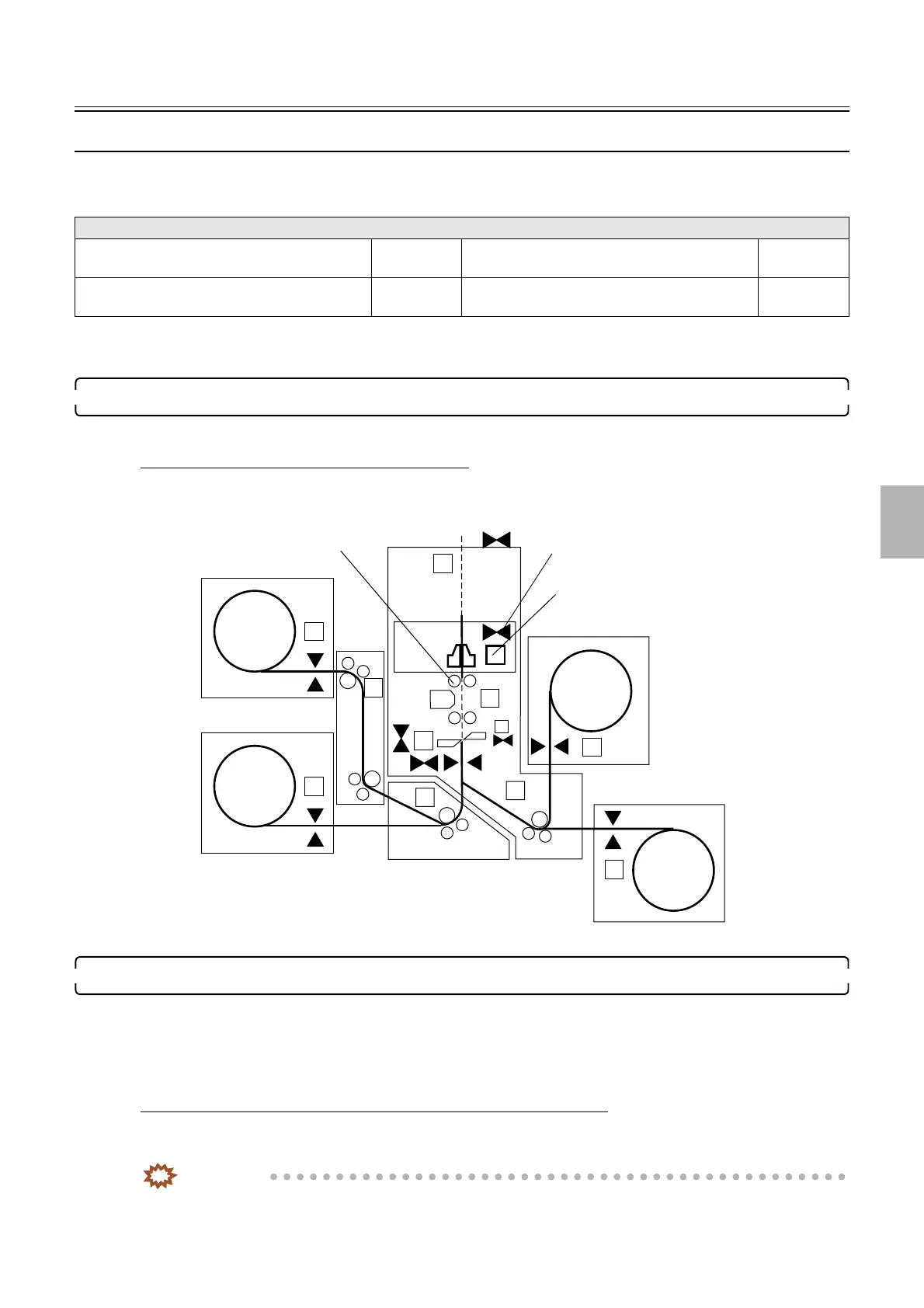

Note: The thick solid line indicates the paper.
Paper hold motor
Paper hold sensor
Paper advance rollers
G068490
