6. Electrical parts
63311-5
4/7
63311-5

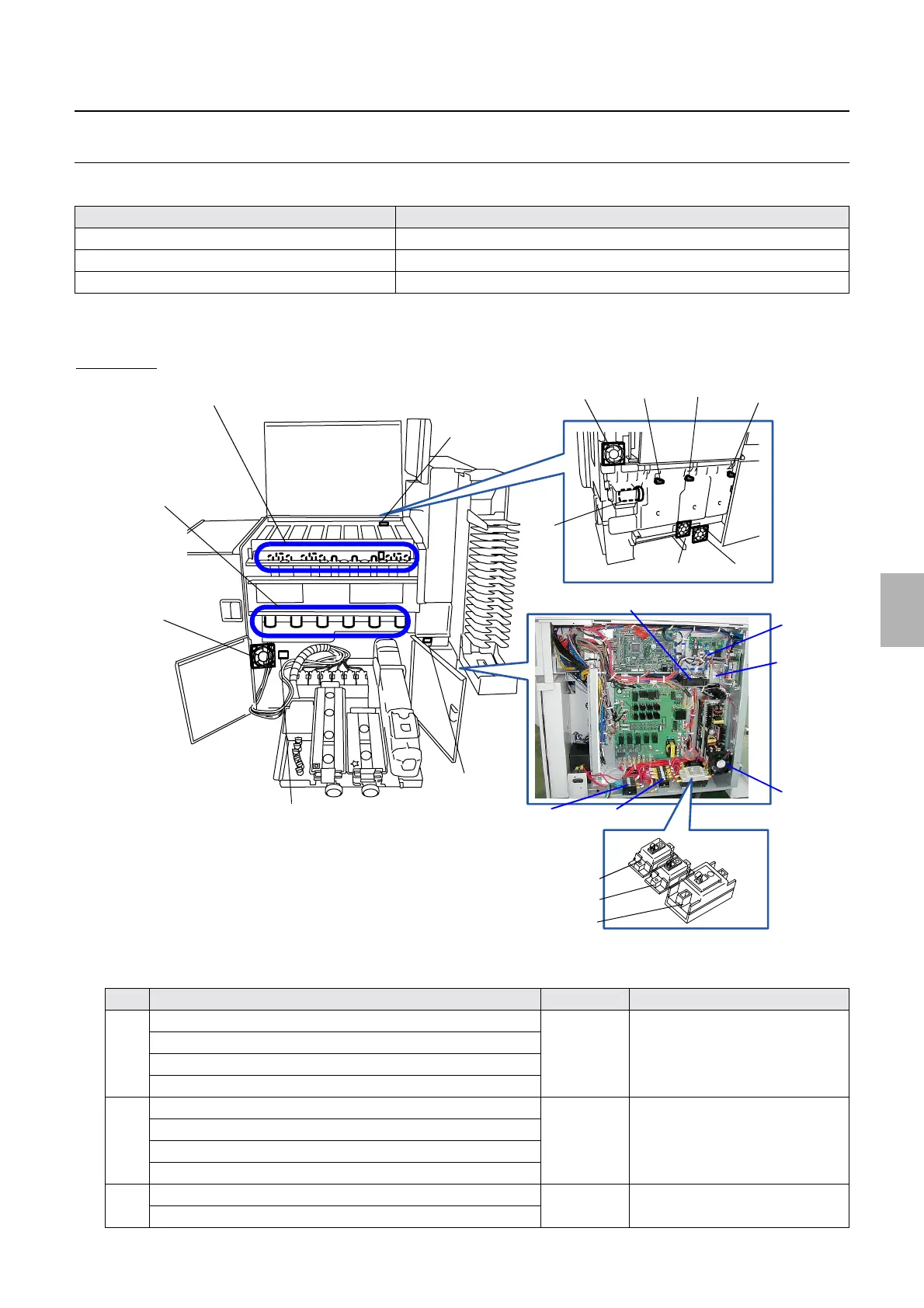

Positions of electrical parts (Processor section)
Processor section (positions of electrical parts) (QSS-3704) [SM]
This item varies depending on the specification and model. See the references below.
!
!!
! Layout diagram
Processing tank section
Model Reference
QSS-3704/3705/LP7700/LP7900 [F]
☞63311
QSS-3704/3705 [N] ☞Processor section (positions of electrical parts) (QSS-3704/3705) [N]
QSS-3701/3702/3703 [SM] ☞ 63300
No. Name Symbol Remarks
1 CD processing solution float switch FS1
CD refilling water level
CD processing solution level
CD safety thermostat
2 BF processing solution float switch FS2
BF refilling water level
BF processing solution level
BF safety thermostat
3 STB1 processing solution float switch FS3
STB1 refilling water level
15
34
19
33
From 24 to 29
11,30,1,12,31,2,3,4,5,14,13,32,6
18
9
8
7
21
20
16
23
17
22
35
36
37
38 39
40
QSS-3704 [SM]
G085384
