Exposure advance unit
1/6
2. Replacement and adjustment of parts
25830
25830

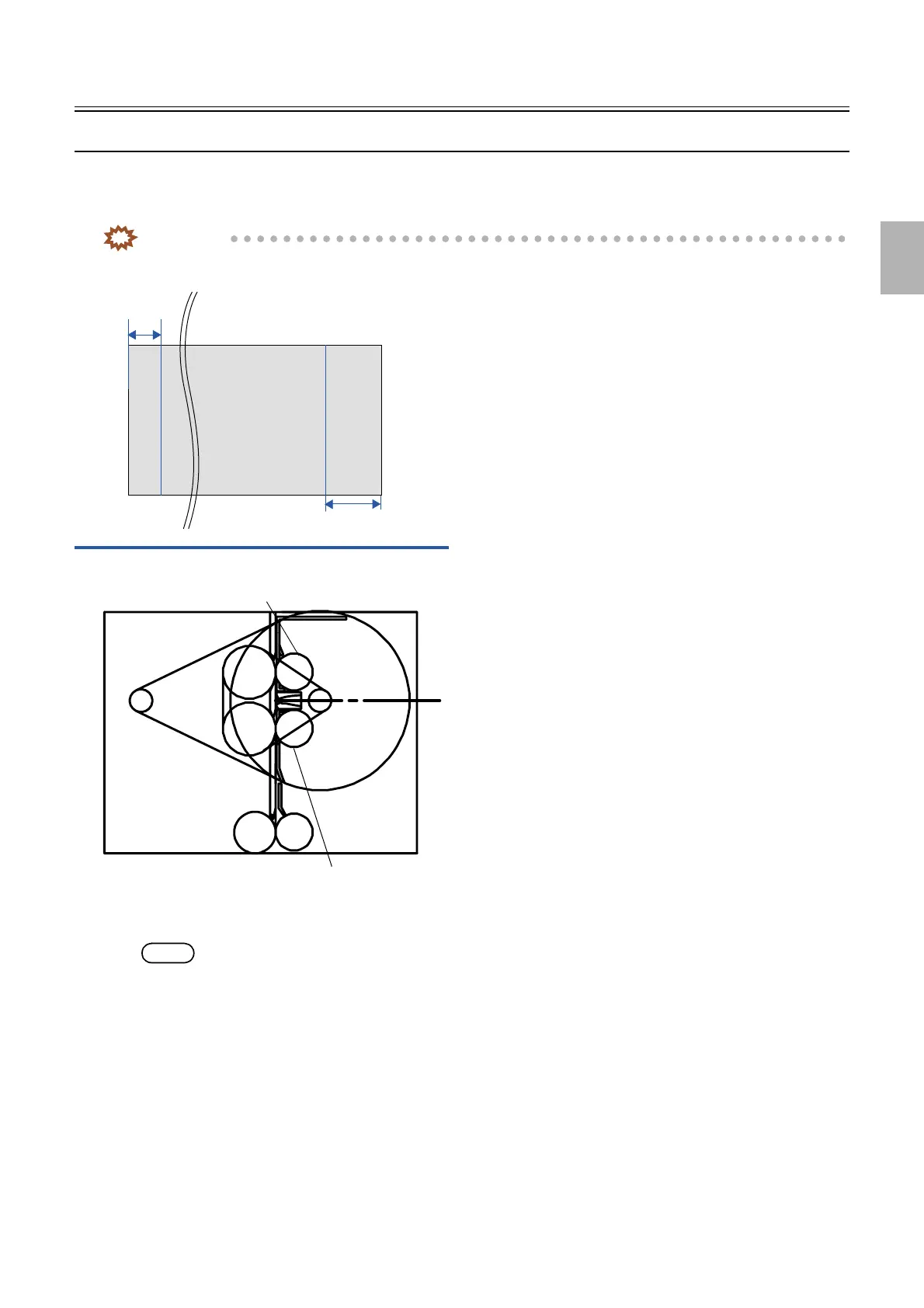

Banding adjustment for the exposure advance unit
!
!!
! Procedure
IMPORTANT
• Banding adjustment for the exposure advance unit needs to be performed when the banding is found at the area 32
mm from the paper leading end or 24 to 27 mm from the paper rear end.
1. Make some prints of gray prints in the Print mode.
NOTE
• Any paper size is acceptable.
2. When the banding is found at the area 32 mm from the paper leading end, adjust the pressure of the
pressure roller at the exit side in the exposure advance unit.
☞ The banding at the area 32 mm from the
paper leading end
3. When the banding is found at the area 24 to 27 mm from the paper rear end, adjust the pressure of the
pressure roller at the inlet side in the exposure advance unit.
☞ The banding at the area 24 to 27 mm
from the paper rear end
4. If the banding is found at the area that is not mentioned above, perform adjustment referring the
banding shooting.
☞25910
Rear end
Leading
end
32 mm
24 to 27 mm
Pressure roller at the inlet
side
Pressure roller at the exit side
Exposure advance unit
G072396
