Frontier LP7500 - Replacing the Replenishment Cartridge Opening Motor [F]

F replenishment unit [F]
1/2
2. Replacement and adjustment of parts
27520
27520
Replacing the replenishment cartridge opening motor [F]
!
!!
! Procedure
1. Remove the F replenishment unit.
☞27500
2. Remove the replenishment cartridge setting section.
☞27510
3. Remove the replenishment cartridge opening motor. (three screws)
4. Remove the plate (three screws) on the replenishment cartridge opening motor and gear (one screw).

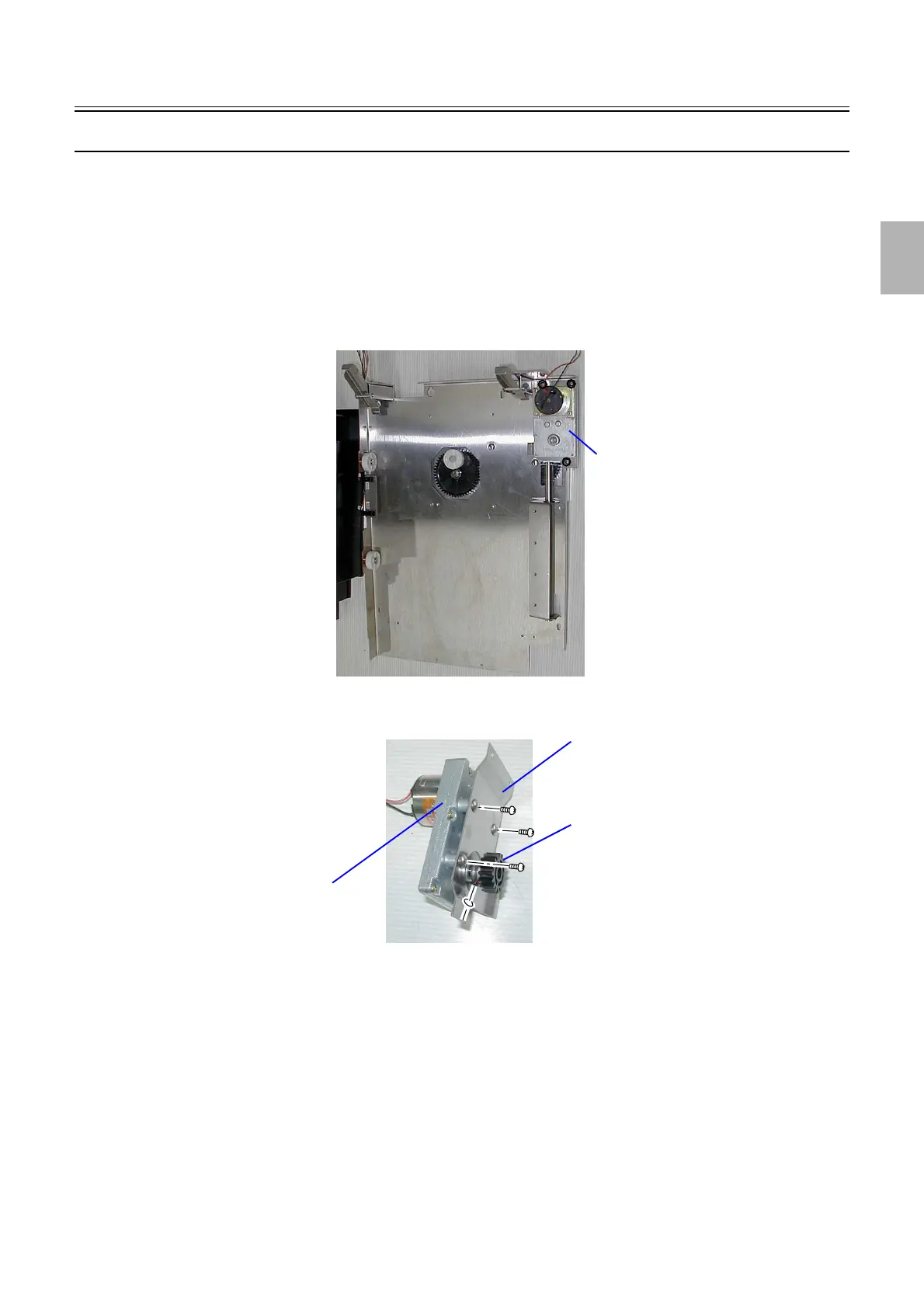

Replenishment cartridge opening
motor
G085858
Plate
Gear
Replenishment cartridge opening
motor
G085859
