Paper advance operation
1/1
5. Operation sequence
55700
55700
Paper splice detection operation
This section explains operations performed when the loading sensor detects a paper splice during printing process.

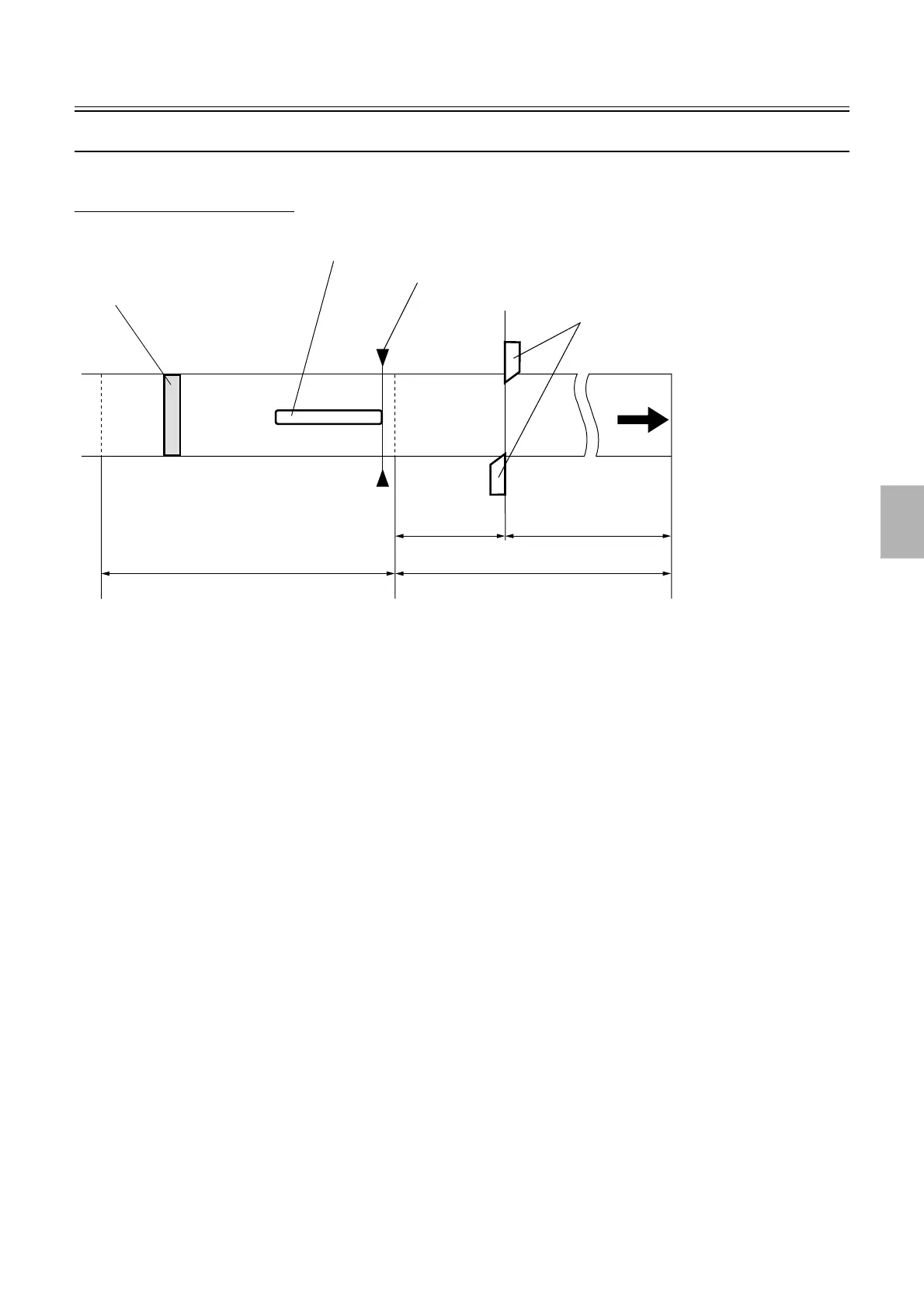

Splice (hole) detection condition
• X = Paper length out the paper cutter
• Y = Paper length between the leading end of the cut prohibited area and the cutters
!
!!
! Operation outline:
!
!!
! Condition 1: When the loading sensor detects a splice (hole) and the length of the exposable area is
the print advance length or longer (X + Y = Print advance length, or X + Y is longer than the print advance
length)
1. Loads the paper so that X is the same as the print advance length and cuts it, then performs printing
operation.
2. Loads the splice and cuts it, then feeds the paper to the processor.
(Splice length = Cut prohibited area + Y mm)
!
!!
! Condition 2: When detecting a splice section (hole) with the loading sensor and the dimension of the
exposure capable area is less than the print advance length (Print advance length is longer than X + Y)
1. Loads the splice and cuts it, then feeds the paper to the processor.
(Splice length = Cut prohibited area + X + Y mm)
Splice
Paper loading sensor (SE7)
Splice hole
Cut prohibited area (228.1 mm)
Exposable area
Paper cutters
Paper advance direction
XY
G074573
