Tablet replenishment section
1/2
2. Replacement and adjustment of parts
27660
27660

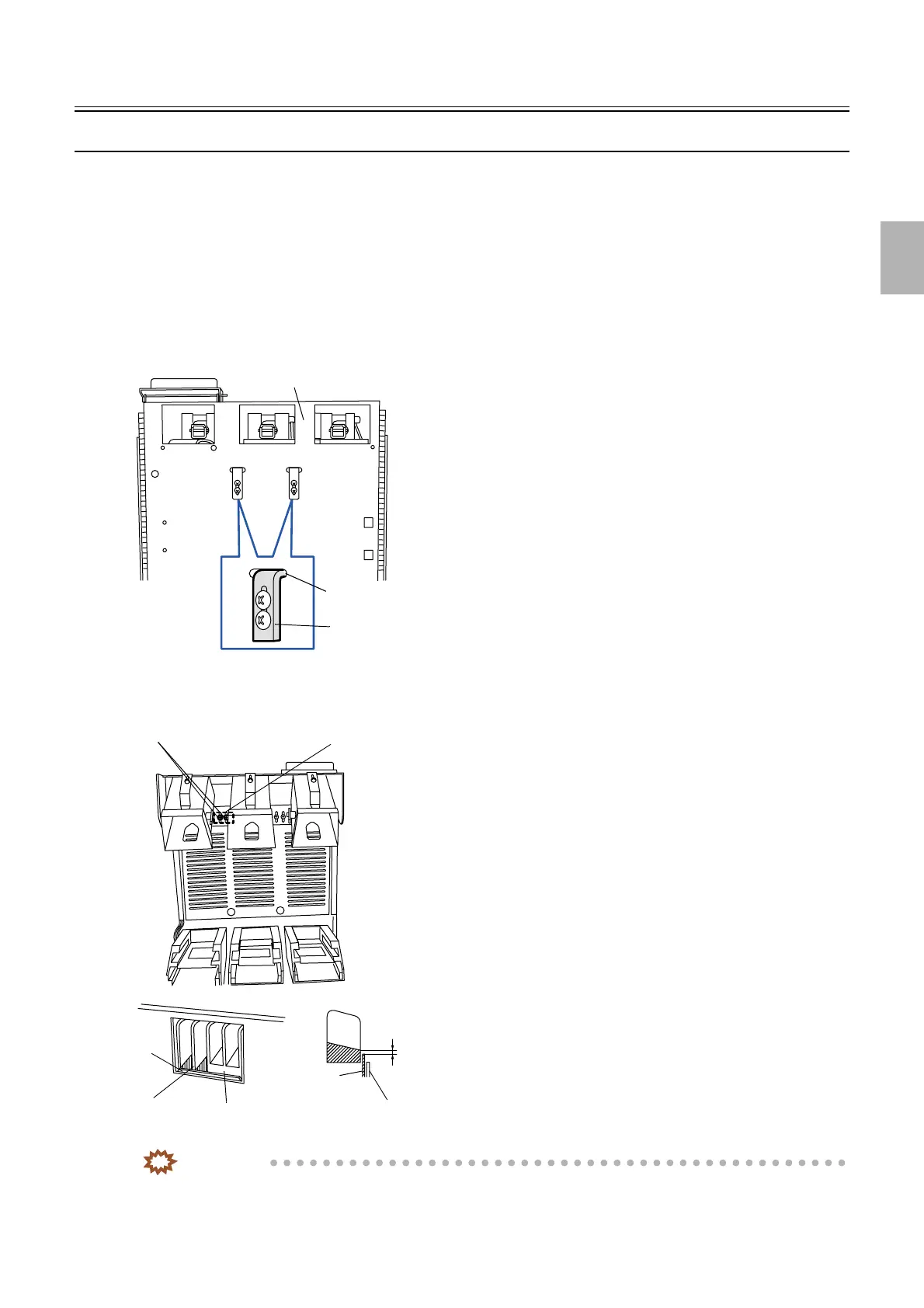

Adjusting the position of the elevator upper sensor [J]
!
!!
! Procedure
1. Remove all the tablet cartridges.
2. Remove the tablet replenishment unit section cover. ☞ 20020
3. Check that the stopper contacts with the upper of the slot.
" Point
If the stopper does not contact with the upper of the slot, open the tablet replenishment unit and then adjust the position of the
stopper. (Loosen two screws for each.)
4. Adjust the position of the elevator upper sensor so that clearance between the lowest bottom of bucket
platform and tablet gate is 1.5 mm±0.5 mm when the elevator is stopped at the position where the
elevator upper sensor is closed via Output Check. (two screws)
IMPORTANT
• Stopping the elevator at the elevator upper sensor position
1. Select Tablet Replenishment Section 1 on the Output Check.
Oval hole
Stopper
Tablet replenishment unit
G050741
Bottom of the
bucket
platform
Bucket platform
Tablet gate
1.5±0.5 mm
Tablet gate
Tablet
replenishment unit
Screws
Elevator upper sensor
G050742
