Replenishment package unit
1/4
2. Replacement and adjustment of parts
27810
27810
Reple nishment packag e unit
Replacing the replenisher pump and the water supply pump [SM]
!
!!
! Procedure
1. Pull out the replenishment package unit.
2. Remove the replenishment packages.
3. Remove the pump mount.
4. Close the strainer unit valve of the pump to be replaced.
5. Attach the tube clamps to the OUT side of the hoses of the pump to be replaced.
6. Loosen the wire bands on the caps of the pump to be replaced, and then remove the hoses.
IMPORTANT
• For the replenisher pumps of CD-A, CD-B, CD-C, BF-A, BF-B and STB, do not remove the new caps from the
pumps. If they are removed, the poppet valves may come off. Then the pump output amount indicated on the
rating plate will not be determined properly.
• Be careful not to let the pump rotating part come into contact with chemical or water.

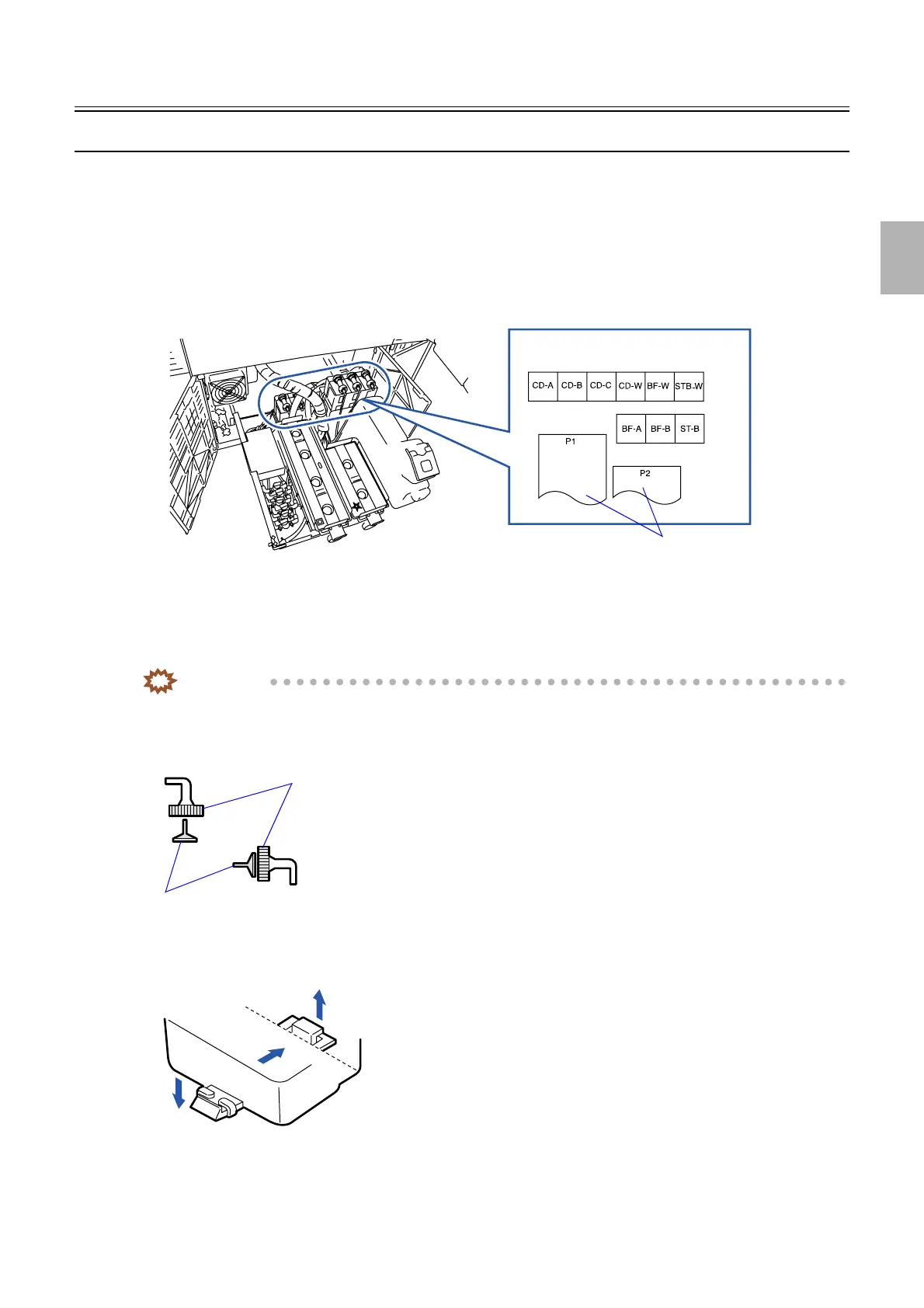

7. Remove the pump as shown in the figure.
Tray units
Arrangement of the replenisher pump and the
water supply pump
G070020
OUT
Poppet valves
Caps
(Do not remove this.)
IN
G050887
3. Lift it up.
2. Push the main body backward.
1. Push.
G050874
