2. Replacement and adjustment of parts
27810
2/4
27810
Replenishment package unit
8. Remove the cover from the removed pump.
9. Take a note of the output amount displayed on the new pump's rating plate.
Any pumps with false output measurements must be replaced.
10. Unplug the connectors, and replace the pump.
J/P611, cord CD-A: CD-A replenisher pump
J/P612, cord CD-B: CD-B replenisher pump
J/P613, cord CD-C: CD-C replenisher pump
J/P617, 618: CD-W water supply pump
J/P614, cord BF-A: BF-A replenisher pump
J/P615, cord BF-B: BF-B replenisher pump
J/P616, cord STB: STB replenisher pump
J/P619: STB-W water supply pump
Cord BF-W: BF-W water supply pump
11. Reassemble the parts.
12. Enter the output amount.
Bringing up the display
Extension → Processor Settings → Pump Output Amount Setting
Setting for CD-A, CD-B, CD-C, CD-W, BF-A, BF-B and STB
Enter the output amount noted in step 9.
☞33003
Setting for BF-W and STB-W
Set pump output amounts, and then enter the measurement values.
!
!!
! Adjustment after replacement
1. Remove air from the replenisher pump and the water supply pump (except BF-W and STB-W).
IMPORTANT
• If air remains in the pump, output cannot be performed accurately.
• If a large amount of air remains in the pump, the chemical may undergo oxidation, and precise values may not
be obtained because air escapes during the measurement.
(1) Remove the sub-tank top cover and processor cover 1.
☞20020
(2) Fix the replenisher pipe and the water supply pipe in place.
Remove the replenisher pipe and the water supply pipe from the sub-tank and turn them so that the outlets face toward
you, and fix them at the position.
NOTE
• Fix the replenisher pipe and the water supply pipe at the same height as when the system is operating. When the
output amount is measured, the pipes should be secured to obtain correct values.

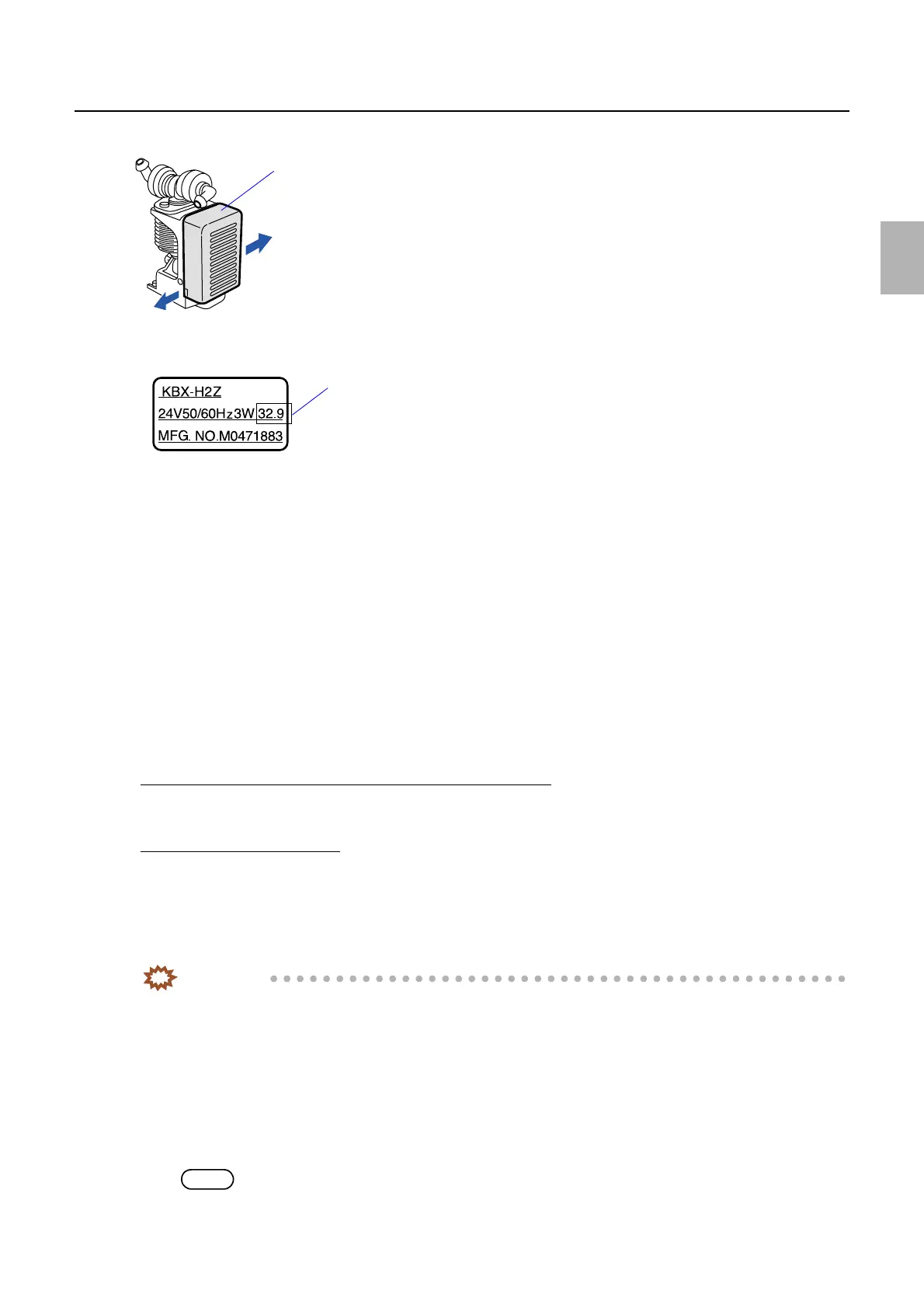

Lift up the cover holding the part
indicated by the arrow.
Cover
G050875
Rating plate
Output amount
G050888
